LPRC300
User Manual
LPRC300
Date: May 2021
Doc Version: 1.0
English
Thank you for choosing our product. Please read the instructions carefully
before operation. Follow these instructions to ensure that the product is
functioning properly. The images shown in this manual are for illustrative
purposes only.
P a g e
| 1
For further details, please visit our Company's website
www.zkteco.com.
Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPRC300 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZKTeco LPRC300

  • Page 1 Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com. P a g e Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 2 Copyright © 2021 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
  • Page 3 LPRC300 User Manual relating to the use of the information contained in or referenced by this manual, even if ZKTeco has, of the possibility of such damages. This manual and the information contained therein may include technical, other inaccuracies or typographical errors.
  • Page 4 User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.
  • Page 5 The general information which helps in performing the operations faster. The information which is significant. Care taken to avoid danger or mistakes. The statement or event that warns of something or that serves as a cautionary example. P a g e Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 6: Table Of Contents

    ANAGEMENT 3.4.15 ..................................32 IRMWARE PGRADE 3.4.16 ....................................32 YSTEM PDATE 3.4.17 ....................................33 EBOOT 3.4.18 ......................................34 ESTORE 3.4.19 ....................................35 OCAL ETTINGS ................................ 35 FAQ’S ................................. 37 P a g e Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 7: Safety Precautions

    Clean the enclosure with a piece of soft cloth or a small amount of cleaning agent. Unauthorized persons are not allowed to open the unit. For any queries regarding the usage of the  product, contact an authorized technician. P a g e Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 8: Overview

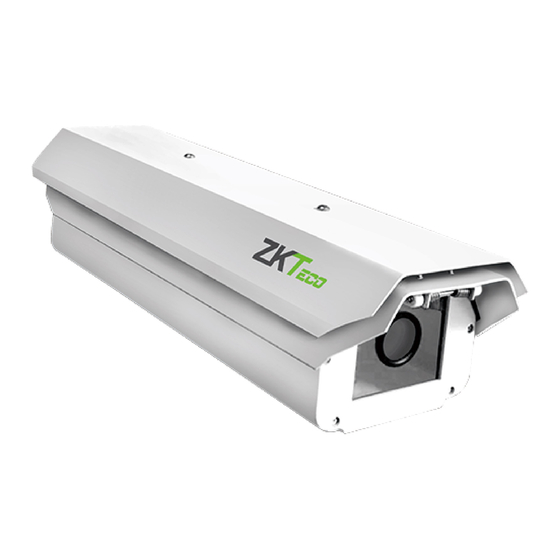

    LPRC300 User Manual Overview The LPRC300 is a high-performance H.264/H.265-based license plate recognition camera. The prominent features of LPRC300 include: Integrated HD imaging  Image collection  License plate recognition  Image decompression  Storage of data on an embedded intelligent platform ...
  • Page 9: Appearance

    Reset Restores the actual camera parameters Standard Ethernet RJ45 socket, 10M/100M self-adaptive, and can be Ethernet connected with various network devices, such as Switches, Routers, Hubs, etc. USB connection P a g e Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 10: System Configuration

     Operating System: 32-bit or 64-bit operating system, such as Windows 7, Windows 8, Windows 10  Internet Explorer: Microsoft Internet Explorer 11.0 or later, and Firefox ESR.  P a g e Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 11: Network And Ip Address Configuration

    Perform the following steps: Check whether the hardware connection is correct.  Check whether the TCP/IP Addresses of the PC and the camera are in the same network segment.  P a g e | 10 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 12: Camera Access Over A Web Browser

    WebLPRActiveXPlus.exe control. Select the download path and click [Download]. After downloading, access WebVideoActiveXPlus.exe to install it. A security prompt may be displayed during the installation. Click [Run] to continue the installation. P a g e | 11 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 13 If default parameters are used, click [Apply] directly. If the user needs to modify the parameters, select [Next] to modify them. After changing the IP Address, this wizard screen will no longer appear. P a g e | 12 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 14 In live pictures, the user can set lens debug, identify parameters, and other features. P a g e | 13 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 15: Live

    3.4.19 Local Settings. The video is saved in a folder named after the year, month and day, and the video named after recording time. example, video file titled P a g e | 14 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 16 Filter the background bar, One-time output for license plates in the same position, One-time output for the same license plates, Identification interval for the same plate(s), Large angle scene and so on. P a g e | 15 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 17: File

    Display Settings, Streams, Video Parameters, List Management, Intelligent Analysis, Date Management, Comm Configuration, P2P Configuration, On-screen Voice, Network Settings, FTP Settings, User Management, Firmware Upgrade, System Update, Auto Reboot, Restore and Local Settings. P a g e | 16 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 18: Device Information

    Time Zone (38 in total): The default time zone is GMT+08:00 Beijing. • NTP Server: Select the [NTP Enable] check box, enter the Server address and interval (0-24 hours), and click [Save]. P a g e | 17 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 19: Display Settings

    Brightness: It indicates the lighting intensity at a unit projecting area. Increasing the brightness helps in improving the general image effect; however, high brightness may cause insufficient transparency of images. The setting range is 1 to 10. P a g e | 18 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 20: Streams

    CPU in processing other events. The setting range is 1 to 25 or full. The default is full. Video Encode: It indicates the video coding format. The user can choose H264 or H265.  P a g e | 19 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 21: Video Parameters

    Day & Night Mode: The Day & Night mode of the camera can be set using any one of the mode  Auto, or DayTime Period. The default mode is Auto. P a g e | 20 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 22 Power Frequency: "Off", "50HZ" and "60HZ", the default is Off.  Light Board Control: Set the light board mode and brightness.  Mode: There are three modes, "Off", "Manual" and "Auto", the default is Auto.  P a g e | 21 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 23: List Management

    Search: Click to search as per the data type, date format, and license plate number. • Sync: Click the button to synchronize the block and whitelist of the vehicles. P a g e | 22 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 24: Intelligent Analysis

    Min/Max License Plate: The default is 60 to 500 pixels. Virtual line to trigger recognition: When a vehicle enters the virtual line, the recognized area of the license plate is displayed. P a g e | 23 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 25 (including all the data records such as admission records, fixed vehicles, allowlist list, and charging rules). Note: Make sure to use this feature carefully. P a g e | 24 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 26 When the camera uses an SD card, this tab shows the total space, used space and remaining space of the SD card. You can format and re-use the SD card. P a g e | 25 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 27 Slave auto-synchronization time: It is the time duration taken by the main camera to synchronize with the secondary camera. • Repeated Plate Processing Interval (s): It is the processing time interval for the same license plate. P a g e | 26 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 28: Data Management

    Push protocol allows to communicate with various software platforms. To use this feature, set the corresponding parameters here. • Push Enable: Select the check box to enable this feature. • Server Address: Enter the Server Address of the push configuration. P a g e | 27 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 29: P2P Configuration

    P2P Server Address: Enter the P2P Server address. Click [Save] after setting the parameters. 3.4.11 On-screen Voice When the camera recognizes the license plate, it can broadcast a voice message. P a g e | 28 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 30: Network Settings

    Otherwise, you need to set network parameters and ensure that the IP address and the gateway address are in the same network segment. P a g e | 29 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 31: Ftp Settings

    3.4.13 FTP Settings FTP allows transferring files and images where the user can configure this parameter to transfer the license plate recognition images to a specified server. P a g e | 30 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 32: User Management

    Password, and user type can be modified for a new user by the administrator. New users can be set as a normal user or operator. Different permissions can be assigned in "Permissions". P a g e | 31 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 33: Firmware Upgrade

    System Update System Update is used for network module program updates. Click and select the update file and click . After the system update, restart the camera. P a g e | 32 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 34: Auto Reboot

    Auto Reboot The automatic maintenance has five modes: "Disable", "Daily", "Weekly", "Single" and "Monthly". Select any one mode, and the device will restart as per the selected mode. P a g e | 33 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 35: Restore

    Restore: Restores the camera parameter settings. With this function, all the settings of the device can be restored to factory default values. Click , select the parameters to be restored, and click "OK". Reboot: It restarts the system. P a g e | 34 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 36: Local Settings

    The log is used to search the recording history. The user can filter the search list with options such as search type, start time, end time, and the number of log results per page. After selecting the criteria, click [Search] to related logs. P a g e | 35 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 37 LPRC300 User Manual P a g e | 36 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 38: Faq's

    Log in the camera with the browser, click Setup  Intelligent Analysis, click the question mark icon on the upper right corner of the interface to query the version information. P a g e | 37 Copyright©2021 ZKTECO. CO., LTD. All rights reserved.
  • Page 39 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 – 89602394 www.zkteco.com Copyright © 2021 ZKTECO CO., LTD. All Rights Reserved.
