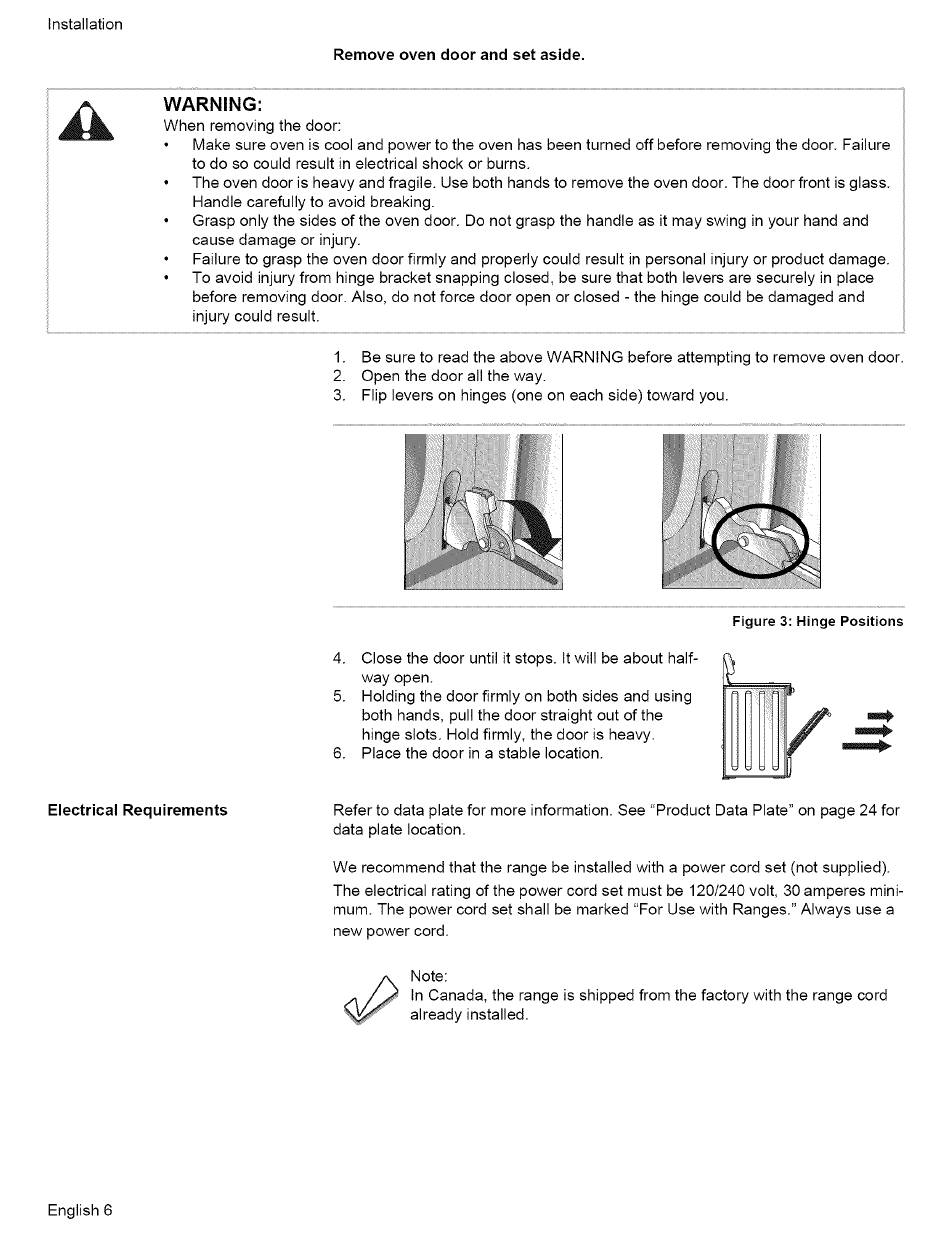

Installation
Remove oven door and set aside.
WARNING:
When removing the door:
•
Make sure oven is cool and power to the oven has been turned off before removing the door. Failure
to do so could result in electrical shock or burns.
•
The oven door is heavy and fragile. Use both hands to remove the oven door. The door front is glass.
Handle carefully to avoid breaking.
•
Grasp only the sides of the oven door. Do not grasp the handle as it may swing in your hand and
cause damage or injury.
•
Failure to grasp the oven door firmly and properly could result in personal injury or product damage.
•
To avoid injury from hinge bracket snapping closed, be sure that both levers are securely in place
before removing door. Also, do not force door open or closed - the hinge could be damaged and
injury could result.
1.
Be sure to read the above WARNING before attempting to remove oven door.
2.
Open the door all the way.
3.
Flip levers on hinges (one on each side) toward you.
Electrical Requirements
Figure 3: Hinge Positions
4.
Close the door until it stops. It will be about half-
way open.
5.
Holding the door firmly on both sides and using
both hands, pull the door straight out of the
hinge slots. Hold firmly, the door is heavy.
6.
Place the door in a stable location.
Refer to data plate for more information. See "Product Data Plate" on page 24 for
data plate location.
We recommend that the range be installed with a power cord set (not supplied).
The electrical rating of the power cord set must be 120/240 volt, 30 amperes mini-
mum. The power cord set shall be marked "For Use with Ranges." Always use a
new power cord.
Note:
In Canada, the range is shipped from the factory with the range cord
already installed.
English 6
