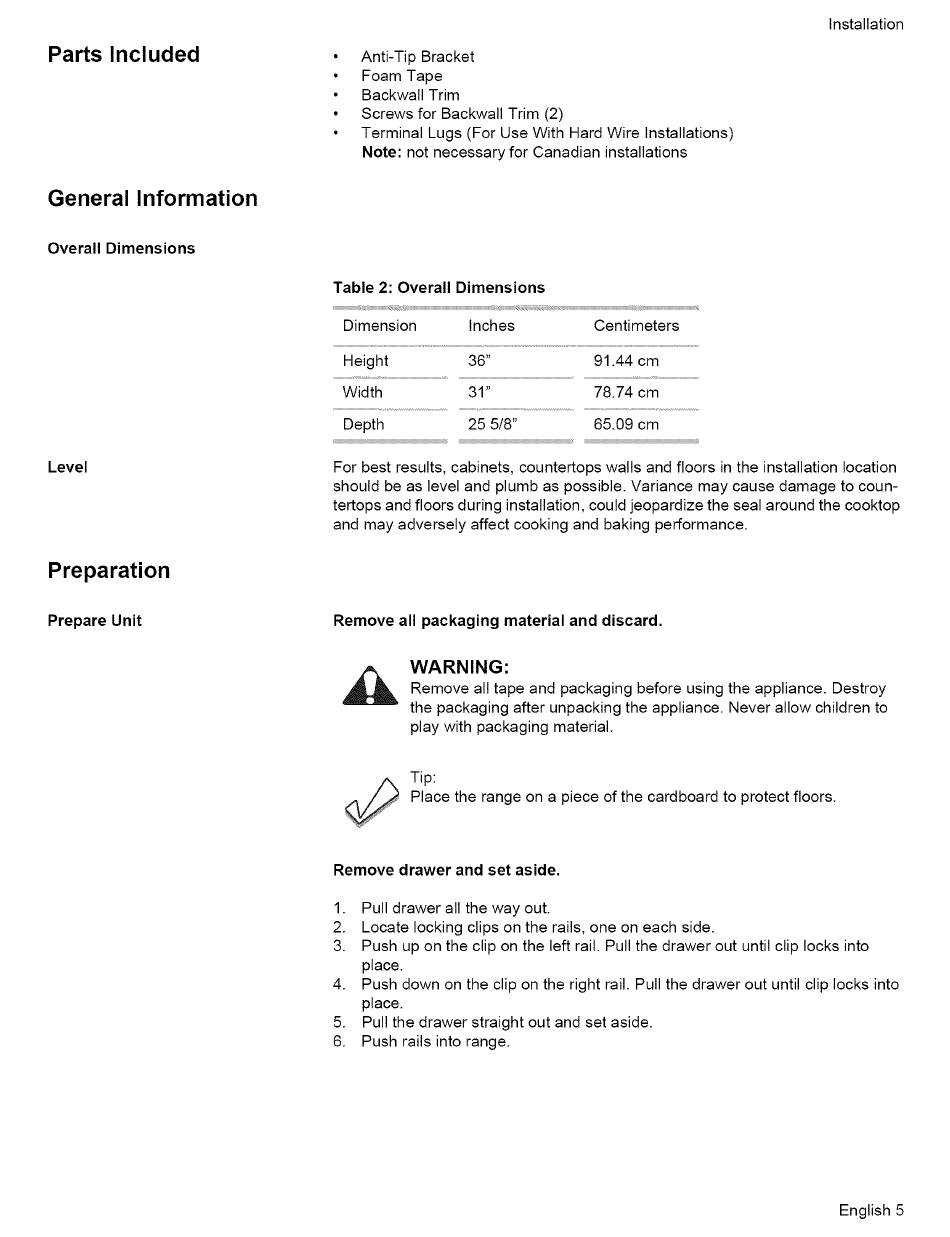

Parts Included
General Information
•
Anti-Tip Bracket
•
Foam Tape
•
Backwall Trim
•
Screws for Backwall Trim (2)
•
Terminal Lugs (For Use With Hard Wire Installations)
Note: not necessary for Canadian installations
Installation
Overall Dimensions
Level
Preparation
Prepare Unit
Table 2: Overall Dimensions
Dimension
Inches
Centimeters
Height
36"
91.44 cm
Width
31"
78.74 cm
Depth
25 5/8"
65.09 cm
For best results, cabinets, countertops walls and floors in the installation location
should be as level and plumb as possible. Variance may cause damage to coun-
tertops and floors during installation, could jeopardize the seal around the cooktop
and may adversely affect cooking and baking performance.
Remove all packaging material and discard.
_
ARNING:
Remove all tape and packaging before using the appliance. Destroy
the packaging after unpacking the appliance. Never allow children to
play with packaging material.
Tip:
Place the range on a piece of the cardboard to protect floors.
Remove drawer and set aside.
1.
Pull drawer all the way out.
2.
Locate locking clips on the rails, one on each side.
3.
Push up on the clip on the left rail. Pull the drawer out until clip locks into
place.
4.
Push down on the clip on the right rail. Pull the drawer out until clip locks into
place.
5.
Pull the drawer straight out and set aside.
6.
Push rails into range.
English 5
