Summary of Contents for Nexo eLS18

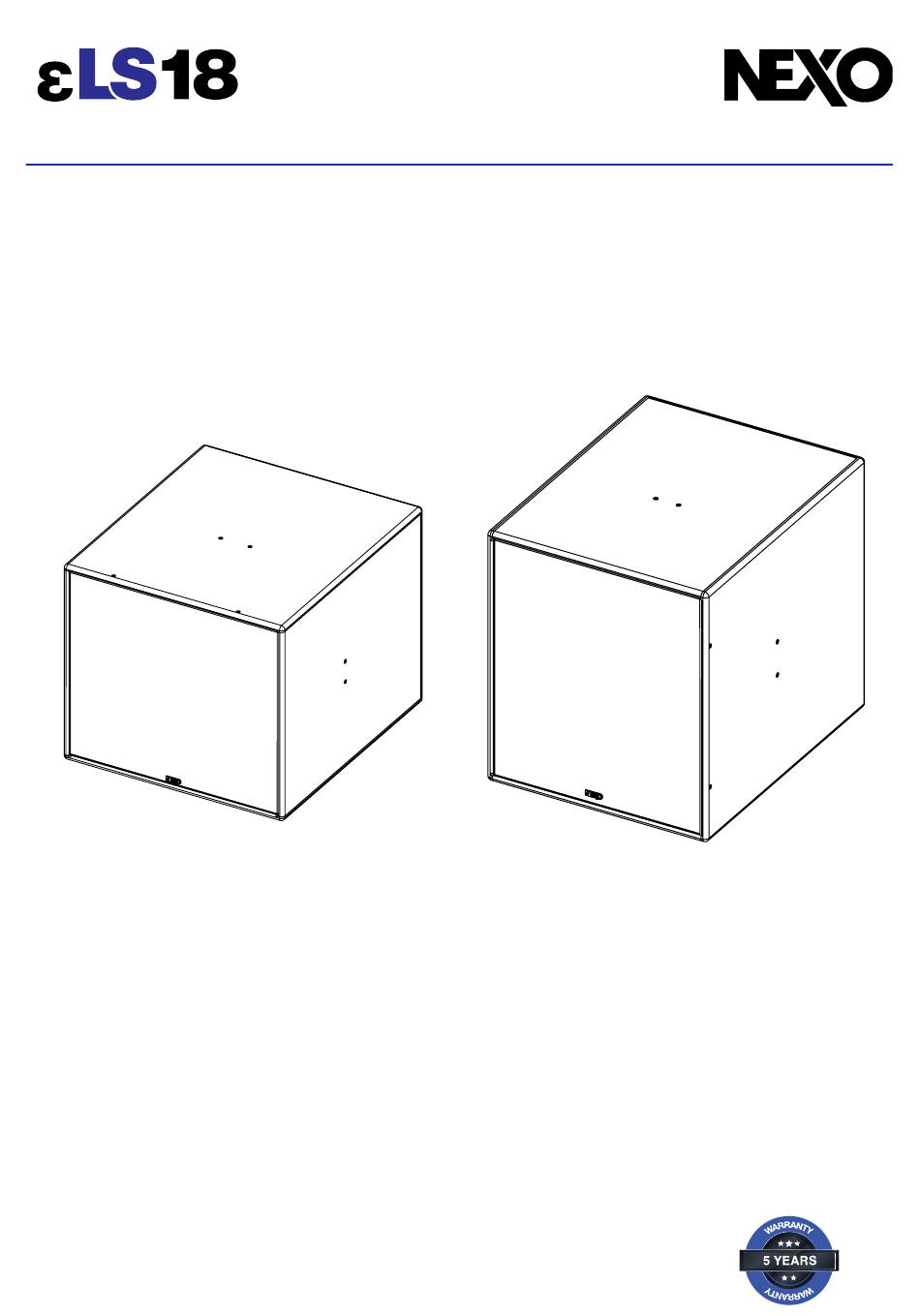

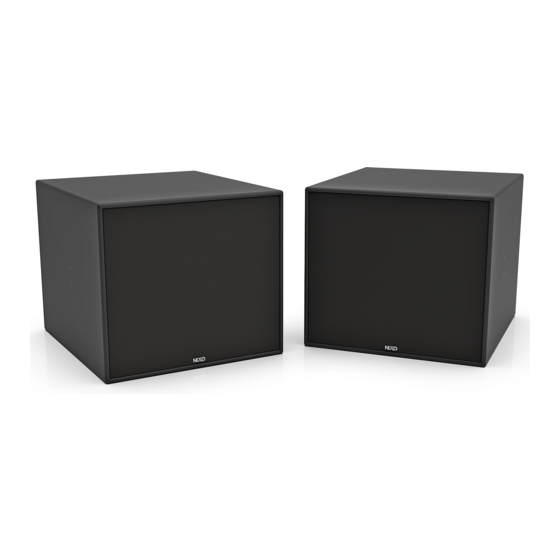

- Page 1 DP6766-01-DI eLS18 User manual IP55...
-
Page 2: Table Of Contents
ARRAY EQ _____________________________________________________________________________ 8 MAINTENANCE _________________________________________________________________________ 9 TECHNICAL SPECIFICATIONS ___________________________________________________________ 11 USER NOTES _________________________________________________________________________ 12 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker... -
Page 3: Warnings
Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician. -
Page 4: Equipment
EQUIPMENT EQUIPMENT On the four sides of the cabinet, two M10 fittings will connect the eLS18 to accessories. (VNI-VCPL535, VNI-HCPL600, VNU-HBRK600, eye-bolts). 2 pairs (In/Out) of 7.62 mm pitch screw terminal blocks. Cables from 0.75 mm2 to 3.31 mm2 (12 to 15 AWG) copper section. -
Page 5: Description
3.31 mm (12 to 15 AWG) copper section. Cable with maximum outside diameter of 11mm. → To wire eLS18, slit the membrane of the grommet crosswise, pass the cable through and make the connection to the screw terminals. Place the IPCOV. -
Page 6: Preset
PRESET PRESET Please consult nexo-sa.com for NEXO TD Controllers firmware information. For a traditional use of the subwoofer, there are 3 setups for eLS18: • 32 Hz – 85 Hz • 32 Hz – 120 Hz • 32 Hz – 150 Hz... -
Page 7: Accessories
WARNINGS All accessories are specifically rated in agreement with structural computations. Never use other accessories when assembling eLS cabinets than the ones provided by NEXO: NEXO will decline responsibility if any component is purchased from different supplier. PROHIBITED: ePS10 or ePS12 below eLS18 without dedicated accessory... -
Page 8: Array Eq
ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): rray ad usting re uency Page 8 / 14 eLS18... -
Page 9: Maintenance
MAINTENANCE MAINTENANCE NOTE: Speakers and Grills can be sent back to NEXO for recycling Driver access Loosen the 4 screws, Remove the grille. Remove 8 screws. Tightening torque: 2.5Nm Tightening torque: 3.5Nm (Thread Locker: Loctite 242) LF: red (+) / black (-) - Page 10 MAINTENANCE Spare parts MARK QUANTITY REFERENCE DESIGNATION 05ELS18-UA eLS18 Complete grille Black 05EBELS18 eLS18 Empty cabinet Black 05VXTSTHC1012 HEADLESS Screw M10x12 Black (x10) peaker 1 ” 05HP18122-8 05HP18122-8R/K Recone Kit for HP18122-8 05LOGNEXO6 NEXO Logo (with 2x starlock) 05PASF-DG9E1 Grommet DG11 Ø15.5mm (x2)
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS WITH NEXO ELECTRONICS Model eLS18 32 Hz – 150 Hz Frequency range (±6dB) Sensivity 1W@1m 106 dB SPL Nominal Peak SPL Level (1m) 138dB Peak Operating voltage 55 Vrms 32 – 85 Hz; 32 – 120 Hz; 32 – 150 Hz... -
Page 12: User Notes
USER NOTES USER NOTES Page 12 / 14 eLS18... - Page 13 Page 13 / 14 eLS18...
- Page 14 Tel: +33 3 44 99 00 70 NEXO S.A. Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr arc d’activité de la Dame Jeanne nexo-sa.com F-60128 PLAILLY Page 14 / 14 eLS18...
