Using the equipment
Description of the equipment
E
L
I
B
C
A

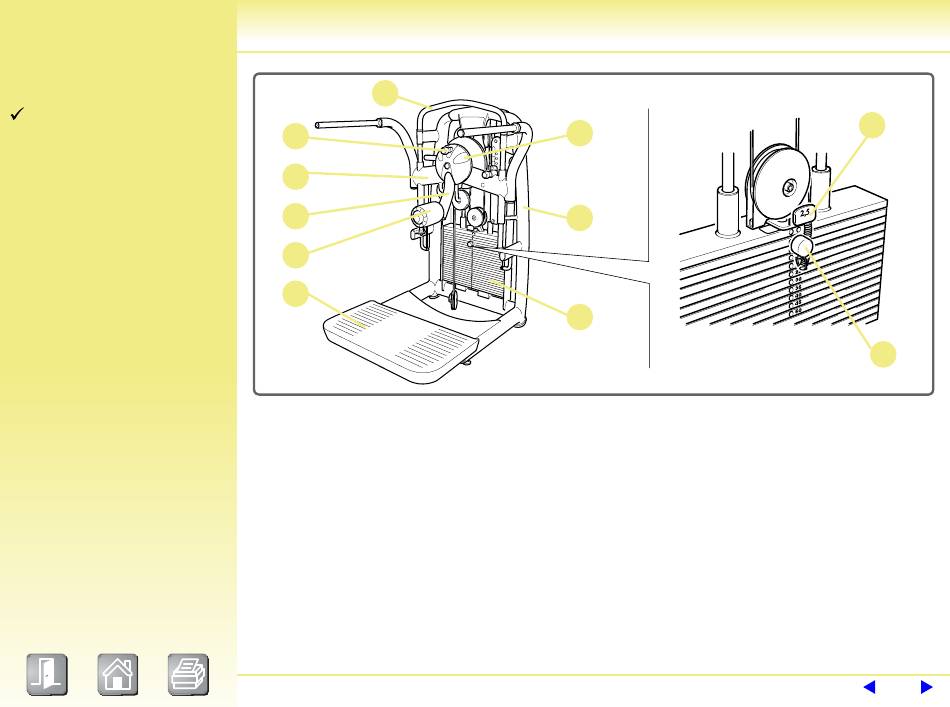

A Platform: where the user stands to perform the exercise.
B Lever: operated by the user by means of the roller (C); before starting to exercise, or
between one set and the next, the starting position can be adjusted so as to modify the
range of motion by using the ROM device.
D ROM device: system for adjusting the Range of Motion and the starting position of the
roller (C). Adjustments are made by pulling the knob (L).
E Front handgrip: it is fixed to the frame (O) and does not follow the adjustments of the
central frame (I).
F Weight stack: the lever (B), operated by the user, moves the weights along two guides
by means of a cable. A pin (G) is used for selecting the load, to adjust the exercise effort
level. The cursor (H) is used to vary the selected workload by ,5 kg.
Multi Hip
D
O
F
H
G

cont.
