Audi 89E.071.126 Installation Instructions Manual

Audi 89E.071.126 Installation Instructions Manual

Audi q4 sportback e-tron 2022

Advertisement

Quick Links

Service
Installation instructions
Audi Q4 Sportback e-tron 2022 ►

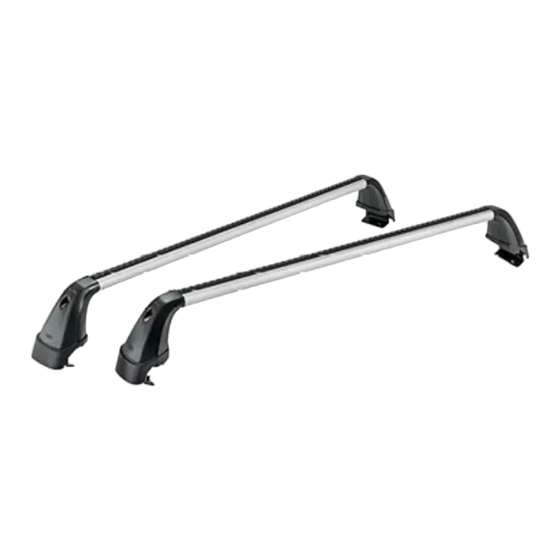

Roof carrier
Scope of delivery 89E.071.126
Audi Genuine Accessories
Edition 01
Service Department. Technical Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 89E.071.126 and is the answer not in the manual?

Questions and answers

Summary of Contents for Audi 89E.071.126

  • Page 1 Service Installation instructions Audi Q4 Sportback e-tron 2022 ► Roof carrier Scope of delivery 89E.071.126 Audi Genuine Accessories Edition 01 Service Department. Technical Information...
  • Page 2: Table Of Contents

    ................All rights reserved. No reproduction without prior agreement from publisher. Copyright © 2021 Audi AG, Ingolstadt Printed in Germany...
  • Page 3: Notes

    Repairs or the replacement of parts must only be performed by a qualified workshop. It is recom- mended that genuine spare parts available from your Audi partner are used. WARNING All bolted connections and connections for the carrier units and for the roof rack modules must be checked prior to travelling to make sure that they are correctly positioned and installed.
  • Page 4: Safety Notes For Loading

    Installation instructions - Audi Q4 Sportback e-tron 2022 ► Edition 01 Caution To prevent damage to the vehicle, make sure that the rear lid is opened carefully after longer objects have been loaded onto the vehicle. For vehicles featuring automatic rear lid operation, it is recom- ⇒ ...
  • Page 5: Technical Notes

    Installation instructions - Audi Q4 Sportback e-tron 2022 ► Edition 01 Technical notes Technical data Dead weight of carrier unit set: approx. 6.0 kg (13.2 lbs.) Roof load/load To determine the roof load: Weight of the carrier unit + weight of the roof rack module...
  • Page 6: Assembly Overview

    Installation instructions - Audi Q4 Sportback e-tron 2022 ► Edition 01 Assembly overview 1 - Profile cover (2x) 2 - Label (2x) q "Front left"–"rear left" 3 - Profile tube (2x) 4 - 4-Nm torque wrench (1x) 5 - Tensioning bolt with cross bolt (4x) 6 - Cover flap (4x) 7 - Lock (4x) 8 - Key (2x)
  • Page 7 Installation instructions - Audi Q4 Sportback e-tron 2022 ► Edition 01 Preparing carrier units for installation: – Open the lock -8- using the key -7-. – Note the key number. This will facilitate replacement in the event of loss. – Open the cover flaps -6-. To do this: Step I - ...
  • Page 8 Installation instructions - Audi Q4 Sportback e-tron 2022 ► Edition 01 – Connect the torque wrench -4- to the bolts -5- and unscrew the bolts until obvious resistance is felt. – Carefully pull the claw fastener -9- down and outwards as far as it will go -arrow-.
  • Page 9 Installation instructions - Audi Q4 Sportback e-tron 2022 ► Edition 01 – Keep the claw fasteners -9- in position away from the vehi- cle. Check the exact installation position of the carrier unit – the po- sitioning bolts of the claw fastener -9- must be positioned pre- cisely below the mounting hole -magnifying glass-.
  • Page 10: Installing Roof Rack Modules Using T-Slot Nuts

    Installation instructions - Audi Q4 Sportback e-tron 2022 ► Edition 01 – Gently tighten the tensioning bolts -5- alternately using the torque wrench -4-. – Check the position of the roof support -10- and claw fastener -9- and correct if necessary.
  • Page 11: Installing The Profile Cover

    Installation instructions - Audi Q4 Sportback e-tron 2022 ► Edition 01 Installing the profile cover Note ◆ Do not use lubricants to install the profile cover! Installing the profile cover without using T-slot nuts to se- cure roof rack modules: I - Measure the profile cover -1- then shorten it using a suitable...
