Service
Installation instructions
Audi Q4 e-tron 2021 ►
Carrier units for roof rails
Scope of delivery 89A.071.151
Audi Genuine Accessories
Edition 01
Service Department. Technical Information

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 89A.071.151 and is the answer not in the manual?

Questions and answers

Benoit
June 20, 2025

Incapable de tourner la clé dans le sens anti horaire

Subscribe to Our Youtube Channel

Summary of Contents for Audi 89A.071.151

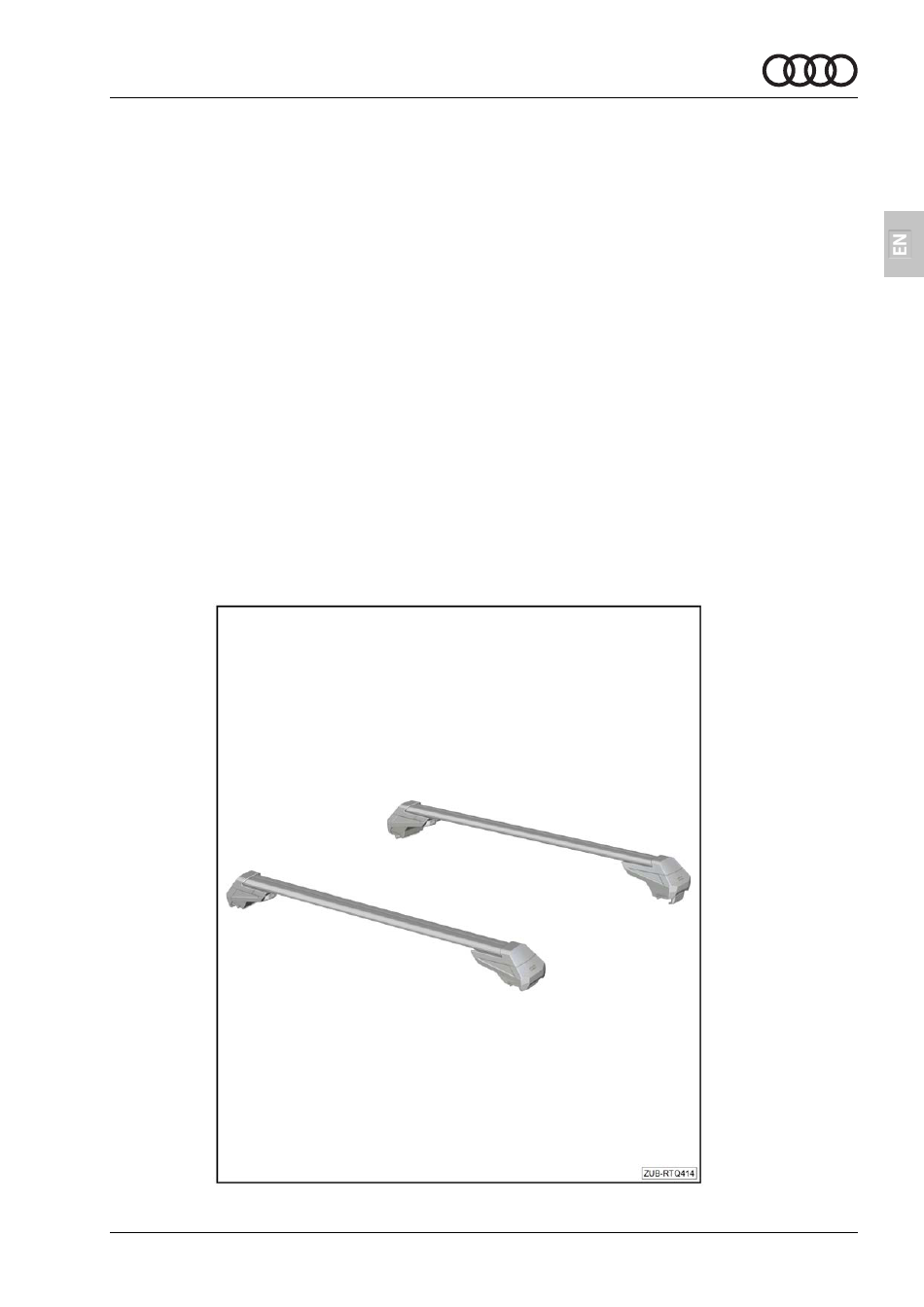

  • Page 1 Service Installation instructions Audi Q4 e-tron 2021 ► Carrier units for roof rails Scope of delivery 89A.071.151 Audi Genuine Accessories Edition 01 Service Department. Technical Information...
  • Page 2: Table Of Contents

    ................All rights reserved. No reproduction without prior agreement from publisher. Copyright © 2021 Audi AG, Ingolstadt Printed in Germany...
  • Page 3: Notes

    Repairs or the replacement of parts must only be performed by a qualified workshop. It is recom- mended that genuine spare parts available from your Audi partner are used. WARNING All bolted connections and connections for the carrier units and for the roof rack modules must be checked prior to travelling to make sure that they are correctly positioned and installed.
  • Page 4: Safety Notes For Loading

    Installation instructions - Audi Q4 e-tron 2021 ► Edition 01 Caution To prevent damage to the vehicle, make sure that the rear lid is opened carefully after longer objects have been loaded onto the vehicle. For vehicles featuring automatic rear lid operation, it is recom- ⇒ ...
  • Page 5: Technical Notes

    Installation instructions - Audi Q4 e-tron 2021 ► Edition 01 Technical notes Technical data Dead weight of carrier unit set: approx. 6 kg (13.2 lbs.) Roof load/load To determine the roof load: Weight of the carrier unit (6 kg/13.2 lbs.)
  • Page 6: Assembly Overview

    Installation instructions - Audi Q4 e-tron 2021 ► Edition 01 Assembly overview 1 - Profile tube (2x) 2 - Tensioning lever (4x) 3 - Lock (4x) with key (2x) 4 - Rubber support (8x) 5 - Clamping claw (4x) 6 - Cover flap (4x) 7 - Foot, complete, incl. quick-clamping de- vice (4x) 8 - Profile tube cover (2x) 9 - Label (2x)
  • Page 7: Procedures

    Installation instructions - Audi Q4 e-tron 2021 ► Edition 01 Procedures Installing carrier units Note ◆ The carrier units must be installed by two people. ◆ When securing the roof rack modules without a T-groove nut, install the profile cover on the carrier unit before mount- ⇒ ...
  • Page 8 Installation instructions - Audi Q4 e-tron 2021 ► Edition 01 Installation area Note Before installing the carrier units, thoroughly clean the area around the contact surfaces (see figure) with a soft cloth and an alcohol-based cleaner (not soap or a soap-based cleaner), e.g.
  • Page 9 Installation instructions - Audi Q4 e-tron 2021 ► Edition 01 – Fold down the cover flap -6- by 90° -arrow- and close it to the first notch. – Insert the key -3-, turn it 90° clockwise and remove it. – Push the cover flap -6- fully closed -direction of the arrow-.
  • Page 10: Installing The Roof Rack Modules

    Installation instructions - Audi Q4 e-tron 2021 ► Edition 01 Installing the roof rack modules – Open the cover flap -6- by about 2 cm -arrow-. – Insert the key -3- and turn it 90° anti-clockwise. – Push the cover flap -6- fully closed -direction of the arrow-.
