Specifications
Specifications subject to change without notice.
Maximum Distance*
1920 x 1200 resolution
1600 x 1200 resolution
1280 x 1024 resolution
1024 x 768 resolution
800 x 600 resolution
Video Bandwidth
DIGI-VGA-R-F receive unit (250 feet): 120 MHz
DIGI-VGA-R-F receive unit (850 feet): 50 MHz
DIGI-VGA-S-F send unit: 350 MHz
Input Video Signal
1.2V p-p
Audio Frequency Response
20 Hz to 20 kHz
Audio Impedance
600 ohm
Audio Nominal Level
0-1.0V
Common Mode Rejection
60 dB
Unshielded Twisted Pair
Maximum capacitance: 20 pf/foot
Cabling Specifications
Impedance: 100 ohms @ 1 MHz
(24 gauge or lower solid
Attenuation: 6.6 dB/1000 ft. @ 1 MHz
copper)
Cat 5, Cat 5e, Cat 6, Cat 7 compatible
Send Unit Connectors
One female HD15 input, one female HD15 output, one 1/8"
mini audio input, one 1/8" mini audio output, one shielded
RJ45 output, one USB type-B power connector, one DIN mini
power connector
Receive Unit Connectors
Two female HD15 outputs, two 1/8" mini audio outputs, one
shielded RJ45 input, one DIN mini power connector
Max Units for Linking
3
Max Distance Between Links Distance based on resolution
Temperature
Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%
Power Consumption
DIGI-VGA-R-F receive unit: 12V/0.5A or 6W
DIGI-VGA-S-F send unit: 12V/0.2A or 2.4W
Brightness
Front panel trim-pot on DIGI-VGA-R-F receive unit
Contrast (skew adj.)
Front panel trim-pot on DIGI-VGA-R-F receive unit
Status
Front panel video, audio, and power LEDs on both the DIGI-
VGA-R-F receive and DIGI-VGA-S-F send units
* Distances and picture quality may be affected by cable grade, cable quality, source and
destination equipment, RF and electrical interference, and cable patches. Intelix
specifications are based on straight-through cabling with standard-grade Cat 5.
250 feet
350 feet
500 feet
700 feet
850 feet
Specifications
Enclosure
Metal
Dimensions
DIGI-VGA-R-F receive unit: 6.25" x 1.25" x 3.25"
DIGI-VGA-S-F send unit: 6.25" x 1.25" x 3.25"
Shipping Weight
DIGI-VGA-F: 4.0 lbs.
Ordering Information
DIGI-VGA-F: includes one DIGI-VGA-S-F send balun, one
DIGI-VGA-R-F receive balun, two DC power supplies, and
one USB power cable
DIGI-VGA-R-F: includes one DIGI-VGA-R-F receive balun
and one DC power supply
DIGI-VGA-S-F: includes one DIGI-VGA-S-F send balun,
one DC power supply, and one USB power cable
Warranty
2 years

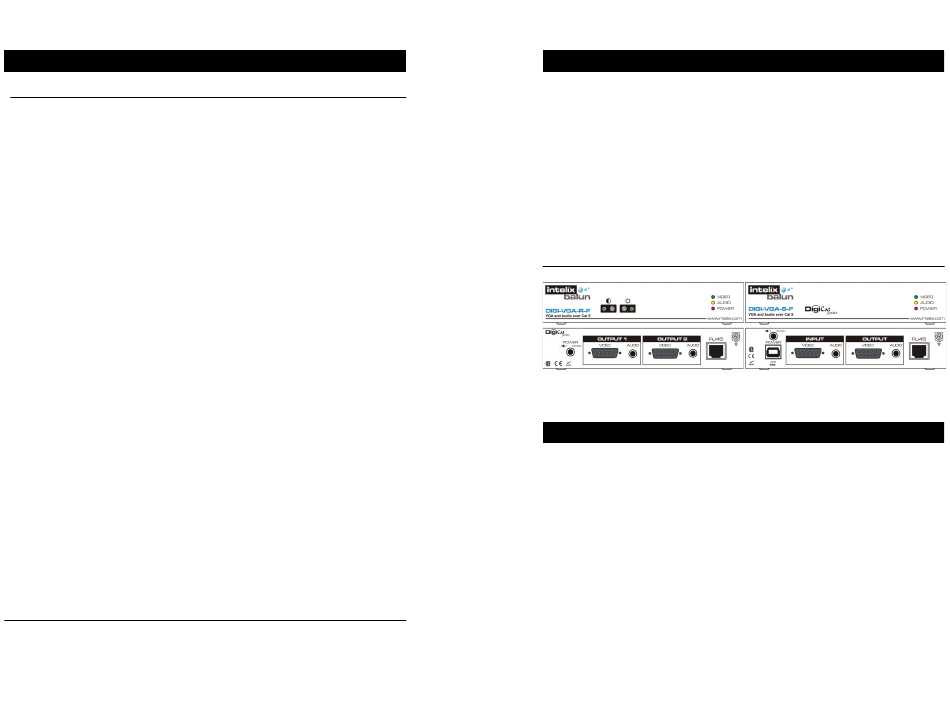

DIGI-VGA-R-F
Receive Unit
Troubleshooting
If your equipment malfunctions with DIGI-VGA-F baluns in place, follow the
troubleshooting procedures below:
1. Perform diagnostics on your equipment by following the manufacturer's
instructions.
2. Check all the connections and the structured cabling system. Verify the RJ45
crimp pattern conforms to either EIA/TIA 568A or 568B standards.
3. Check the pin configuration on the structured cable.
4. The maximum operational distances over which the DIGI-VGA-F balun kit can
be transmitted is dependant on the equipment used and cable. Ensure that the
maximum recommended operational distances have not been exceeded.
5. Check that only twisted pair patch cords are being used.
6. Replace the DIGI-VGA-F balun kit with another DIGI-VGA-F balun kit that is
known to be working.
7. Adjust the brightness and contrast setting on the DIGI-VGA-R-F receive balun.
8. If you still cannot diagnose the problem, contact Intelix for support.
