ADVANCED OPERATION 42
CL and CH flags are shown if Control out of range (too low or high) is activated. This indicates that the
control result is out of the target value range.
LH and LL flags are shown if Out of linearity range but display result is activated. In this case, the results
are still displayed in the result screens, even if the results are out of linearity. If not enabled, results out of
linearity range are not shown.
Exit applies the selected settings and closes the window.

4.6 General (2) settings, software update, auto-warnings

Note: This setting is only accessible in Service Mode. Switch from User or Admin to Service Mode first.

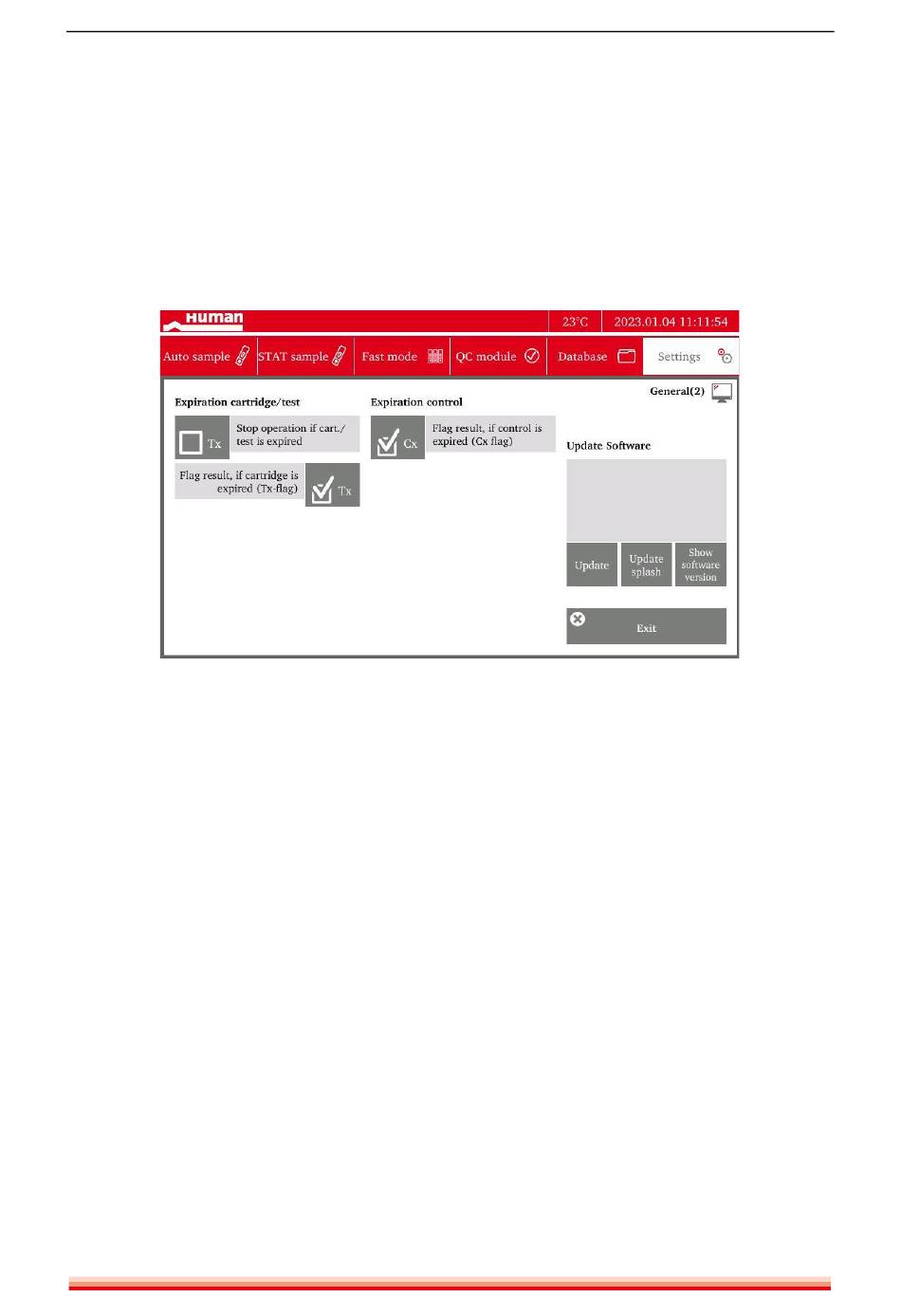

Figure 4-7 Running a software update and enabling of warnings
Expiration cartridge/test
If the setting Stop operation if cart./test is expired is enabled, the software stops the operation of expired
test LOTs. This guarantees that only valid reagents are used for correct results.
If the setting Flag result, if cartridge is expired (Tx-flag) is enabled, the results are flagged with Tx if a test
LOT in use is expired.
Expiration control
If the setting Flag result, if control is expired (Cx-flag) is enabled, the control results are flagged with Cx if
a control LOT in use is expired.
Update Software
A new software version must be transferred to a USB stick and imported into the system. The USB stick will
immediately start flashing if accepted. By pressing the button Update, a software update will automatically
be uploaded from the USB drive.
Note: Only the USB ports next to the serial-connection port can be used to upload a software update.
Show software version opens a screen that shows the current software version running on the system.
Exit applies the selected settings and closes the window.
