2 SYSTEM DESCRIPTION

2.2.3 HumaFIA calibration card

The calibration card [CAL] contains the calibration curve for one parameter, which is shown on the card.
Further, the LOT number of the corresponding cartridge kit is shown below the parameter name. Insert the
calibration card into the analyser to upload the calibration curves into the analyser. The calibration card is
then not needed anymore, since the calibration curve for this LOT and parameter is already stored in the
analyser. Nevertheless, keep the calibration card until the kit is used up. For further details on upload, see
chapter 3.3.5 Calibration cards overview in the QC module.

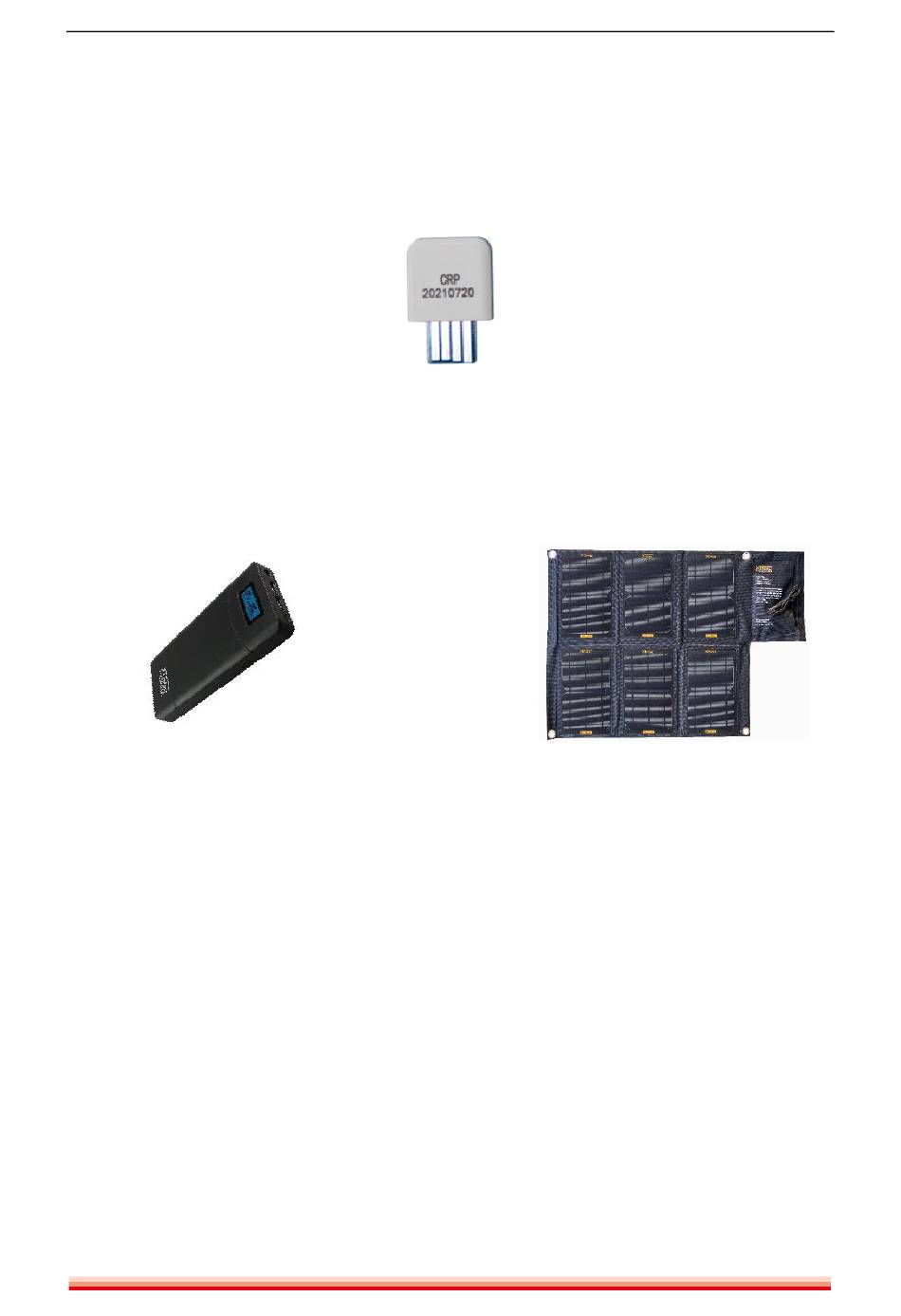

Figure 2-3 Calibration card, with LOT and parameter information

2.2.4 HumaFIA power bank

The HumaFIA power bank (73 Wh) is an optional accessory that allows the analyser to run for several hours
even when no mains power is available. It can be combined with a solar panel to function as a stand‑alone
power system.
Figure 2-4-1 Power bank,
REF: 18250/70

2.2.5 HumaFIA test cartridges

Each test cartridge has the same shape that fits into the slot marked Cassette input on the front of the
analyser. The sample volume gets administered at the sample port of the cartridge. The reading of the test
occurs inside the analyser in the rectangular window of the cartridge.
The analyser automatically reads the barcode on the cassette and matches the type of cartridge with the
user's selection in the software. Also, the expiration date of the LOT is checked. The test type and LOT
number are shown next to the barcode.
HumaFIA | User manual
20100 mAh , 73 Wh Figure 2-4-2 Solar panel, foldable, 36W
REF: 18250/73
