2.2.7 HumaFIA Standard Cartridge

The Standard Cartridge is a service tool. The Standard Cartridge allows a service engineer or an experienced
user to check the correct function of the HumaFIA optical system.
To run the Standard Cartridge on HumaFIA, first insert the corresponding calibration card. Run the Standard
Cartridge in the QC module, see chapter 3.3 QC module.

2.3 Technical data

Display
Operating system
Sample reading time
Sample requirements
Environmental conditions
Storage conditions
Printer
Sample identification
Power supply
Dimensions
Weight
HumaFIA | User manual

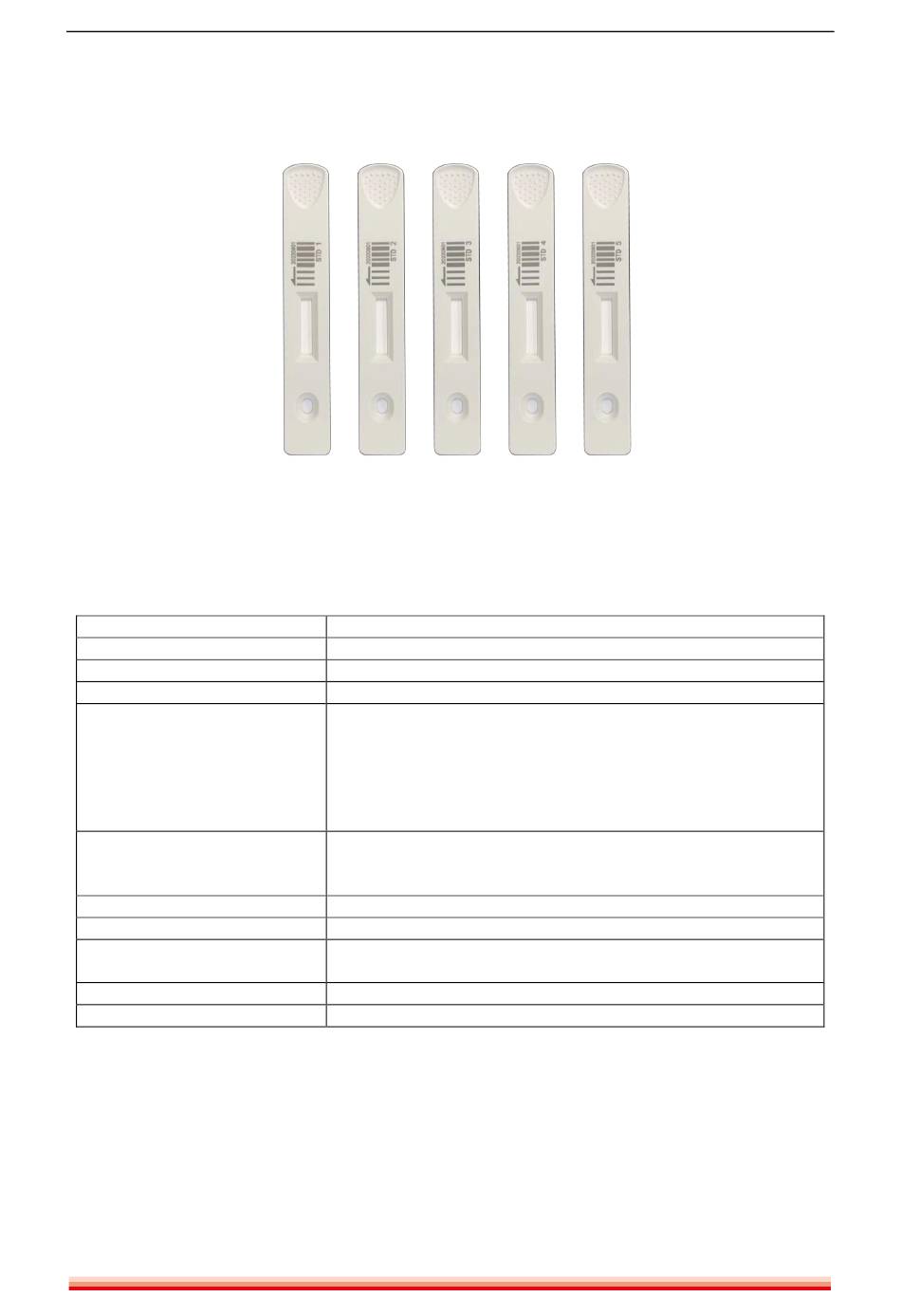

Figure 2-7 Standard Cartridge, REF: 16090/510
800 x 480 pixels, / 7-inch touch screen
Linux
Less than 3 seconds
Depends on parameter type (serum, plasma, whole blood)
20-25 °C operation temp.
20-90 % relative humidity, non-condensing.
Air pressure 86.0-106.0 kPA
Avoid strong magnetic disturbance, keep away from explosive gas,
dust, direct light and water immersion.
10-40 °C (when the analyser is not connected)
<93 % relative humidity, non-condensing.
Air pressure 50.0-106.0 kPA
Internal thermal printer
External (optional) barcode scanner
100-220 V, 50-60 Hz, max power consumption 60 VA. DC 12V 5A.
Three-wire power cord of good grounding performance.
300 x 305 x 120 cm
4.2 kg
Table 2-1 Specifications
