RC22312A/RC32312A
Evaluation Board
The RC22312A/RC32312A Evaluation Board (EVB)
is designed to support users evaluating high
performance synthesizer and jitter attenuator
applications. This document describes the following:
■
Basic hardware and GUI setup using Renesas IC
Toolbox (RICBox™) software
■
Board power-up instructions
■
Instructions to get active output signals using a
provided configuration file
■
Hardware modifications required for different
conditions
Board Contents
■
RC22312A/RC32312A evaluation board
■
EVB manual
■
Configuration software (installable plugin for
RICBox)
■
Configuration example file for four built-in device
settings
■
Board schematic and BOM
R31UH0022EU0100 Rev.1.00
Mar 28, 2023
Features
■
Four differential clock inputs
■
Twelve differential clock outputs
■
On-board EEPROM stores startup-configuration
data
■
XIN terminal can use laboratory signal generator
or OCXO/TCXO/XO components and board
■
Laboratory power supply connectors
■
USB-C power supply
■
Serial port for configuration and register read out
Computer Requirements
■
USB 2.0 or USB 3.0 interface
■
Processor: minimum 1GHz
■
Memory: minimum 512MB; recommended 1GB
■
Available disk space: minimum 600MB (1.5GB 64-
bit); recommended 1GB (2GB 64-bit)

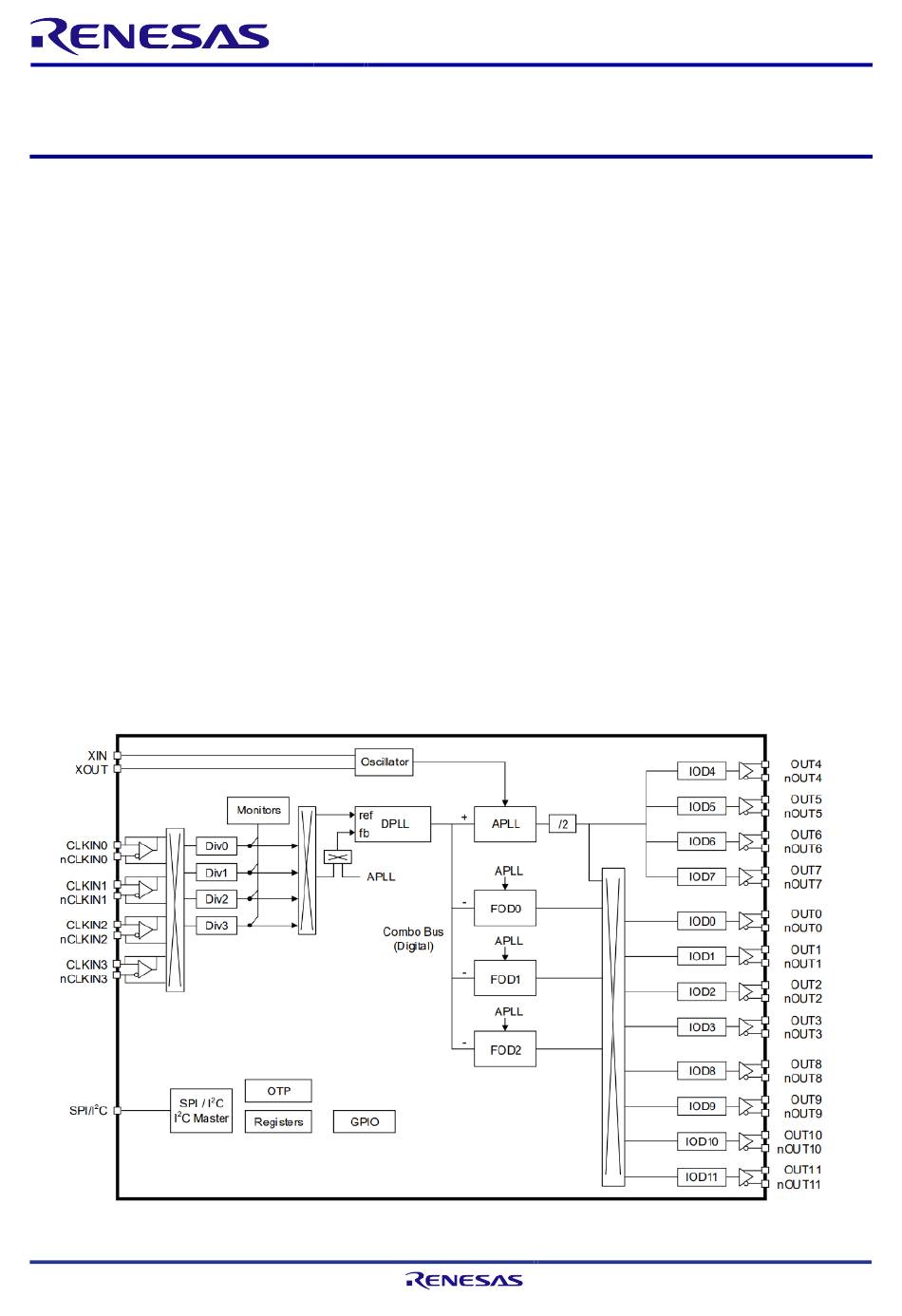

Figure 1. RC32312A Block Diagram

Evaluation Board Manual
© 2023 Renesas Electronics
Page 1
