PROAIM P-OHCP-01 Assembly Manual

3ft overhead platform

Table of Contents

Download this manual

3ft Overhead Platform (P-OHCP-01)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

1 x Cross Bar

2 x Foot Joints

2 x Locking Pins

2 x Side Bars

2 x Plastic Clips

2 x L-Brackets

9 x Foot Thumb Screws

4 x Support Bars

8 x M5 Short Thumb Screws

1 x Camera Mount

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the P-OHCP-01 and is the answer not in the manual?

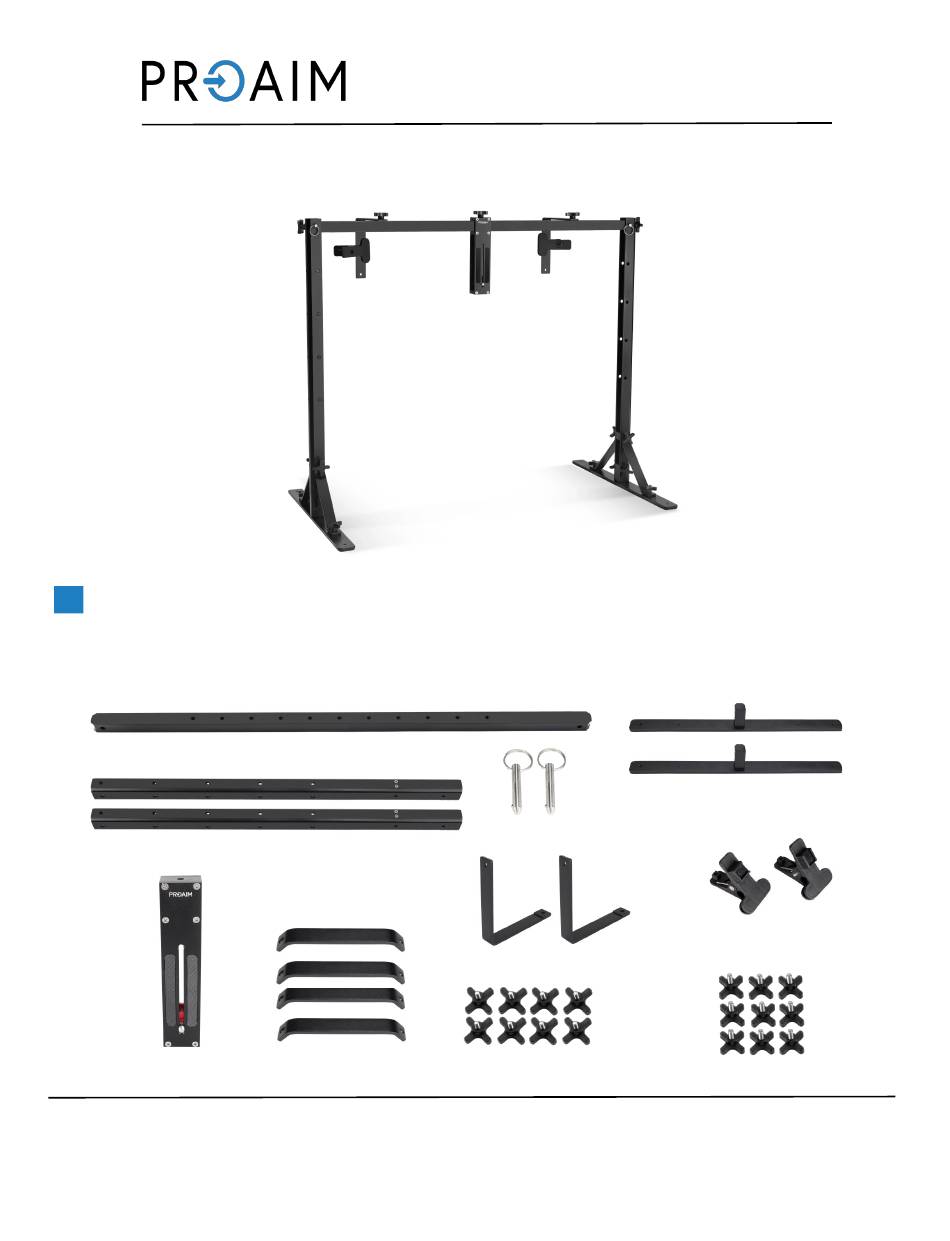

Page 1 3ft Overhead Platform (P-OHCP-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 3ft Overhead Platform Setup Side Bar Assembly • Slide the Side Bar onto the ground foot. Lock the Side Bar to the foot using of the 1/4-20 Foot thumbscrew. • Similarly, Repeat Same Steps for attaching 2 feet. Support Bar Assembly •...
Page 3 Camera Mount Assembly • Slide the Camera Holder onto the Cross Bar. • Adjust the height of the Cross Bar by sliding it along the Side Bar and locking it into position using the 2 Height Adjustment Thumbscrew. NOTE: Camera Platform slide on crossbar as per your requirement.
Page 4 • Similarly. Follow the same process to secure the cross bar to both sides. • You can adjust the height of the crossbar according to your shooting needs. as shown in image. L-Bracket Assembly • Attach the 2 L-brackets using the thumb screws onto the cross bar.
Page 5 YOUR PROAIM 3FT OVERHEAD PLATFORM ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage.
