COUGAR MG140 RGB Assembly Instructions

COUGAR MG140 RGB Assembly Instructions

Brilliant and compact argb mini tower case

Advertisement

Quick Links

MG140
RGB

BRILLIANT AND COMPACT ARGB MINI TOWER CASE

We've made COUGAR PC cases even better. The smoked and translucent front panel design creates a
stunning outlook for your amazing build. Three gorgeous ARGB fans, mighty support for up a 280mm
radiator, a 350mm graphic card, and a 160mm CPU cooler deliver superior value for you.

FANTASTIC DARKMIRROR

FANTASTIC DARKMIRROR
MG140 RGB's front panel features smoked and translucent design. It is the chassis that integrates the
MG140 RGB's front panel features smoked and translucent design. It is the chassis that integrates the
new concept of minimalist aesthetic and fantastic style. The front panel enhance the reflective of internal
new concept of minimalist aesthetic and fantastic style. The front panel enhance the reflective of internal
ARGB fans to create mesmerizing light effects.
ARGB fans to create mesmerizing light effects.

INCREDIBLE RGB LIGHTING

INCREDIBLE RGB LIGHTING
MG140 RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects with the
MG140 RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects with the
dedicated RGB button. The built-in LED controller also adaptable with any compatible motherboards' 5V ARGB
dedicated RGB button. The built-in LED controller also adaptable with any compatible motherboards' 5V ARGB
connection for system-wide lighting synchronization. The powerful lights come out of a stylish panel and the
connection for system-wide lighting synchronization. The powerful lights come out of a stylish panel and the
reflective surroundings helps reinforce the RGB effects.
reflective surroundings helps reinforce the RGB effects.

TOP-NOTCH COOLING

TOP-NOTCH COOLING
MG140 RGB's compact layout allows you to install five fans, a 280mm water cooling radiator, and a
MG140 RGB's compact layout allows you to install five fans, a 280mm water cooling radiator, and a
160mm CPU cooler. This immense cooling potential will enable you to choose components freely.
160mm CPU cooler. This immense cooling potential will enable you to choose components freely.

GREAT SUPPORT FOR COMPONENTS

GREAT SUPPORT FOR COMPONENTS
Its advanced support for up to 350mm-long graphics cards, which allows you to enjoy the latest games
Its advanced support for up to 350mm-long graphics cards, which allows you to enjoy the latest games
with smooth framerates.
with smooth framerates.

CLEAN AND TIDY LOOKS

CLEAN AND TIDY LOOKS
With the full-length PSU cavity hides cables and a massive tempered glass left panel presents a clean and
With the full-length PSU cavity hides cables and a massive tempered glass left panel presents a clean and
tidy build, you can easily showcase your pro-level stunning build!
tidy build, you can easily showcase your pro-level stunning build!

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR MG140 RGB
Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights granted under local law.
These rights may vary.
Only for electrical components.
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
A
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
B
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,
и означают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
A
B
C
D
E
F
G
H
I
J
Например,
1
2
3
4
5
6
7
8
9
0
AG = 17 = 2017 год

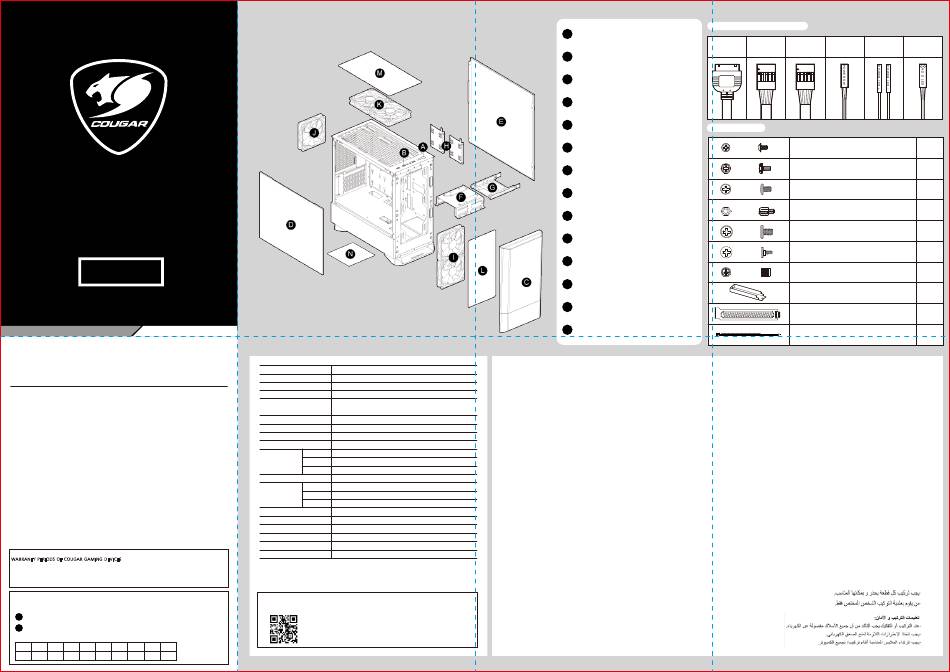

Assembly Drawing

Model Name
MG140 RGB (BLACK) / (IRON-GRAY)
Model No.
CGR-5JM8B-RGB / CGR-5JM8G-RGB
Case Form Factor
Mini Tower
Motherboard Type
Mini ITX / Micro ATX
205 (W) x 410 (H) x 420 (D) mm
Dimensions (WxHxD)
8.1 (W) x 16.1 (H) x 16.5 (D) in
I/O Panel
USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button
3.5" Drive Bay
2
2.5" Drive Bay
4+2 (converted from 3.5" drive bays) / (2 SSD trays included)
Expansion Slots
4
Front
120mm x 2 / 140mm x 2 (120mm ARGB fan x 2 pre-installed)
Cooling Fan
Top
120mm x 2 / 140mm x 2
Support
Rear
120mm x 1 (120mm ARGB fan x 1 pre-installed)
Maximum Number of Fans
5 Max.
Front
280mm / 240mm / 140mm / 120mm
Water Cooling
Top
-
Support
Rear
120mm
Transparent Left Panel
4mm Tempered Glass
Onboard Lighting System
Yes
RGB Sync with M/B
Yes
Max. Graphics Card Length
350 (mm) / 13.8 in
Max. CPU Cooler Height
160 (mm) / 6.3 in
Max. PSU Length
160 (mm) / 6.3 in
Specifications might vary depending on the country or region of sale.
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg
България QR код
A
Power button / RGB button
B
USB 3.0 / USB 2.0 / HD audio ports
C
Front panel
D
Tempered glass side panel
E
Right side panel
F
3.5" HDD cage (compatible for 2.5" HDD/SSD)
G
3.5" HDD tray (compatible for 2.5" HDD/SSD)
H
2.5" HDD/SSD trays
2 x 120mm / 2 x 140mm fans for front panel
I
(120mm ARGB fans x 2 pre-installed)
120mm fan for rear panel
J
(120mm ARGB fan pre-installed)
2 x 120mm / 2 x 140mm fans for top panel
K
(optional)
L
Air filter for front panel
M
Air filter for top panel
N
Air filter for bottom panel
ENGLISH
PORTUGUÊS
Smoked and translucent front panel design
Design do painel frontal transparente e fumê
Integrated RGB system with 5V ARGB motherboard
Sistema RGB integrado com sincronização da placa-mãe
synchronization
5V ARGB
Support for Micro ATX / Mini ITX motherboards
Suporte para placas-mãe Micro ATX / Mini ITX
Massive tempered glass side window
Janela lateral de vidro temperado maciço
Up to 350mm graphics cards
Placas gráficas de até 350 mm
Up to five fans and 160mm CPU cooler
Até cinco ventiladores e cooler para CPU de 160 mm
Up to a 280mm water cooling radiator
Radiador de refrigeração de água de até 280 mm
DEUTSCH
РУССКИЙ
Geräuchertes und transparentes Design der Frontplatte
Дымчатый и прозрачный дизайн передней панели.
Integriertes RGB-System mit 5V ARGB-Motherboard-
Интегрированная система RGB с синхронизацией
Synchronisation
материнской платы 5V ARGB
Unterstützung für Micro ATX / Mini ITX-Motherboards
Поддержка материнских плат Micro ATX / Mini ITX.
Massives Seitenfenster aus gehärtetem Glas
Массивное боковое окно из закаленного стекла.
Bis zu 350 mm Grafikkarten
Видеокарты до 350 мм
Bis zu fünf Lüfter und 160 mm CPU-Kühler
До пяти вентиляторов и 160-мм кулер для процессора
Bis zu 280 mm Wasserkühler
Радиатор водяного охлаждения диаметром до 280 мм.
ESPAÑOL
FRANÇAIS
Diseño de panel frontal transparente y ahumado
Conception du panneau avant fumé et transparent
Système RVB intégré avec synchronisation de la carte
Sistema RGB integrado con sincronización de placa base
mère ARGB 5V
ARGB de 5 V
Prise en charge des cartes mères Micro ATX / Mini ITX
Soporte para placas base Micro ATX / Mini ITX
Vitre latérale massive en verre trempé
Ventana lateral de vidrio templado masivo
Cartes graphiques jusqu'à 350 mm
Tarjetas gráficas de hasta 350 mm
Jusqu'à cinq ventilateurs et refroidisseur de processeur de
Hasta cinco ventiladores y enfriador de CPU de 160 mm
160 mm
Radiador de refrigeración por agua de hasta 280 mm
Jusqu'à un radiateur de refroidissement par eau de 280 mm
日本語
中 文
スモークで透明なフロントパネルデザイン
前面板半透明熏黑设计
5V ARGBマザーボード同期を備えた統合RGBシステム
RGB整合系统支援5V ARGB主机板灯效同步控制功能
MicroATX / MiniITXマザーボードのサポート
支持Micro ATX / Mini ITX 主板
巨大な強化ガラスのサイドウィンドウ
全景钢化玻璃侧窗
最大350mmのグラフィックカード
最高支持 350mm 显卡
最高支持5个风扇和160mm CPU散热器
最大5つのファンと160mmのCPUクーラー
最高支持280mm 水冷排
最大280mmの水冷ラジエーター

Installing the Front I/O Connectors

USB 3.0
USB 2.0
HD AUDIO
POWER SW
POWER LED
USB3.0
USB
HD AUDIO
ACCESSORY KIT
Motherboard screws & 2.5" SSD screws
Power supply screws
3.5" HDD screws & PSU mounting bracket screws
Stand-off for motherboard
Fan screws
2.5" SSD step screws (using with rubbers)
Adapter for removing/installing stand-offs

PSU mounting bracket (for the stability)

Slot covers
Cable ties
POLISH
Przydymiony i przezroczysty panel przedni
Zintegrowany system RGB z synchronizacją płyty głównej
5 V ARGB
Obsługa płyt głównych Micro ATX / Mini ITX
Masywna szyba boczna z hartowanego szkła
Karty graficzne do 350 mm
Do pięciu wentylatorów i 160 mm chłodzenie procesora
Do 280 mm chłodnicy wody chłodzącej
ITALIA
Design del pannello frontale fumé e trasparente
Sistema RGB integrato con sincronizzazione scheda madre
5V ARGB
Supporto per schede madri Micro ATX / Mini ITX
Massiccio finestrino laterale in vetro temperato
Schede grafiche fino a 350 mm
Fino a cinque ventole e dispositivo di raffreddamento della
CPU da 160 mm
Radiatore di raffreddamento ad acqua fino a 280 mm
한국어
훈제되고 투명한 전면 패널 디자인
5V ARGB 마더 보드 동기화를 지원하는 통합 RGB 시스템
Micro ATX / Mini ITX 마더 보드 지원
대형 강화 유리 측면 창
최대 350mm 그래픽 카드
최대 5 개의 팬과 160mm CPU 쿨러
최대 280mm 수냉 라디에이터
H.D.D LED
-
+
X 14
X 4
X 11
X 1
X 8
X 8
X 1
X 1
X 1
X 4
