M X 4 4 0 - A

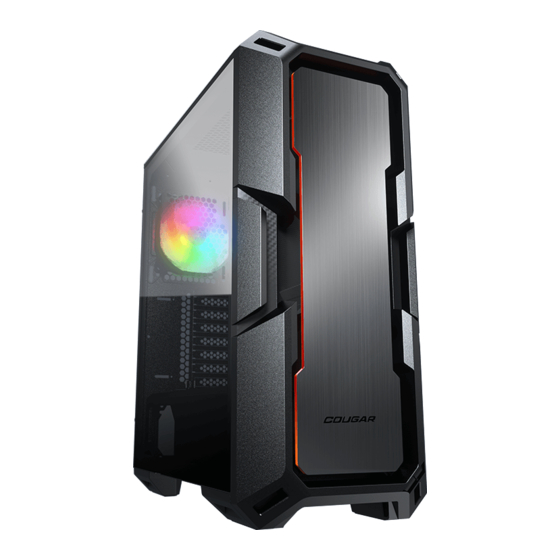

MX440-Aʼs design has continued COUGARʼs iconic sturdy and solid style. With an
included ARGB fan, the tempered glass left panel showcases stunning lighting view.
Besides, it has wide and powerful interior spaces, which allows you to have hardware
expandability, high cooling performance, and abundant storage space.
Distinguished and Unique Design
MX440-Aʼs front panel features bold lines and rugged structures. It is the chassis that
brings the new concept of strength and sturdy. The brushed metal-like texture with
orange borders give it a unique look that makes you stand out among the others.
Attractive RGB Lighting with a Massive Tempered Glass Left Panel
MX440-A comes with an ARGB fan, which allows internal lighting to create mesmerizing effects
from the tempered glass left panel. The full-length PSU cover also helps you to present a clean
and tidy build.
Wider but More Compact and Powerful
MX440-Aʼs 215mm width allows much larger interior space with better cooling performance
and cable management. However, its compact exterior dimension takes up less desktop space.
MX440-A can surely fit a full-sized ATX Motherboard, 320mm-length Graphic card, four 2.5" SSDs,
and two 3.5" HDDs, which allow you to achieve the extreme operation and abundant storage space.
Easy Access and Connectivity for All Your Devices
With USB 3.1 Gen-2 Type-C and USB 3.0 ports, MX440-A connects to the latest devices.
It also brings high-speed connections to fulfill massive data transfer needs for the ultimate
PC enthusiast.
Strong Cooling Performance
MX440-Aʼs interior space supports up to 170mm height CPU air cooler, a 360mm water
cooling radiator, and high-end cooling components. It helps you to protect critical components
from overheating.
Model Name
MX440-A
Model No.
CGR-56C3B-A
Case Form Factor
Mid Tower
Motherboard Type
Mini ITX / Micro ATX / ATX
Dimension
215 (W) x 505 (H) x 424 (D) mm / 8.5 (W) x 19.9 (H) x 16.7 (D) inch
I/O Panel
Type C 3.1 x 1, USB 3.0 x 2, Mic x 1 / Audio x 1, Reset Button
3.5" : 2
Case Drive Bays
2.5" : 4 + 1 (converted from 3.5" drive bays) / (2 SSD trays included)
Expansion Slots
7
Front : 120mm x 3 / 140mm x 2
Cooling Fan Support
Top : 120mm x 2
Rear : 120mm x 1 / 140mm x 1 (120mm ARGB Fan x 1 pre-installed)
Maximum Number of Fans
6 Max.
Front : 360mm / 280mm / 240mm / 140mm / 120mm
Water Cooling Radiator Support
Top : 240mm / 120mm
Rear : 140mm / 120mm
Transparent Left Panel
4mm Tempered Glass
Max. Graphics Card Length
320mm / 12.6inch
Max. CPU Cooler Height
170mm / 6.7inch
Max. PSU Length
150mm / 5.9inch
Specifications might vary depending on the country or region of sale.
Assembly Drawing
FEATURES
ENGLISH
• Impressive brushed metal-like front Panel
• Massive tempered glass left panel
• Support for up to six fans and a 360mm radiator
• Support for up to 320mm long graphics cards
• Support for two 3.5" HDDs and four 2.5" SSDs
DEUTSCH
• Beeindruckende Frontplatte aus gebürstetem Metall
• Linker Abdeckung aus massivem gehärtetem Glas
• Unterstützt bis zu sechs Lüfter und einen 360-mm-Kühlkörper
• Unterstützt Grafikkarten mit einer Länge von bis zu 320 mm
• Unterstützt 2 3,5" Zoll-Festplatten und 4 2,5" Zoll-SSDs
РУССКИЙ
• Впечатляющая матовая металлическая передняя панель
• массивной левой панелью из закаленного стекла
• Поддержка до шести вентиляторов и 360-мм радиатора
• Поддержка видеокарт длиной до 320 мм
• Поддержка двух 3.5-дюймовых жестких дисков и четыре
2.5-дюймовых SSD
ESPAÑOL
• Impresionante panel frontal tipo metal cepillado
• Panel izquierdo de vidrio templado
• Soporta hasta 6 ventiladores y un radiador de 360mm
• Soporte para tarjetas gráficas de hasta 320mm de largo
• Soporte para 2 HDD de 3.5" y 4 SSD de 2.5"
FRANÇAIS
• Panneau avant en métal brossé impressionnant
• Un capot gauche en verre trempé massi
• Prend en charge jusqu'à 6 ventilateurs et un radiateur de 360 mm
• Prend en charge les cartes graphiques jusqu'à 320 mm de longueur
• Prise en charge de 2 disques durs 3,5" et 4 SSD 2,5"
PORTUGUÊS
• Painel frontal em metal escovado impressionante
• Painel lateral esquerdo em vidro temperado
• Suporta até 6 ventoinhas e radiador de 360mm
• Suporta placas gráficas de até 320mm
• Suporta até 2 HDDs de 3.5" e 4 SSDs de 2.5"
POLISH
• Imponujący panel przedni przypominający szczotkowany metal
• Lewej pokrywie z litego szkła hartowanego
• Obsługa maksymalnie 6 wentylatorów i radiatora do 360 mm
• Możliwość montażu kart graficznych o długości do 320 mm
• Obsługa 2 dysków twardych 3,5" i 4 SSD 2,5"
한국어
• 인상적인 브러시 드 메탈과 같은 전면 패널
• 강력한 강화 유리 좌측 덮개가 있는
• 최대 6 개의 팬 및 360mm 라디에이터 지원
• 최대 320mm의 긴 그래픽 카드를 지원
• 3.5" HDD 2개와 2.5" SSD 4개
日本語
• ヘアライン加工が印象的なフロントパネル
• 強化ガラスウィンドウでPCの内部が見えるので内部のパーツを引き立てます
• 6個のファンと360mmの水冷ラジエーターを装着でき、優れた放熱効果を
確保します
• 最大320mmグラフィックカードに対応できます
• 2つの3.5"のHDDと4つの2.5" SSDを搭載可能です
中 文
• 高质感发丝纹仿金属面板
• 全透钢化玻璃左侧盖
• 最高可支援6个风扇与360mm的水冷散热器
• 支援长达320mm的显示卡
• 支援2个 3.5" HDD硬碟与4个 2.5" SSD硬碟
A
H
Power button / Reset button
Slot covers
B
I
TYPE C 3.1 / USB 3.0 / HD audio ports
Air filter for top panel
C
J
Front panel
Air filter for front panel
D
K
Tempered glass side panel
Air filter for bottom panel
E
L
Right side panel
2 x 120mm fans for top panel (optional)
3 x 120mm / 2 x 140mm fans for front panel
F
M
3.5" HDD cage (compatible for 2.5" HDD/SSD)
(optional)
120mm / 140mm fan for rear panel
G
N
2.5" HDD/SSD trays
(1 x 120mm ARGB Fan pre-installed)
Installing the Front I/O Connectors
TYPE C 3.1
USB 3.0
HD AUDIO
POWER SW
HD AUDIO
ACCESSORY KIT
3.5" HDD screws
Motherboard screws and 2.5" SSD screws
Power supply screws
Stand-off
Fan screws
2.5"HDD / SSD EVA washers
Cable ties
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR MX440-A
Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.
Only for electrical components.
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
A
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
B
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,и означают год,
последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
A
B
C
D
E
F
G
H
I
J
1
2
3
4
5
6
7
8
9
0
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg
RESET SW
POWER LED
H.D.D LED
X 8
X 29
X 4
X 3
X 20
X 8
X 5
Например,
AG = 17 = 2017 год
България QR код
