COUGAR MG110-W User Manual

MG110 - W
GAMIN G MINI TOW ER
COUGAR Facebook

Features

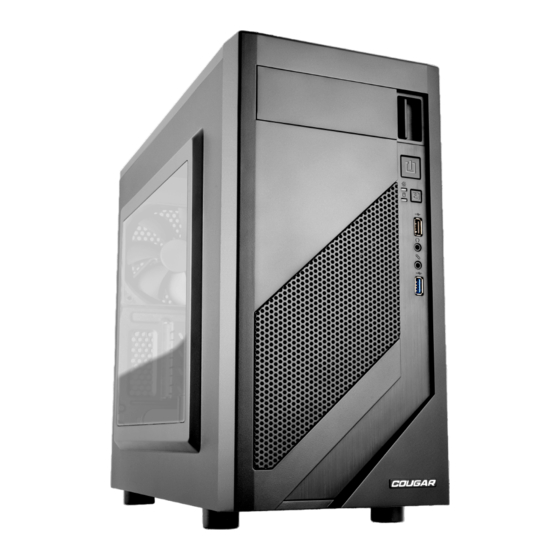

COUGAR MG110-W is a compact gaming mini tower with acrylic transparent side
window design, which provides you enough space for high-end hardware and
expansion to showcase your powerful systems directly. In addition, it supports up to
240mm water cooling radiator and 5 fans for superior cooling performance.
MG110-W gaming mini tower provides you to customize and showcase your
powerful gaming system.
Excellent expandability
Support full-sized graphics cards up to 350mm
●
Support 5.25" device x1/ 3.5" HDD x3/ 2.5" HDD/SSD x3
●
Superior Cooling performance
Support up to 240mm water cooling radiator at front panel
●
Support up to 5 fans for powerful airflow
●
Cable routing channel design keeps all the cables behind the motherboard tray,
●
allowing air to flow unobstructedly and dissipate the internal components' heat.
Highly convenient
Tool-less design for 5.25" and 3.5" drive installation
●
USB 3.0 front panel port for the latest high-speed peripherals
●
Cable routing channel design for easier cable management and better aesthetics
●
Case Type Gaming mini tower
Motherboard Type Mini ITX / Micro ATX
Dimension ( mm ) 198(W)x378(H)x411(D) / 7.8"(W) x 15"(H) x16.2"(D)
5.25" Screwless Drive Bay 1
3.5" Screwless Rail Drive Bay 3
2.5" Drive Bay ( HDD / SSD ) 3
Expansion Slots 4
I / O panel USB 3.0 x1 / USB 2.0 x1 / Mic x1 / Audio x1
Front 120mm x 2
Cooling Fan Support Top 120mm x 1+1 (remove 5.25" cage)
Rear 120mm x 1 (Pre-installed)
Total Fan 5 Max.
Cable Management Yes
Water Cooling Radiator Support Front 240mm/120mm, Rear 120mm
Max. Graphic Cards Length 350mm
Max. CPU Cooler Height 150mm
Power Supply Standard ATX PS2 ( Up to 160mm long )
Acrylic transparent side window Yes

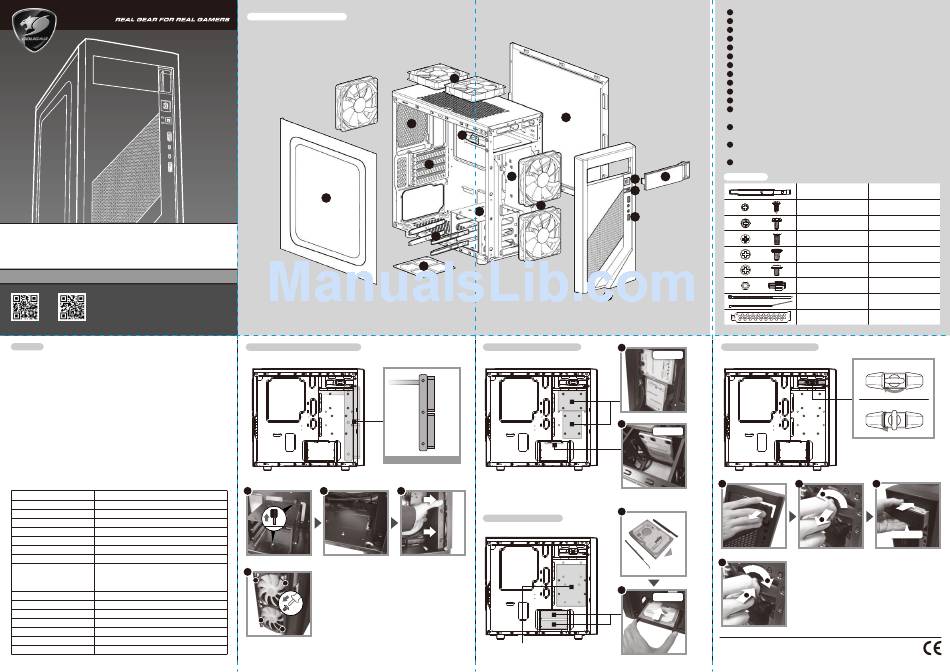

MG110-W Assembly Drawing

N
F
O

How to install water cooling radiator

Water Cooling
1 2 3
4
1
2
3
4
M
G
I
H
J
L
J
K
D
How to install a 2.5" HDD/SSD
How to install a 3.5" HDD
The thickness limits of this 3.5" HDD is < 20mm
Power button.
A
Reset button.
B
C USB 3.0 / USB 2.0 / HD audio ports.
D Removable front panel.
E Removable 5.25" shield.
Acrylic transparent side window cover.
F
Removable right side cover.
G
H Vented slot covers for better cooling performance.
I 5.25" screwless drive bay.
J 2.5" drive bays (HDD/SSD).
3.5" screwless rail drive bays.
K
2 x (optional, purchased separately) 120mm front panel fans or 1 x 240mm
L
radiator(Up to 275 long) for effective cooling performance.
2 x 120mm top cover fans(before installing the front fan, need to remove 5.25"
M
cage) to rapidly exhaust the hot air from the inside and keeping the case cool.
N 1x (pre-installed) 120mm rear panel fan to rapidly exhaust the hot air from
the inside and keeping the case cool.
Air filter on bottom cover to prevent dust from entering the power supply.
O
E

Accessory Kit

A
B
C
1 How to install the 5.25" device

Right side

2
Bay roof
1 2
1
4

Connectors

2
2
1
Right side
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, An Ho Road Sec.
2 Tainan, Taiwan, R.O.C
Tel:+886-6-356-0606
Service E-Mail: service@cougargaming.com
X 4
HDD tray
X 4
for HDD tray
X 5
#6-32 for PSU
X 8
for rear & top fan
X 4
for slot
X 25
M3 for ODD & 2.5" HDD/SSD
X 9
Stand-off
X 5
Cable tie for cable management
X 1
Slot cover
LOCK
UNLOCK
3
1
2
5.25" ODD
www.cougargaming.com
Made in China
Copyright © Compucase Enterprise Co.,Ltd.
