COUGAR MX440-G RGB Assembly Drawing

M X 4 4 0 - G
RGB

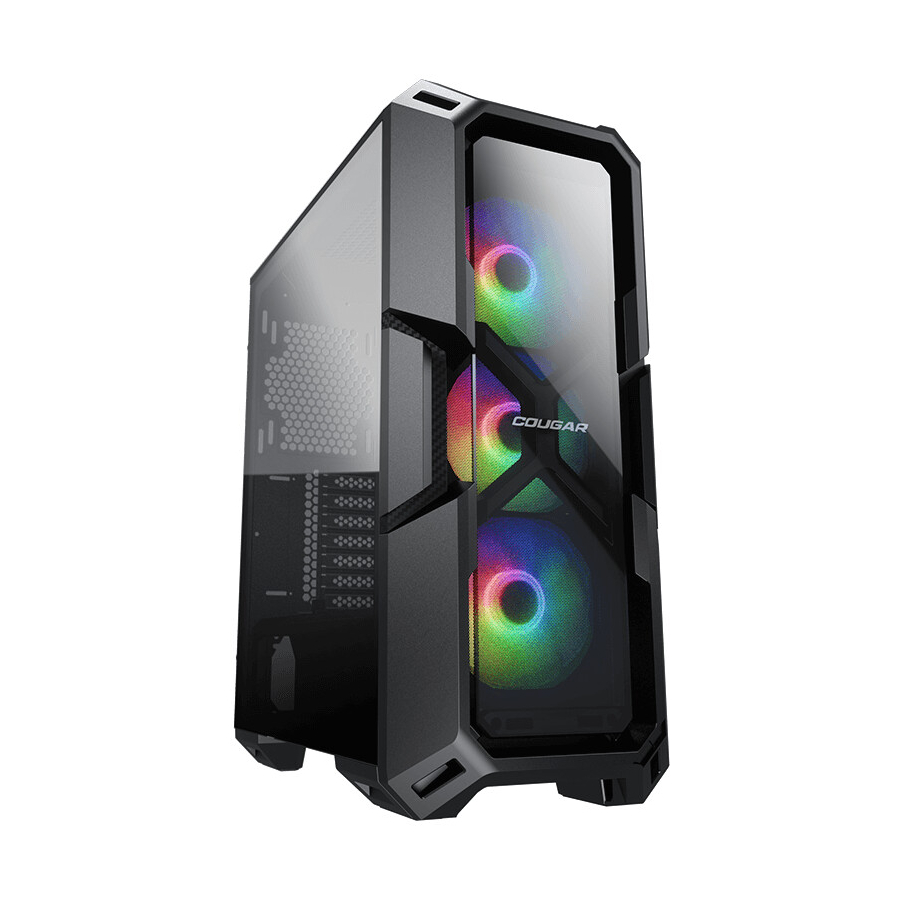

MX440-G RGBʼs design has continued COUGARʼs iconic sturdy and solid style. With
included three ARGB fans, the tempered glass front panel showcases stunning lighting
view. Besides, it has wide and powerful interior spaces, which allows you to have
hardware expandability, high cooling performance, and abundant storage space.

Strength and Sturdy

MX440-G RGBʼs front panel features bold lines and rugged structures. It is the chassis that
brings the new concept of strength and sturdy to the gaming world. Moreover, the tempered
glass front panel allows internal lighting to create mesmerizing effects.

Incredible RGB Lighting

MX440-G RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects
that we have preset for you with the dedicated RGB button.

Massive Tempered Glass Left Panel

With the full-length PSU cover hides cables and a massive tempered glass left panel presents
a clean and tidy build, you can easily build a pro-level system.

Wider but More Compact and Powerful

MX440-G RGBʼs 215mm width allows much larger interior space with better cooling
performance and cable management. However, its compact exterior dimension takes
up less desktop space. MX440-G RGB can surely fit a full-sized ATX Motherboard,
320mm-length Graphic card, four 2.5" SSDs, and two 3.5" HDDs, which allow you to
achieve the extreme operation and abundant storage space.

Sufficient for Multiple USB Devices

The top panel is equipped with two USB 3.0 ports and one USB 2.0 ports, let you easily
connect multiple peripheral devices and accessory charging. Not only optimize your processing
experiences, but also keep all USB devices without limitations.

Strong Cooling Performance

MX440-G RGBʼs interior space supports up to 170mm height CPU air cooler, a 360mm
water cooling radiator, and high-end cooling components. It helps you to protect critical
components from overheating.
Model Name MX440-G RGB
Model No. CGR-56C2B-G-RGB
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX
Dimension 215 (W) x 505 (H) x 424 (D) mm / 8.5 (W) x 19.9 (H) x 16.7 (D) inch
I/O Panel USB 3.0 x 2 , USB 2.0 x 1 , Mic x 1, Audio x 1 , RGB Button
3.5" : 2
Case Drive Bays
2.5" : 4 + 1 (converted from 3.5" drive bays) / (2 SSD trays included)
Expansion Slots 7
Front : 120mm x 3 / 140mm x 2 (120mm ARGB Fans x 3 pre-installed)
Cooling Fan Support Top : 120mm x 2
Rear : 120mm x 1 / 140mm x 1
Maximum Number of Fans 6 Max.
Front : 360mm / 280mm / 240mm / 140mm / 120mm
Water Cooling Radiator Support Top : 240mm / 120mm
Rear : 140mm / 120mm
Transparent Left Panel 4mm Tempered Glass
Max. Graphics Card Length 320mm / 12.6inch
Max. CPU Cooler Height 170mm / 6.7inch
Max. PSU Length 150mm / 5.9inch
Specifications might vary depending on the country or region of sale.
Assembly Drawing

FEATURES

ENGLISH
• Included three ARGB fans at the front panel with variant RGB
lighting modes
• Massive tempered glass left panel
• Support for up to six fans and a 360mm radiator
• Support for up to 320mm long graphics cards
• Support for two 3.5" HDDs and four 2.5" SSDs
DEUTSCH
• Enthält drei ARGB-Lüfter an der Vorderseite mit verschiedenen
RGB-Beleuchtungsmodi
• Linker Abdeckung aus massivem gehärtetem Glas
• Unterstützt bis zu sechs Lüfter und einen 360-mm-Kühlkörper
• Unterstützt Grafikkarten mit einer Länge von bis zu 320 mm
• Unterstützt 2 3,5" Zoll-Festplatten und 4 2,5" Zoll-SSDs
РУССКИЙ
• Включены три вентилятора ARGB на передней панели с
различными режимами освещения RGB
• массивной левой панелью из закаленного стекла
• Поддержка до шести вентиляторов и 360-мм радиатора
• Поддержка видеокарт длиной до 320 мм
• Поддержка двух 3.5-дюймовых жестких дисков и четыре
2.5-дюймовых SSD
ESPAÑOL
• Incluye tres ventiladores ARGB en el panel frontal con
diferentes modos de iluminación RGB
• Panel izquierdo de vidrio templado
• Soporta hasta 6 ventiladores y un radiador de 360mm
• Soporte para tarjetas gráficas de hasta 320mm de largo
• Soporte para 2 HDD de 3.5" y 4 SSD de 2.5"
FRANÇAIS
• Inclus trois ventilateurs ARGB sur le panneau avant avec
différents modes d'éclairage RVB
• Un capot gauche en verre trempé massi
• Prend en charge jusqu'à 6 ventilateurs et un radiateur de 360 mm
• Prend en charge les cartes graphiques jusqu'à 320 mm de longueur
• Prise en charge de 2 disques durs 3,5" et 4 SSD 2,5"
PORTUGUÊS
• Inclui três ventoinhas ARGB no painel frontal com modos de
iluminação RGB variantes
• Painel lateral esquerdo em vidro temperado
• Suporta até 6 ventoinhas e radiador de 360mm
• Suporta placas gráficas de até 320mm
• Suporta até 2 HDDs de 3.5" e 4 SSDs de 2.5"
POLISH
• Zawiera trzy wentylatory ARGB na przednim panelu z różnymi
trybami oświetlenia RGB
• Lewej pokrywie z litego szkła hartowanego
• Obsługa maksymalnie 6 wentylatorów i radiatora do 360 mm
• Możliwość montażu kart graficznych o długości do 320 mm
• Obsługa 2 dysków twardych 3,5" i 4 SSD 2,5"
한국어
• 전면 패널에 다양한 RGB 조명 모드를 갖춘 3 개의 ARGB 팬 포함
• 강력한 강화 유리 좌측 덮개가 있는
• 최대 6 개의 팬 및 360mm 라디에이터 지원
• 최대 320mm의 긴 그래픽 카드를 지원
• 3.5" HDD 2개와 2.5" SSD 4개
日本語
• フロントパネルに3つのARGBファンを装備し、RGB照明モードを変更
• 強化ガラスウィンドウでPCの内部が見えるので内部のパーツを引き立てます
• 6個のファンと360ｍｍの水冷ラジエーターを装着でき、優れた放熱効果を
確保します
• 最大320mmグラフィックカードに対応できます
• 2つの3.5"のHDDと4つの2.5" SSDを搭載可能です
中 文
• 前面板3个ARGB风扇预设多种灯效模式
• 全透钢化玻璃左侧盖
• 最高可支援6个风扇与360mm的水冷散热器
• 支援长达320mm的显示卡
• 支援2个 3.5" HDD硬碟与4个 2.5" SSD硬碟
A H
Power button / RGB button Slot covers
B I
USB 3.0 / USB 2.0 / HD audio ports Air filter for top panel
C J
Front panel Air filter for front panel
D K
Tempered glass side panel Air filter for bottom panel
E L
Right side panel 2 x 120mm fans for top panel (optional)
3 x 120mm / 2 x 140mm fans for front panel
F M
3.5" HDD cage (compatible for 2.5" HDD/SSD)
(3 x 120mm ARGB Fans pre-installed)
G N
2.5" HDD/SSD trays 120mm / 140mm fan for rear panel (optional)

Installing the Front I/O Connectors

USB 3.0 USB 2.0 HD AUDIO POWER SW
USB
HD AUDIO
ACCESSORY KIT
3.5" HDD screws
Motherboard screws and 2.5" SSD screws
Power supply screws
Stand-off
Fan screws
2.5"HDD / SSD EVA washers
Cable ties
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR MX440-G RGB
Warranty : 1 Year
● This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.
● Only for electrical components.
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
A После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
B После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,и означают год,
последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
A B C D E F G H I J
1 2 3 4 5 6 7 8 9 0
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg
POWER LED H.D.D LED
X 8
X 29
X 4
X 3
X 20
X 8
X 5
Например,
●
AG = 17 = 2017 год
България QR код
