COUGAR MX430 AIR RGB Manual

M X 43 0 A I R
RGB
COMPACT ARGB MID TOWER CASE WITH MODERN PATTERNED AIR VENTS

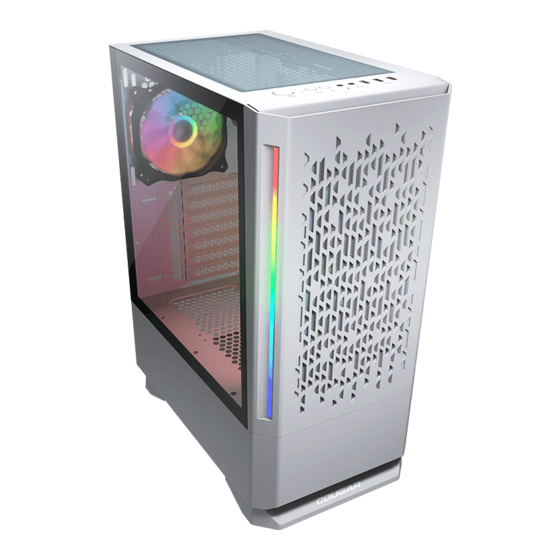

We've made COUGAR PC cases even better. The new patterned air vents and the LED strips
create a special outlook for your amazing build. Three gorgeous ARGB fans, mighty support for
up a 280mm radiator, a 320mm graphic card, and a 175mm CPU cooler deliver superior value
for you.
PATTERNED AIR VENTS DESIGN
MX430 Air RGB's front panel features patterned air vents design. It is the chassis that integrates the new
concept of minimalist aesthetic and cooling performance. The hollow areas also allow internal lighting to
create mesmerizing light effects.
INCREDIBLE RGB LIGHTING
MX430 Air RGB comes with 3 ARGB fans and 2 LED strips. You are freely to control several amazing
lighting effects with the dedicated RGB button. The built-in LED controller also adaptable with any
compatible motherboards' 5V ARGB connection for system-wide lighting synchronization. The stunning
light come out of a stylish panel helps reinforce the RGB effects.
TOP-NOTCH COOLING
MX430 Air RGB's compact layout allows you to install six fans, a 280mm water cooling radiator,and a
175mm CPU cooler. This immense cooling potential will enable you to choose components freely.
GREAT SUPPORT FOR COMPONENTS
Its advanced support for up to 320mm-long graphics cards, which allows you to enjoy the latest games
with smooth framerates.
CLEAN AND TIDY LOOKS
The PSU cover extends the color from the front panel. Unlike most massive tempered glass panels, it
presents a distinctive view of divided design. The full-length PSU cover also allows you to hide the cables,
improve the internal airflow, and showcase a clean build!
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR MX430 AIR RGB
Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights granted under local law.
●
These rights may vary.
Only for electrical components.
●
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
A
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
B
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,
и означают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
A B C D E F G H I J
● Например,
1 2 3 4 5 6 7 8 9 0
AG = 17 = 2017 год

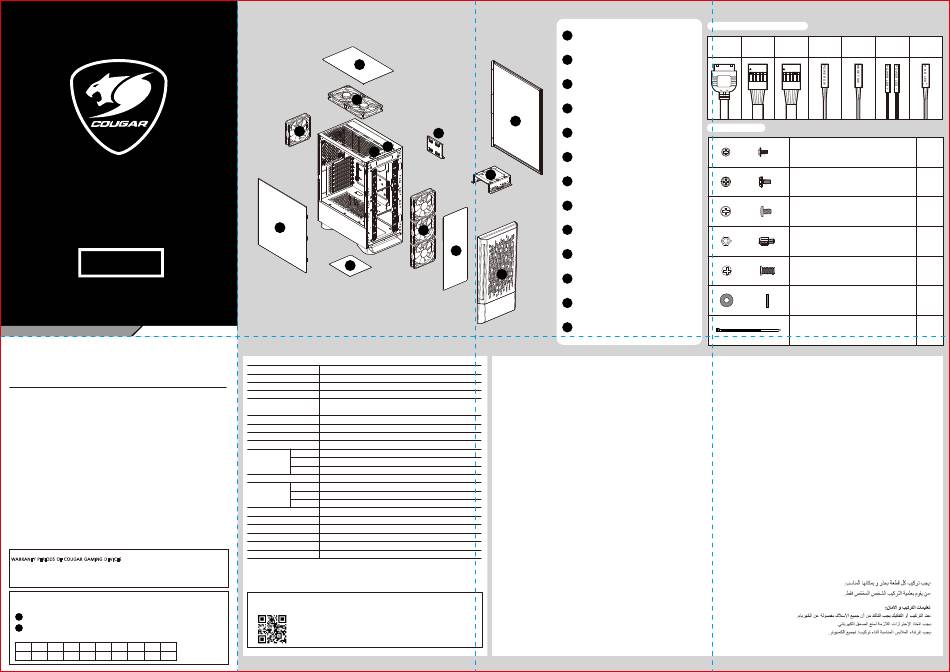

Assembly Drawing
L
J
I
B
A
D
H
M
Model Name
MX430 AIR RGB (BLACK) / (WHITE)
Model No.
CGR-51C6B-AIR-RGB /CGR-51C6W-AIR-RGB
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX
217 (W) x 467 (H) x 371 (D) mm
Dimensions (WxHxD)
8.5 (W) x 18.4 (H) x 14.6 (D) in
I/O Panel USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, Reset Button, RGB Button
3.5" Drive Bay 2
2.5" Drive Bay
3+1 (converted from 3.5" drive bays) / (1 SSD tray included)
Expansion Slots 7
Front 120mm x 3 / 140mm x 2 (120mm ARGB fan x 2 pre-installed)
Cooling Fan
Top 120mm x 2 / 140mm x 2
Support
Rear 120mm x 1 / 140mm x1 (120mm ARGB fan x 1 pre-installed)
Maximum Number of Fans 6 Max.
Front 280mm / 240mm / 140mm / 120mm
Water Cooling
Top 240mm / 120mm
Support
Rear 140mm / 120mm
Transparent Left Panel
4mm Tempered Glass
Onboard Lighting System
Yes
RGB Sync with M/B Yes
Max. Graphics Card Length
320 (mm) / 12.6 in
Max. CPU Cooler Height 175 (mm) / 6.9 in
Max. PSU Length
160 (mm) / 6.3 in
Specifications might vary depending on the country or region of sale.
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg
България QR код
A
Power button / RGB button / Reset button
B
USB 3.0 / USB 2.0 / HD audio ports
C
Front panel
D
Tempered glass side panel
E
G E
Right side panel
F
3.5" HDD cage (compatible for 2.5" HDD/SSD)
F
G
2.5" HDD/SSD tray
3 x 120mm / 2 x 140mm fans for front panel
H
(120mm ARGB fans x 2 pre-installed)
1 x 120mm / 1x 140mm fan for rear panel
I
(120mm ARGB fan pre-installed)
K
2 x 120mm / 2 x 140mm fans for top panel
J
(optional)
C
K
Air filter for front panel
L
Air filter for top panel
M
Air filter for bottom panel
ENGLISH
• Distinctive front panel with patterned air vents
• Integrated RGB system with 5V ARGB motherboard
synchronization
• Support for ATX motherboards
• Massive tempered glass side window
• Up to 320mm graphics cards
• Up to six fans and 175mm CPU cooler
• Up to a 280mm water cooling radiator
DEUTSCH
• Markante Frontplatte mit gemusterten Lüftungsschlitzen
• Integriertes RGB-System mit 5V ARGB-Motherboard-
Synchronisation
• Unterstützung für ATX Motherboards
• Massives Seitenfenster aus gehärtetem Glas
• Bis zu 320 mm Grafikkarten
• Bis zu sechs Lüfter und 175 mm CPU-Kühler
• Bis zu 280 mm Wasserkühler
ESPAÑOL
• Panel frontal distintivo con salidas de aire estampadas
• Sistema RGB integrado con sincronización de placa base
ARGB de 5 V
• Soporte para placas base ATX
• Ventana lateral de vidrio templado masivo
• Tarjetas gráficas de hasta 320 mm
• Hasta seis ventiladores y enfriador de CPU de 175 mm
• Radiador de refrigeración por agua de hasta 280 mm
日本語
• パターン化された通気孔を備えた特徴的なフロントパネル
• 5V ARGBマザーボード同期を備えた統合RGBシステム
• ATXマザーボードのサポート
• 巨大な強化ガラスのサイドウィンドウ
• 最大320mmのグラフィックカード
• 最大6つのファンと175mmのCPUクーラー
• 最大280mmの水冷ラジエーター
Installing the Front I/O Connectors
USB 3.0 USB 2.0 HD AUDIO POWER SW RESET SW POWER LED
USB3.0
USB
HD AUDIO
ACCESSORY KIT
Motherboard screws & 2.5" SSD screws
Power supply screws
3.5" HDD screws
Stand-off for motherboard
Fan screws
2.5"HDD / SSD EVA washers
Cable ties
PORTUGUÊS POLISH
• Charakterystyczny panel przedni z wzorzystymi otworami
• Painel frontal distinto com saídas de ar padronizadas
wentylacyjnymi
• Sistema RGB integrado com sincronização da placa-mãe
• Zintegrowany system RGB z synchronizacją płyty głównej 5 V
5V ARGB
ARGB
• Suporte para placas-mãe ATX
• Obsługa płyt głównych ATX
• Janela lateral de vidro temperado maciço
• Masywna szyba boczna z hartowanego szkła
• Placas gráficas de até 320 mm
• Karty graficzne do 320 mm
• Até seis ventiladores e cooler para CPU de 175 mm
• Do sześć wentylatorów i 175 mm chłodzenie procesora
• Radiador de refrigeração de água de até 280 mm • Do 280 mm chłodnicy wody chłodzącej
РУССКИЙ ITALIA
• Отличительная передняя панель с узорчатыми
• Pannello frontale distintivo con prese d'aria a motivi geometrici
вентиляционными отверстиями.
• Sistema RGB integrato con sincronizzazione scheda madre 5V
• Интегрированная система RGB с синхронизацией ARGB
материнской платы 5V ARGB • Supporto per schede madri ATX
• Поддержка материнских плат ATX
• Massiccio finestrino laterale in vetro temperato
• Массивное боковое окно из закаленного стекла.
• Schede grafiche fino a 320 mm
• Видеокарты до 320 мм • Fino a sei ventole e dispositivo di raffreddamento della CPU
• До шесть вентиляторов и 175-мм кулер для процессора da 175 mm
• Радиатор водяного охлаждения диаметром до 280 мм. • Radiatore di raffreddamento ad acqua fino a 280 mm
FRANÇAIS 한국어
• Panneau avant distinctif avec bouches d'aération à motifs
• 패턴이있는 통풍구가있는 독특한 전면 패널
• Système RVB intégré avec synchronisation de la carte
• 5V ARGB 마더 보드 동기화를 지원하는 통합 RGB 시스템
mère ARGB 5V
• Prise en charge des cartes mères ATX • ATX 마더 보드 지원
• Vitre latérale massive en verre trempé
• 대형 강화 유리 측면 창
• Cartes graphiques jusqu'à 320 mm
• 최대 320mm 그래픽 카드
• Jusqu'à six ventilateurs et refroidisseur de processeur de
• 최대 6 개의 팬과 175mm CPU 쿨러
175 mm
• Jusqu'à un radiateur de refroidissement par eau de 280 mm • 최대 280mm 수냉 라디에이터
中 文
• 前面板独特异形通风孔设计
• RGB整合系统支援5V ARGB主机板灯效同步控制功能
• 支持ATX主板
• 全景钢化玻璃侧窗
• 最高支持 320mm 显卡
• 最高支持6个风扇和175mm CPU散热器
• 最高支持280mm 水冷排
H.D.D LED
X 25
X 4
X 8
X 3
X 8
X 8
X 5
