COUGAR MX620 RGB User Manual

MX620
RGB

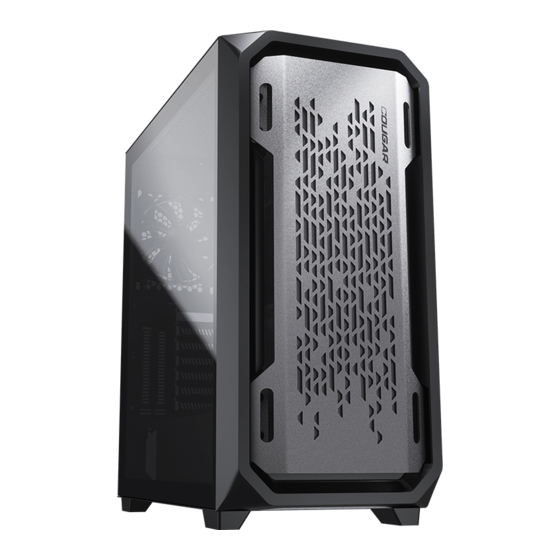

STYLISH ARGB MID TOWER CASE WITH MODERN PATTERNED AIR VENTS

MX620 RGB is a stylish mid tower case features modern design and tempered glass left panel.
The front panel has patterned air vents design, which shows perfect combination of visual effects,
powerful airflow, and sturdy quality. With three included ARGB fans, the amazing light creates
visually impressive RGB shows. It also has excellent cooling performance and superior expandability
for high-end hardware and storage devices. MX620 RGB is the most ideal and valuable case for PC
enthusiasts and professionals.

IMPRESSIVE, EXCLUSIVE AND ATTRACTIVE

MX620 RGB has a brilliant front panel featuring modern steel construction. The front panel is designed with
impressive style, which is forged with fine metal and distinctive looks. The patterned air vents not only present
a unique design but also enhance cooling performance.

ENJOY THE DAZZLING RGB SHOW

The integrated lighting button with built-in LED controller allows MX620 RGB to display amazing lighting effects.
It's also adaptable with any compatible motherboards' 5V ARGB connection for system-wide lighting
synchronization. The powerful lights come out of a stylish panel and the reflective surroundings helps reinforce
the RGB effects.

THREE ARGB FANS INCLUDED

With 3 pre-installed ARGB fans at the front panel, MX620 RGB delivers powerful and bright RGB lighting
effects. The illumination provides both excellent cooling and amazing lighting show.

MASSIVE TEMPERED GLASS LEFT PANEL

The PSU cover and massive tempered glass left panel presents a clean and tidy build that hides cables.
Instead of drilling into the tempered glass, we use metal frames to more easily build a pro-level system and
upgrade its durability.

TOP-NOTCH GAMING HARDWARE

To offer top-notch performance, MX620 RGB is able to accommodate a mighty build. Its excellent
support for up to 400mm-long graphics cards and E-ATX motherboards brings unprecedented freedom
for hardware systems.

SUPERIOR COOLING

With seven fans and solid support for up to a 360mm water cooling radiator, you will enjoy superior
cooling horsepower to keep advanced components safe from overheating.
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR GAMING DEVICES
Product : COUGAR MX620 RGB
Warranty : 1 Year
This warranty gives you specific legal rights. You may also have other rights granted under local law.
●
These rights may vary.
Only for electrical components.
●
ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
A
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.
B
После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,
и означают год, последующие две цифры – месяц изготовления.
Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.
A B C D E F G H I J
● Например,
1 2 3 4 5 6 7 8 9 0
AG = 17 = 2017 год

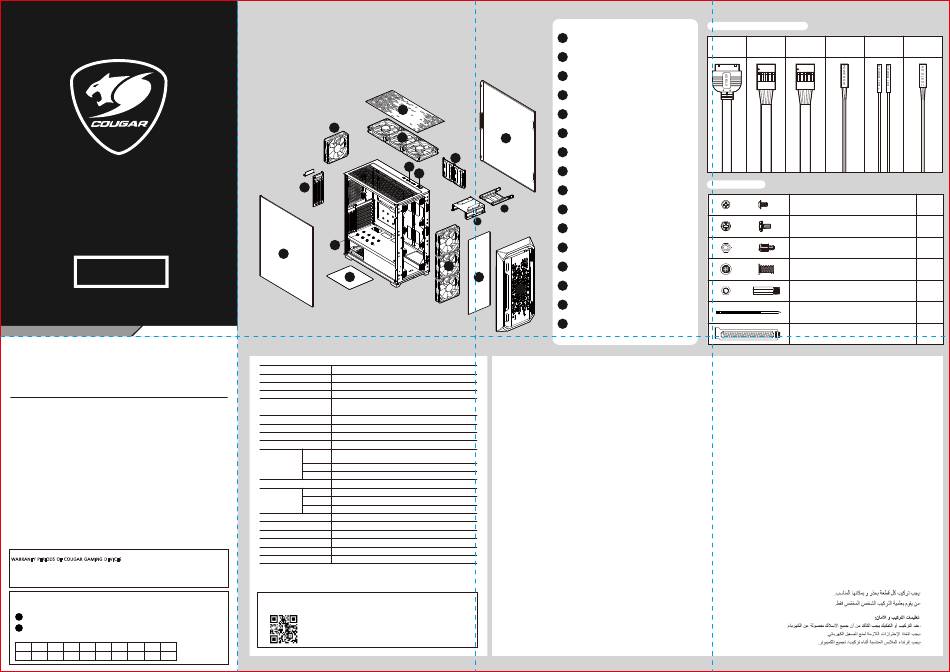

Assembly Drawing

L
J
K
B
A
O
P
D
M
Model Name
MX620 RGB
Model No.
CGR-5UM7B-RGB
Case Form Factor Mid Tower
Motherboard Type Mini ITX / Micro ATX / ATX / CEB / E-ATX
220 (W) x 487 (H) x 464 (D) mm
Dimensions (WxHxD)
8.7 (W) x 19.2 (H) x 18.3 (D) in
I/O Panel USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button
3.5" Drive Bay 2
2.5" Drive Bay
2+2 (converted from 3.5" drive bays) / (2 SSD trays included)
Expansion Slots 7+2
*120mm x 3 / 140mm x 3
Front
(ARGB fans x 3 pre-installed)
Cooling Fan
Support Top
120mm x 3 / 140mm x 2
Rear 120mm x 1
Maximum Number of Fans 7 Max.
Front
*360mm / 280mm / 240mm / 140mm / 120 mm
Water Cooling
Top *360mm / 280mm / 240mm / 140mm / 120 mm
Support
Rear
120mm
Transparent Left Panel
4mm Tempered Glass
Onboard Lighting System Yes
RGB Sync with M/B
Yes
Max. Graphics Card Length 400 (mm) / 15.7 in
Max. CPU Cooler Height
170 (mm) / 6.7 in
Max. PSU Length 180 (mm) / 7.1 in
Specifications might vary depending on the country or region of sale.
*Please choose either of front or top to install a 360mm radiator.
*Please choose either of a TOP 360mm radiator or FRONT 120mm x 3 fans to install.
БЪЛГАРИЯ
• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg
България QR код
A
Power button / RGB button
B
USB 3.0 / USB 2.0 / HD audio ports
C
Front panel
D
Tempered glass side panel
E
Right side panel
F
3.5" HDD cage (compatible for 2.5" HDD/SSD)
E
G
3.5" HDD tray (compatible for 2.5" HDD/SSD)
H
H
2.5" HDD/SSD trays
3 x 120mm / 3 x 140mm fans for front panel
I
(ARGB fans x 3 pre-installed)
G J
120mm fan for rear panel (optional)
F
3 x 120mm / 2 x 140mm fans for top panel
K
(optional)
L
Air filter for top panel
I
M
Air filter for bottom panel
N
N
Air filter for front panel
C
O
Vertical slot covers
P
Rubber screws of 2.5" SSD trays
ENGLISH
Stylish front panel features patterned air vents design
●
● Integrated RGB system with 5V ARGB motherboard synchronization
Massive tempered glass left panel
●
● Support for up to E-ATX motherboard
● Support for up to a 360mm water cooling radiator and seven fans
Support for up to 400mm graphics cards
●
● Support for vertical GPU
Support for two 3.5" HDDs and two 2.5" SSDs or four 2.5" SSDs.
●
DEUTSCH
● Die stilvolle Frontplatte verfügt über ein gemustertes
Lüftungsschlitzdesign
Integriertes RGB-System mit 5-V-ARGB-Motherboard-
●
Synchronisierung
● Linke Blende aus massivem Hartglas
● Unterstützt Motherboards bis E-ATX
● Unterstützt einen Wasserkühlkörper bis 360 mm und sieben
Lüfterherboard
Unterstützt Grafikkarten bis 400mm
●
● Unterstützt vertikale GPU
● Unterstützt zwei 3,5-Zoll-Festplatten und zwei 2,5-Zoll-SSDs oder
vier 2,5-Zoll-SSDs
ESPAÑOL
● El elegante panel frontal presenta un diseño de salidas de aire
estampadas
● Sistema RGB integrado con sincronización de placa base con 5V ARGB
Panel izquierdo de cristal templado masivo
●
● Soporte para la placa madre de hasta E-ATX
Soporte para un radiador de refrigeración de agua de hasta
●
360 mm y siete ventiladores
Soporte para tarjetas gráficas de hasta 400mm
●
● Soporte para la GPU vertical
Soporte para dos discos duros de 3,5" y dos SSD de 2,5" o
●
cuatro SSD de 2,5"
日本語
● スタイリッシュなフロントパネルは、パターン化された通気孔のデザインを備えています
ARGBシステムは5VのマザーボードのRGB効果に同期します
●
強化ガラスウィンドウでPCの内部が見えるので内部のパーツを引き立てます
●
● E-ATXマザーボードに対応
7個のファンと360ｍｍの水冷ラジエーターを装着でき、優れた放熱効果を確
●
保します
● 最大400mmグラフィックカードに対応できます
● グラフィックカードを垂直に取付可能
3.5"のHDDを2個と2.5" SSDを2個もしくは2.5"SSDを4個搭載可能
●
Installing the Front I/O Connectors
TYPE-C 3.1 USB 3.0 USB 2.0 USB 3.0 HD AUDIO HD AUDIO POWER SW POWER SW
USB HD AUDIO HD AUDIO
ACCESSORY KIT
Motherboard screws & 2.5" SSD screws
Power supply screws & 3.5" HDD screws
Stand-off for motherboard
Fan screws
Stand-off for VGA riser cable
Cable ties
Slot covers
PORTUGUÊS POLISH
O painel frontal elegante apresenta um design padronizado de ● Stylowy panel przedni ma wzorzyste otwory wentylacyjne
●
saídas de ar
● Zintegrowany system RGB zsynchronizowany z płytą główną
● Sistema RGB integrado com sincronização de placa mãe de
przez złącze ARGB 5 V
5V ARGB
Lewy panel ze szkła hartowanego
●
● Painel esquerdo em vidro maciço temperado
● Obsługa płyt głównych do E-ATX
● Apoio até à placa-mãe E-ATX
Obsługa chodnicy wodnej o szerokości do 360 mm i siedmiu
●
Suporte para um radiador de arrefecimento a água até 360mm e
●
wentylatorów
sete ventiladores
Obsługa kart graficznych o długości do 400mm
Suporte para placas gráficas até 400mm ●
●
● Suporte para GPU vertical ● Obsługa procesora graficznego montowanego pionowo
● Suporte para dois HDD de 3,5" e dois SSD de 2,5" ou quatro SSD Obsługa dwóch dysków twardych 3.5" HDD i dwóch dysków
●
de 2,5"
2.5" SSD lub cztery dysków 2.5" SSD
РУССКИЙ ITALIA
● Стильная передняя панель с узорчатыми вентиляционными L'elegante pannello frontale presenta un design con
●
отверстиями prese d'aria a motivi geometrici
Интегрированная система RGB подсветки с 5V ARGB
● ● Sistema RGB integrato con sincronizzazione della
синхронизацией материнской платы
scheda madre ARGB 5 V
● Массивная боковая панель из закаленного стекла Pannello sinistro in vetro temperato massiccio
●
● Поддержка всех материнских плат до формата E-ATX Supporto fino a una scheda madre E-ATX
●
Поддержка водяного охлаждения радиатора размером до
● ● Supporto per un radiatore per raffreddamento ad acqua
360 мм и cемь вентиляторов
fino a 360 mm e sette ventole
● Поддержка всех видеокарт размером до 400 мм Supporto per schede grafiche fino a 400mm
●
● Поддержка вертикального графического процессора Supporto per GPU verticale
●
● Поддержка двух 3.5-дюймовых HDD и двух 2.5-дюймовых ● Supporto per due HDD da 3,5" e due SSD da 2,5" o
SSD или четыре 2.5-дюймовых SSD.
quattro SSD da 2,5"
FRANÇAIS
한국어
● Le panneau avant élégant présente des motifs d'aération ●
스타일리시 한 전면 패널에는 패턴이있는 통풍구 디자인
● Système RGB intégré avec synchronisation de la carte mère
● 5V ARGB 마더 보드 동기화 기능이있는 통합 RGB 시스템
ARGB 5V
Panneau gauche en verre trempé massif ● 좌측 패널의 크고 단단한 대형 강화유리
●
● Prise en charge des cartes mères jusqu'à E-ATX
● 최대 E-ATX 마더보드 지원
Prise en charge d'un radiateur de refroidissement à eau de
●
● 최대 360mm 수랭식 라디에이터 및 팬 7개 지원
360 mm et de sept ventilateurs
Prise en charge des cartes graphiques jusqu'à 400mm
● ● 최대 400mm 그래픽 카드 지원
● Compatible avec les GPU verticaux
● 수직 GPU 지원
Compatible avec deux disques durs de 3,5" et deux disques durs
●
de 2,5" ou quatre disques durs de 2,5" ● 3.5" HDD 2개 및 2.5" SSD 2개 또는 2.5" SSD 4개 지원
中 文
● 前面板采用独特新颖的异形通风孔设计
● RGB整合系统支援5V ARGB主机板灯效同步控制功能
全景透视钢化玻璃左侧盖
●
● 最高支援E-ATX主机板
最高支援360mm水冷排与7个风扇
●
● 最高可安装400mm显卡
支援显卡垂直安装
●
● 支援2个 3.5英寸 HDD硬盘(可转换为2个2.5英寸SSD硬盘)
与4个2.5英寸SSD硬盘
POWER LED POWER LED H.D.D LED H.D.D LED
X 19
X 13
X 3
X 12
X 2
X 4
X 2
