Summary of Contents for SHOWTEC LED Par 64 Q4-12

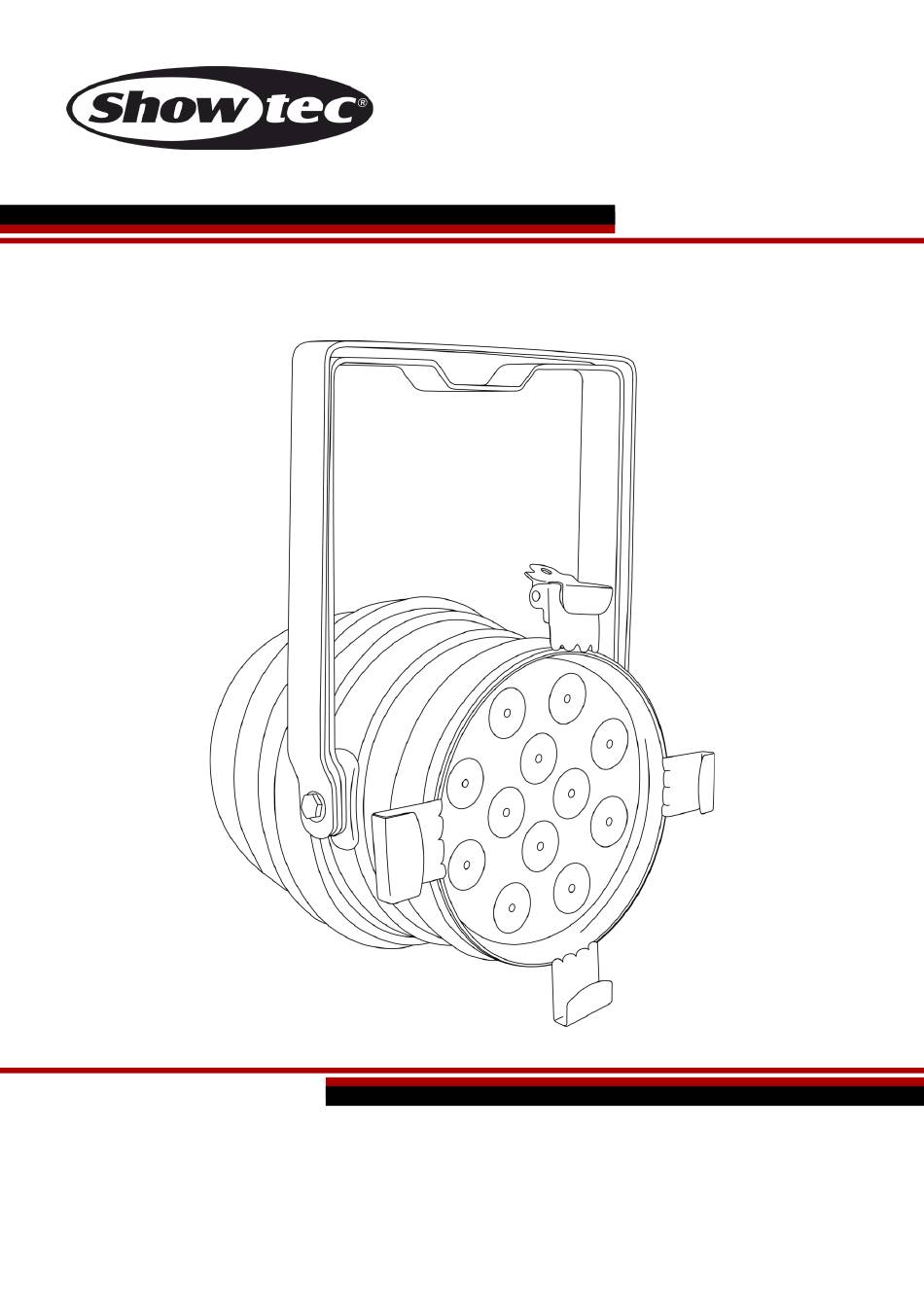

- Page 1 MANUAL ENGLISH LED Par 64 Q4-12 Ordercode: 42466 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
LED Par 64 Q4-12 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains ............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Frontside.................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec LED Par 64 Q4-12 • 1 x color frame •... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
LED Par 64 Q4-12 • The user is responsible for correct positioning and operating of the Par. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
LED Par 64 Q4-12 The Par can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
LED Par 64 Q4-12 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

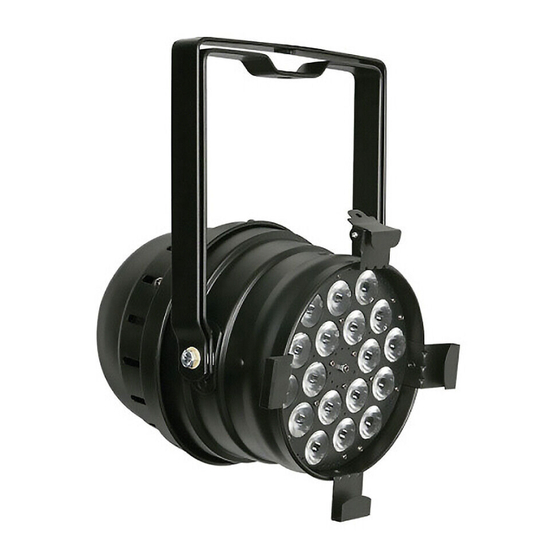

LED Par 64 Q4-12 Description of the device Features The LED Par 64 Q4-12 is a LED parcan fixture, with high output and great effects. Input voltage: 100-240V, 60/50Hz • Power consumption: 70W • DMX channels: 4, 5 and 8 channels •... -
Page 9: Backside
07) Fuse: 1,5A/250V Installation Remove all packing materials from the LED Par 64 Q4-12. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Color Frame Retaining Clip
LED Par 64 Q4-12 Color frame retaining clip 01) Press and hold down the color frame retaining clip. 02) Insert the color frame into the bracket. 03) Release the color frame retaining clip in order to secure the color frame in position. -
Page 11: Multiple Pars (Master/Slave Control)
LED Par 64 Q4-12 Multiple Pars (Master/Slave control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Use a 3-pin XLR cable to connect the Par. The pins: Earth... -
Page 12: Multiple Pars (Dmx Control)
LED Par 64 Q4-12 Multiple Pars (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Pars and other devices. -
Page 13: Fixture Linking
LED Par 64 Q4-12 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 14: Control Panel
LED Par 64 Q4-12 The LED Par 64 Q4-12 can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) 4-digit LED display MODE button C) SETUP button D) UP button DOWN button Fig. -
Page 15: Menu Overview
LED Par 64 Q4-12 Menu Overview Ordercode: 42466... -
Page 16: Main Menu Options
LED Par 64 Q4-12 Main Menu Options Built-in programs Auto Mode DMX-512 Mode Master/Slave Mode (Manual Mode) Red 1. Built-in programs With this mode, you can set the built-in programs. 01) Press the MODE button until the display shows 02) Press the UP/DOWN buttons to toggle between the 11 available built-in programs. -
Page 17: Auto Mode
LED Par 64 Q4-12 05) Press the SETUP button to activate the desired color preset. 06) Repeatedly press the SETUP button to toggle between the current preset’s constituent colors. 07) Press the UP/DOWN buttons to increase/decrease the intensity of the colors. The adjustment range of each color is between 000-255, from OFF to FULL ON. -
Page 18: Sound-Controlled Mode
LED Par 64 Q4-12 5. Sound-controlled Mode With this menu, you can set the device’s sound sensitivity. 01) Press the MODE button until the display shows 02) Press the UP/DOWN button to increase/decrease the sound sensitivity. The adjustment range is between 00-31, from OFF to high sensitivity. -
Page 19: Channels
LED Par 64 Q4-12 8 channels Channel 1 – Dimmer 0-255 Gradual dimmer adjustment 0-100%, from dark to brightest Channel 2 – Red Dimmer must be open and CH7 must be set between 0-1 0-255 Gradual adjustment Red, from dark to brightest Channel 2 –... - Page 20 LED Par 64 Q4-12 Channel 2 – Sound Sensitivity Dimmer must be open and CH7 must be set between 253-255 0-255 Sound sensitivity adjustment, from low to high Channel 3 – Green Dimmer must be open and CH7 must be set between 0-1...
-
Page 21: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The LED Par 64 Q4-12 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 22: Troubleshooting
01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LED. Return the LED Par 64 Q4-12 to your Showtec dealer. 03) The fuse. Replace the fuse. See page 20 for replacing the fuse. - Page 23 LED Par 64 Q4-12 Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 24: Product Specifications
LED Par 64 Q4-12 Product Specifications Model: LED Par 64 Q4-12 Input Voltage: 100-240 VAC, 60/50Hz Power Consumption: 70W (full output) DMX linking: 66pcs Fuse: 1,5A/250V Dimensions: 285 x 255 x 400 mm (LxWxH) Weight: 3,2 kg Operating and Programming:... -
Page 25: Dimensions
LED Par 64 Q4-12 Dimensions Ordercode: 42466... - Page 26 LED Par 64 Q4-12 Ordercode: 42466...
-
Page 27: Notes
LED Par 64 Q4-12 Notes Ordercode: 42466... - Page 28 ©2015 Showtec...
