- Page 1 MANUAL ENGLISH Mirrorball Motor up to 30 cm Ordercode: 604081 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Description of the device ..............................6 Features ..................................6 Overview ..................................6 Installation ................................... 7 Installing the Mirrorball Motor ............................. 7 Setup and Operation ................................ 8 Power On ..................................8 Maintenance ..................................8 Troubleshooting ................................. 8 Product Specifications ..............................9 Ordercode: 604081... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Mirrorball Motor up to 30 cm with a power cable (1 m) ● User manual... - Page 4 ● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL YELLOW/GREEN GREEN GREEN PROTECTIVE GROUND Make sure that the device is always properly connected to the earth! Improper installation can cause serious injuries and/or damage of property! Ordercode: 604081... -
Page 6: Return Procedure
After this period complaints will not be handled anymore. Complaints will only then be considered if the client has so far complied with all parts of the agreement, regardless of the agreement from which the obligation is resulting. Ordercode: 604081... -

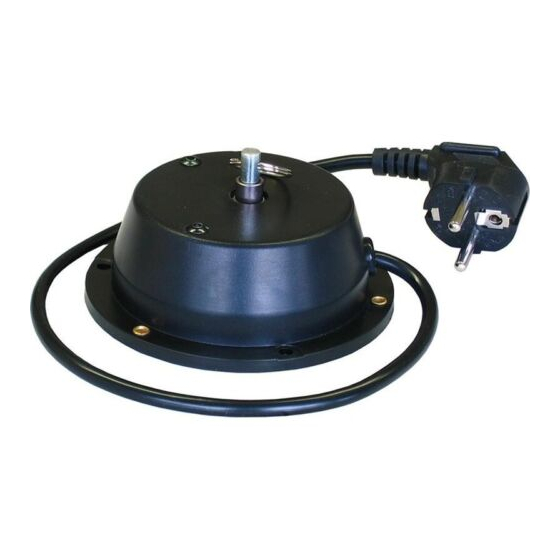

Page 7: Description Of The Device
Mirrorball Motor up to 30 cm Description of the device Features The Showtec Mirrorball Motor up to 30 cm is a mirror ball control system. ● Input voltage: 220-240V AC, 50Hz ● Power consumption: 3,2W ● Max. rotation speed: ± 1,5 RPM ●... -
Page 8: Installation
01) Hold the baseplate onto the location where the device is to be installed. 02) Mark the holes with a pen or a suitable tool. 03) Drill the holes. 04) Hold the baseplate in the desired position and tighten the screws. Ordercode: 604081... -
Page 9: Setup And Operation
Suspect two potential problem areas as: the power supply and the motor. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The motor. Return the device to your Showtec dealer. 03) If both of the above appear to be O.K., plug the unit in again. -
Page 10: Product Specifications
Mirrorball Motor up to 30 cm Product Specifications Model: Showtec Mirrorball Motor up to 30 cm Input voltage: 220-240V AC, 50Hz Power consumption: 3,2W Dimensions: 112 x 60 mm (WxH) Weight: 0,4 kg Electro-mechanical effects: Max. rotation speed: ± 1,5 RPM Mirror ball max. - Page 11 Mirrorball Motor up to 30 cm Ordercode: 604081...
- Page 12 ©2021 Showtec...
