Summary of Contents for SHOWTEC Halfmirrorball
- Page 1 MANUAL ENGLISH Halfmirrorball 40cm incl. Motor V1 Ordercode: 60402 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Halfmirrorball 40cm incl. Motor Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Rigging .................................... 4 Connection with the mains............................4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Features ..................................6 Overview .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Halfmirrorball 40cm incl. Motor with a power cable (0,9 m) ● User manual Safety Instructions Every person involved with the installation, operation and maintenance of this device has to: ●... -
Page 4: Operating Determinations
● If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 5: Rigging
Halfmirrorball 40cm incl. Motor Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: ●... -
Page 6: Return Procedure
Halfmirrorball 40cm incl. Motor Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 7: Description Of The Device

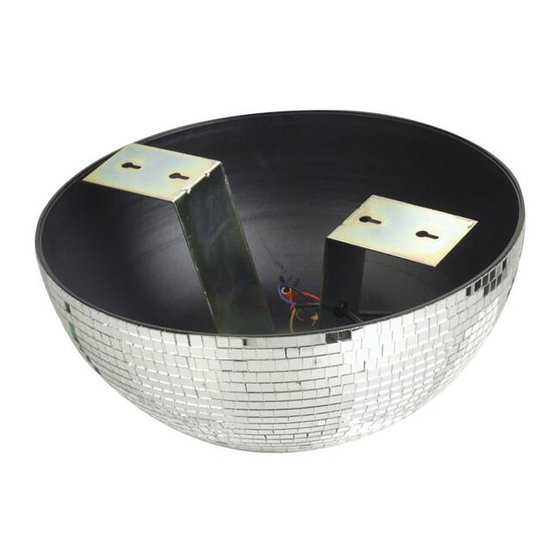

Halfmirrorball 40cm incl. Motor Description of the device Features The Showtec Halfmirrorball 40cm incl. Motor is a mirror ball control system. The mirror ball is equipped with with a stable plastic core and real glass facets. ● Input voltage: 240 V AC, 50 Hz ●... -
Page 8: Back
04) Open-end power cable (0,9 m) Installation Remove all packing materials from the Halfmirrorball 40cm incl. Motor. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 9: Installing The Mirror Ball
Halfmirrorball 40cm incl. Motor Installing the Mirror Ball ● Make sure that the rotation of the mirror ball is never obstructed by decoration material etc. ● Please check for safety in regular intervals. If the installation material has been deformed, uninstall the mirror ball immediately. -
Page 10: Setup And Operation
03) If both of the above appear to be O.K., plug the unit in again. 04) If you are unable to determine the cause of the problem, do not open the Halfmirrorball, as this may damage the unit and the warranty will become void. -
Page 11: Product Specifications
Halfmirrorball 40cm incl. Motor Product Specifications Model: Showtec Halfmirrorball 40cm incl. Motor Input voltage: 240 V AC, 50Hz Power consumption: Dimensions: 408 x 210 mm (WxH) Weight: 3,1 kg Electro-mechanical effects: Max. rotation speed: ± 2,5–3 RPM Mirror ball size:... - Page 12 ©2021 Showtec...
