- Page 1 MANUAL ENGLISH Performer 60 LED Ordercode: 33100 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Performer 60 LED Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Features ..................................7 Overview .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Performer 60 LED ● 1 x filter frame ●... - Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Performer 60 LED ● The user is responsible for correct positioning and operating of the Performer. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. ● This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Performer 60 LED Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE... -
Page 7: Return Procedure
Performer 60 LED Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

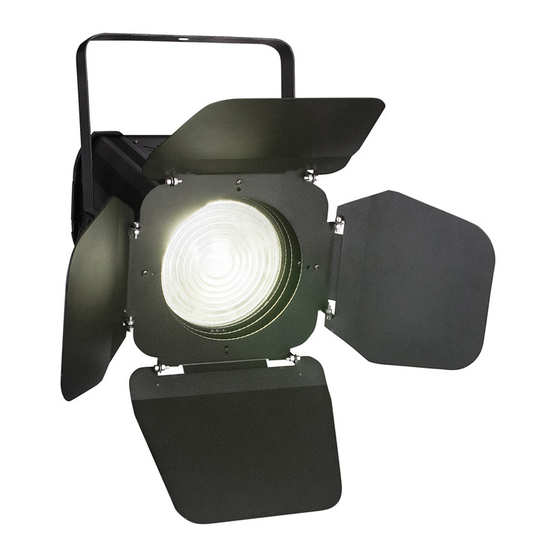

Performer 60 LED Description of the device Features The Showtec Performer 60 LED is a powerful light fixture with high output and great effects. ● Light source: 1 x 60W COB ● Input voltage: 100-240V AC, 50/60Hz ● Power consumption: 75W ●... -
Page 9: Backside
Performer 60 LED Backside Fig. 02 04) LCD display + control buttons 05) Adjustment screw 06) Ground/earth connection 07) Fuse T1L/250V 08) PowerCON power connector 100-240V IN 09) PowerCON power connector 100-240V OUT 10) 3-pin DMX signal connector IN 11) 3-pin DMX signal connector OUT... -
Page 10: Installation
Performer 60 LED Installation Remove all packing materials from the Performer 60 LED. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 11: Control Modes
Performer 60 LED Control Modes There are 5 modes: ● Auto mode ● Dimmer mode ● Sound-controlled mode ● Master/Slave ● DMX-512 (1CH, 3CH) One Performer (Auto mode and Dimmer mode) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 12: Multiple Performers (Dmx Control)
Performer 60 LED Multiple Performers (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Performers and other devices. -
Page 13: Fixture Linking
Performer 60 LED Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 14: Control Panel
Performer 60 LED The Performer 60 LED can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD display MODE button C) SETUP button D) UP button DOWN button Fig. 06 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 15: Menu Overview
Performer 60 LED Menu Overview Main Menu Options 1. Auto show 2. Slave mode 3. DMX addressing/ DMX configuration 4. Sound-controlled mode 5. Dimmer mode 6. Settings 7. Info On start-up, the device will show the current software version: Ordercode: 33100... -
Page 16: Show Mode
Performer 60 LED 1. Show Mode With this menu you can activate the built-in show. 01) Press the MODE button until the display shows 02) Press the SETUP button several times to toggle between strobe frequency and program speed settings. -
Page 17: Settings
Performer 60 LED 6. Settings 01) Press the MODE button until the display shows 02) Press the SETUP button to open the menu. 03) Press the UP/DOWN buttons to choose from the 6 available submenus, 04) Press the SETUP button to open one of the 6 submenus. -
Page 18: Info
Performer 60 LED 07) In you can set how long the display will remain ON, when no button is pressed. 08) Press the UP/DOWN buttons to choose between 10, 20, 30 or 60 seconds. If you choose ON, the display will remain continuously ON, even if no button is pressed. -
Page 19: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Performer 60 LED requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 20: Troubleshooting
Suspect three potential problem areas as: the power supply, the LEDs, the fuse. 01) Power supply. Check if the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Performer to your Showtec dealer. 03) The fuse. Replace the fuse. See page 18 for replacing the fuse. - Page 21 Performer 60 LED Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 22: Product Specifications
Performer 60 LED Product Specifications Model: Showtec Performer 60 LED Input voltage: 100-240V AC, 50/60Hz Power consumption: 75W (full output) DMX linking: 30pcs Fuse: T1L/250V Dimensions: 285 x 250 x 300 mm (LxWxH) Weight: 4,8 kg Operating and Programming: Signal pin OUT:... -
Page 23: Dimensions
Performer 60 LED Dimensions Ordercode: 33100... - Page 24 ©2017 Showtec...
