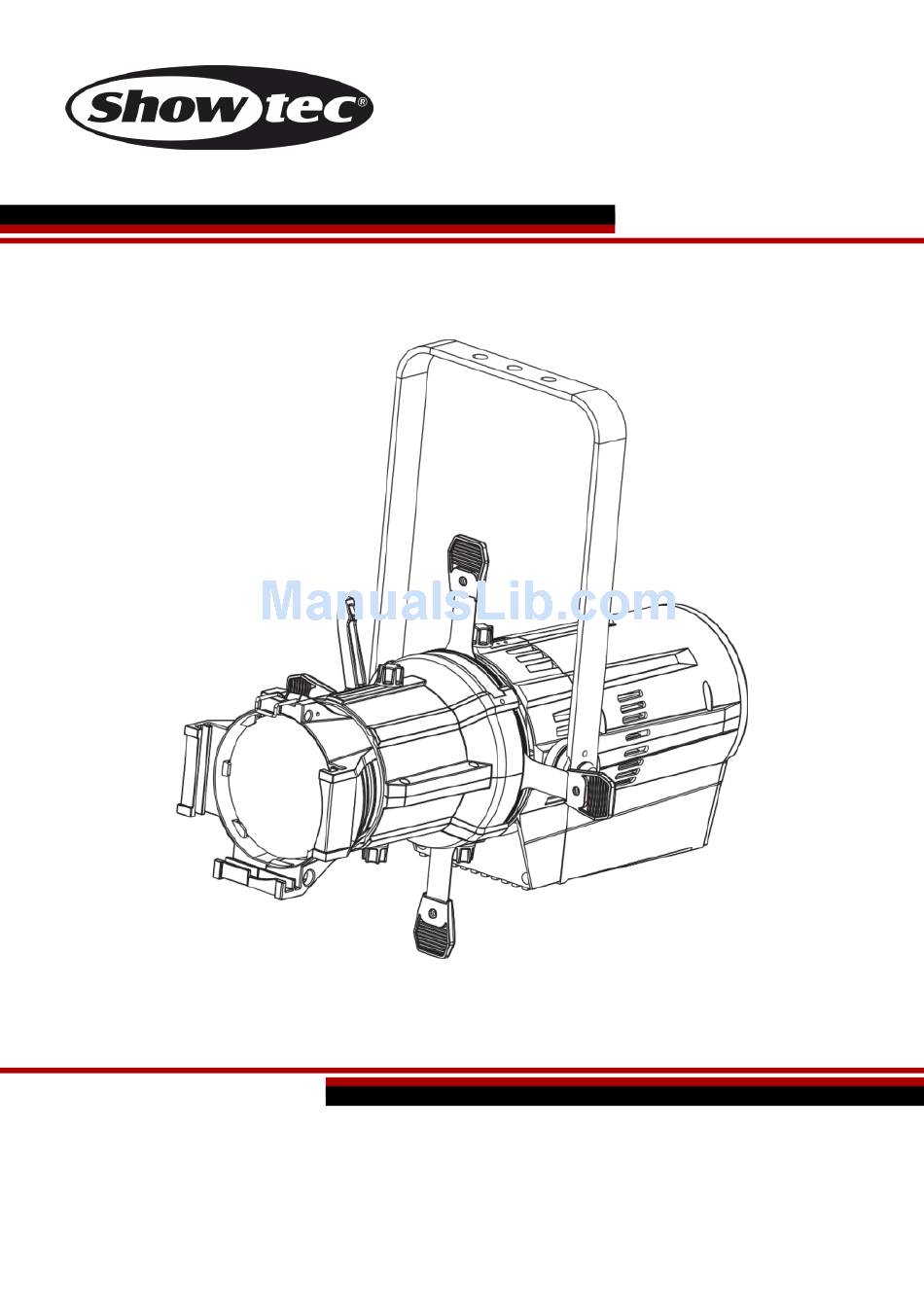

- Page 1 MANUAL ENGLISH Performer Profile 600 Ordercode: 33060 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Performer Profile 600 Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains ............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Features ..................................8 Optional accessories .............................. - Page 3 Performer Profile 600 Cleaning ....................................25 Cleaning 19°, 26°, 36°, and 50° glass lenses......................25 Cleaning the reflector..............................25 Maintenance ..................................26 Replacing the Fuse ..............................26 Troubleshooting................................26 No Light ..................................26 No Response to DMX..............................27 Product Specifications ..............................28 Dimensions ..................................29 Notes ....................................30 Ordercode: 33060...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Performer Profile 600 2 color frames ... - Page 5 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Performer Profile 600 • The user is responsible for correct positioning and operating of the Performer. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 7: Connection With The Mains
Performer Profile 600 Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE... -
Page 8: Return Procedure
Performer Profile 600 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device

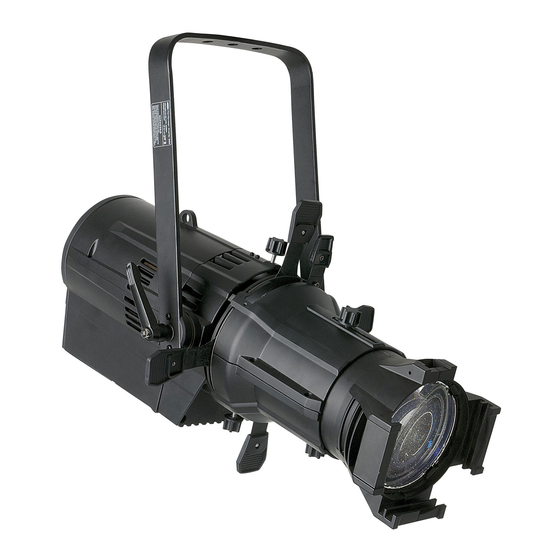

Performer Profile 600 Description of the device Features The Showtec Performer Profile 600 is a theater spotlight fixture with high output and great effects. Light Source: 19 x 10W 4-in-1 RGBW LED Input Voltage: 100 - 240VAC, 60/50Hz ... - Page 10 Performer Profile 600 Fig. 02 01) Lens tube 02) Beam focus control 03) Barrel 04) Mounting bracket 05) LED lens 06) LED board 07) Thermal switch holder + thermal switch 08) Driver board 09) Insulated handle 10) PCB 11) Fuse T3,15AL/250V...
-
Page 11: Backside
Performer Profile 600 Backside Fig. 03 20) Fuse T3,15AL/250V 21) Powercon power connector 100-240V IN 22) Powercon power connector 100-240V OUT 23) 5-pin DMX signal connector IN 24) 5-pin DMX signal connector OUT 25) 3-pin DMX signal connector IN 26) 3-pin DMX signal connector OUT... -
Page 12: Installation
Performer Profile 600 Installation Remove all packing materials from the Performer Profile 600. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 13: Color Frame Retaining Clip
(Fig. 06). Make sure that all color frame accessories are locked in position with the retaining clip before hanging the Performer Profile 600. 01) Release the retaining clip by pushing it sideways while gently pulling backwards. -
Page 14: Shutters
Performer Profile 600 Shutters The shutters are located inside the barrel. Move them back and forth to modify the shape of the beam. Fig. 07 Drop-in Iris-Slot The Drop-in Iris slot is located on the top of the barrel. It accommodates either a drop-in iris or a motorized pattern device. -
Page 15: Rotating The Barrel Assembly
Performer Profile 600 Rotating the barrel assembly 01) Loosen the barrel rotation control. It can be found directly behind the shutters on the underside of the reflector housing (Fig 09). Do not remove the barrel rotation control. 02) Rotate the barrel to the desired position. -
Page 16: Setting The Angle
Performer Profile 600 Setting the angle 01) Loosen the adjustment screws (do not remove them). 02) Tilt the fixture to the desired position (Fig. 11). 03) Tighten the adjustment screws to secure the fixture in position. Fig. 11 Ordercode: 33060... -
Page 17: Control Modes
Performer Profile 600 Control Modes There are 3 modes: • Stand-alone (Run) • Master/Slave • DMX-512 (1CH, 2CH, 3 CH) One Performer (Run Mode) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 18: Multiple Performers (Dmx Control)
Performer Profile 600 Multiple Performers (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Performers and other devices. -
Page 19: Fixture Linking
Performer Profile 600 Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows of two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 20: Control Panel
Performer Profile 600 The Performer Profile 600 can be operated with a controller in control mode or without the controller in stand-alone mode. Control Panel A) LCD Display MENU button C) ENTER button D) UP button DOWN button Fig. 14 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 21: Menu Overview
Performer Profile 600 Menu Overview Ordercode: 33060... -
Page 22: Main Menu Options
Performer Profile 600 Main Menu Options Dimmer Settings DMX-512 Mode Run Mode 1. Dimmer In this menu you can manually adjust the dimmer intensity. 01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the ENTER button to open the menu. -
Page 23: Dmx Data Transfer
Performer Profile 600 04) When the option is inactive, the Settings menu will not get locked, providing that the device remains in it. 05) If the display shows and turns off after 30 seconds – you will need to re-insert the safety key, anyway. -
Page 24: Performance Settings
Performer Profile 600 2.7 Performance settings 01) When the display shows , press the ENTER button to open the menu. 02) Press the UP and DOWN buttons to toggle between the 3 modes: Default mode. It provides a compromise between output quality and noise level. -
Page 25: Run Mode
Performer Profile 600 4. Run Mode In this mode you can set the device as a master or slave fixture. 01) While in the main menu, press the UP and DOWN buttons until the display shows 02) Press the ENTER button to open the menu. -
Page 26: Cleaning
Performer Profile 600 Cleaning Please follow the next recommendations when cleaning and inspecting lenses and reflectors: Do not use glass or window type cleaners on lenses (glass or polymer) or reflectors. Do not use abrasive materials such as steel wool. -
Page 27: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Performer Profile 600 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 28: No Response To Dmx
Performer Profile 600 No Response to DMX Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. -
Page 29: Product Specifications
Performer Profile 600 Product Specifications Model: Showtec Performer Profile 600 Input Voltage: 100-240 VAC, 60/50Hz Power consumption: 210W (full output) DMX linking: 30pcs Fuse: T3,15AL/250V Dimensions: 580 x 360 x 462 mm (LxWxH) Weight: 9,4 kg Operating and Programming: Signal pin OUT:... -
Page 30: Dimensions
Performer Profile 600 Dimensions Ordercode: 33060... -
Page 31: Notes
Performer Profile 600 Notes Ordercode: 33060... - Page 32 ©2015 Showtec...
