PICO
VCF3
Thank you for purchasing Erica Synths Pico Series module!
With Pico Series we challenged ourselves – can we make ANY
superior functionality synth module 3HP wide and affordable?
Erica Pico VCF3, despite its small size, is mighty, classical
sounding 24dB/oct lowpass filter that makes Pico System
sound like ten times larger setups.
24 dB/oct LP VCF
1V/octave tuning
Self oscillaton
Input protection against overvoltage
Power consumption
+20mA, -20mA
Module width
3HP
Module depth
35mm

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCF3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Erica Synths VCF3

  • Page 1 With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Erica Pico VCF3, despite its small size, is mighty, classical sounding 24dB/oct lowpass filter that makes Pico System sound like ten times larger setups.

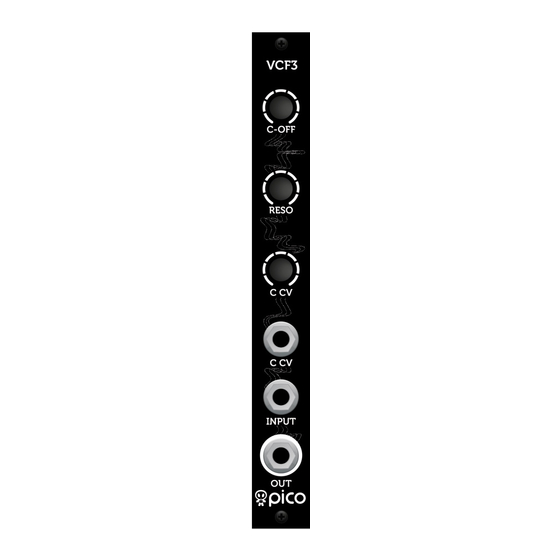

  • Page 2 PICO VCF3 VCF3 Use this knob to adjust VCF cutoff manually C-OFF Use this knob to adjust VCF Resonance manually RESO This knob adjusts cutoff CV level C CV Patch cutoff CV signal here C CV Patch audio signal here...
  • Page 3 Erica Synths. Water is lethal for most of the electric devices, unless they are made waterproof. This Erica Synths module is NOT intended for use in a humid or wet environment. No liquids or other conducting substances must get into the module.
