Erica Synths Matrix Mixer User Manual

THANK YOU FOR PURCHASING THE ERICA SYNTHS MATRIX MIXER!
As Eurorack users may know, it can be challenging to change a patch radically during a performance, therefore diverse
performances require large systems or they end up being extremely experimental. But what if you could repatch your

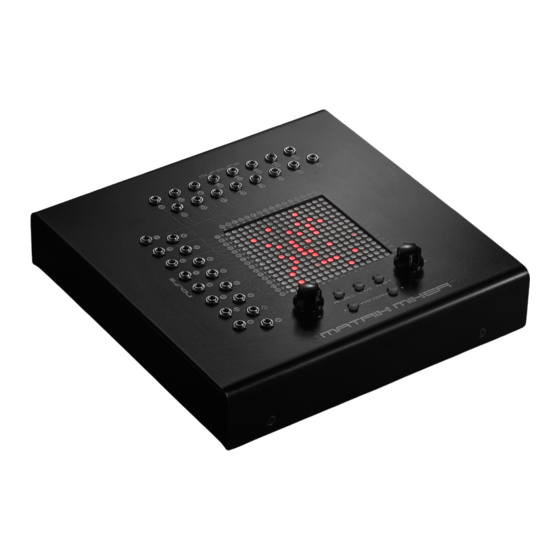

system with the push of a single button? The Erica Synths Matrix Mixer is a 16 – input, 16 - output desktop patch matrix – it
can route and mix signals with high precision, create buffered multiples and random patches. It can also interface external
instruments with your Eurorack system, and – it's not limited to Eurorack! You can use the Matrix Mixer with semi-modular
synthesizers, as well as through adapter cards with the EMS Synthi and Buchla Music Easel. Thanks to simple patch changes
via panel buttons or MIDI program change messages, the Matrix Mixer will be particularly useful in performances that
combine Eurorack and other performance instruments, such as drums, guitars, wind instruments, etc. Make your modular
performance stand out and enjoy the Matrix Mixer!
FEATURES SPECS:
16 buffered, DC coupled inputs Audio level
16 independent, buffered, DC coupled outputs Attenuation level
256 connections, each with 3 attenuation levels Power supply
"Piano" mode
Random pattern mode with definable randomization
Size of the instrument
area and density
Net mass
254 pattern memory
Size of the packaging
Pattern change via MIDI program change messages
Mass with the packaging
32 3,5mm jack sockets
4 6,3mm jack sockets
SAFETY INSTRUCTIONS
Please follow the instructions for the use of the Erica
Synths Matrix Mixer below, because only this will
guarantee the proper operation of the module and
ensure the warranty from Erica Synths.
Use the Matrix Mixer exclusively with the
power supply unit (PSU) supplied with the
system. Powering it with other PSU units may
cause permanent damage to the device.
Water is lethal for most electric devices unless
they have been rendered waterproof. The
Matrix Mixer is NOT intended for use in a humid
or wet environment. No liquids or other
conducting substances should be allowed into
the module. Should this happen, the module
should be disconnected from mains power
immediately, dried, examined and cleaned by a
qualified technician.
Do not expose the instrument to temperatures
above +50° C or below -20° C. If you have
transported the instrument in extremely low
10Vptp
temperatures, leave it at room temperature
1, 0.7, 0.3
for an hour before plugging it in.
12VDC (a universal AC/DC
converter included) Transport the instrument carefully. Never let it
drop or fall over. The Warranty does not apply
225 x 226 x 44mm
to instruments with visual damage.
1.25kg
315x295x95
You will find the Erica Synths terms
of warranty at www.ericasynths.lv
Items for return, exchange and/or warranty repair
should be sent us according to the guidelines on
SUPPORT section on www.ericasynths.lv
Matrix Mixer must be shipped in the original
packaging only. Any instrument shipped to us
for return, exchange and/or warranty repair
must be in its original packaging. All other
deliveries will be rejected and returned to you.
Ensure that you keep the original packaging
and technical documentation.
DISPOSAL
This device complies with EU guidelines and is
manufactured and confront RoHS without the use of
lead, mercury, cadmium or chrome. Nevertheless, this
device is special waste and disposal in household
waste is not recommended.
User manual by Girts Ozolins@Erica Synths.
Design by Ineta Briede@Black8.
Copying, distribution or any commercial use in any way
is prohibited and needs the written permission of Erica
Synths.
The specifications are subject to change without
notice.
If you have any questions, feel free to contact us
on SUPPORT section on www.ericasynths.lv
