PICO
SEQ
Thank you for purchasing Erica Synths Pico Series module!
With Pico Series we challenged ourselves – can we make ANY
superior functionality synth module 3HP wide and affordable?

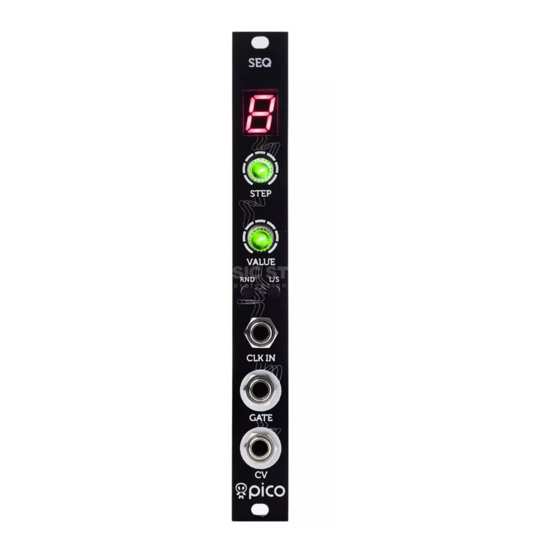

Erica Pico SEQ is mighty, performance oriented 16 step CV and
Gate sequencer, packed with virtually all possible features
you may expect from a sequencer, just in 3HP! Despite the small
size it's easy to program, and most importantly – up to 16
patterns can be saved in memory and instantly recalled.
electable sequence length – up to 16 steps
Quantized CV output – 9 different scales
Adjustable Gate length for each step
Step off and step merge function
Slide function on selected steps
Transpose function
Random play function (within a scale)
5 play modes
Sequence memory (16 sequences with all settings)
CV output
0-+8V (8 octaves)
Gate length
0-100% (adjustable for each step)
Power consumption
+55mA, -4mA
Module width
3HP
Module depth
35mm
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Erica Synths PICO Series
Summary of Contents for Erica Synths PICO Series
- Page 1 PICO Thank you for purchasing Erica Synths Pico Series module! With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Erica Pico SEQ is mighty, performance oriented 16 step CV and...
- Page 2 PICO The 7 segment display indicates selected steps, gate length, notes and play mode The top encoder allows you to access main features and modes of the module. Push the encoder promptly and move through controls. All functionality of the unit is STEP described in the table below.
- Page 3 MODE CONTROLLS ACTION INDICATOR Push the STEP encoder until it lights green, and turn it to select First 8 steps number of steps in the sequence. STEP pattern Push to confirm. First 8 steps are indicated with numbers from length Steps 9-16 VALUE 1-8, steps 9-16 are indicated with...
- Page 4 MODE CONTROLLS ACTION INDICATOR Push the STEP encoder until it is not light and rotate it to move through the steps in the pattern. Push the VALUE encoder until it lights Note C green and rotate it to set the note STEP Enter notes value for each step.
- Page 5 MODE CONTROLLS ACTION INDICATOR Push the RND button and pattern Pattern STEP gets randomized within selected randomization scale and octave range. VALUE CLK IN GATE Push and hold RND button and rotate the ROTATE STEP ENCODER TO CHOOSE MASTER PITCH SLIDE MODE! PITCH SLIDE OFF PICO MASTER...
- Page 6 Erica Synths. Water is lethal for most of the electric devices, unless they are made waterproof. This Erica Synths module is NOT intended for use in a humid or wet environment. No liquids or other conducting substances must get into the module.
