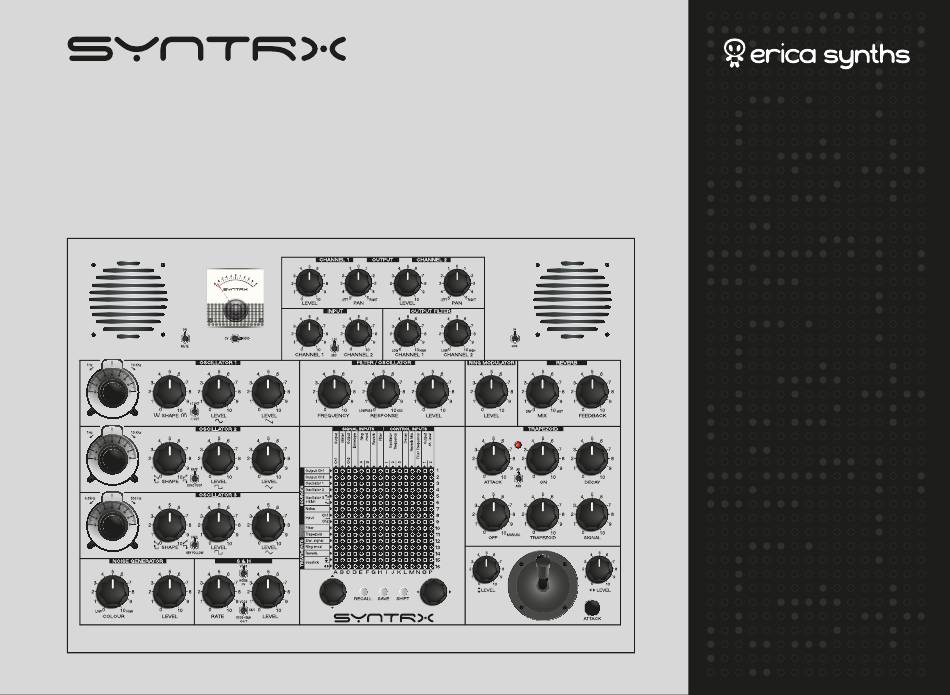

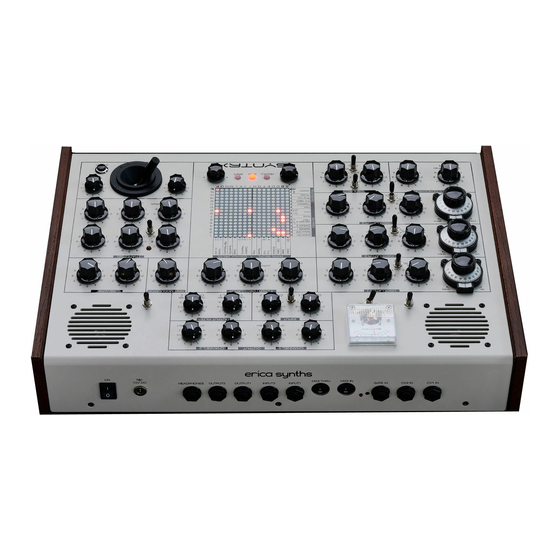

Thank you for purchasing
the Erica Synths SYNTRX
Synthesizer!
Since its beginnings, Erica Synths has promoted
experimental electronic music and has developed
instruments that enable musicians to unleash
their creativity. When it comes to standalone
instruments, we considered the Synthi AKS to be
one of the most encouraging instruments in ex-
perimental music. We, therefore, teamed up with
engineers from the Riga Technical University to
develop a synthesizer (no part of the schematics
was cloned from Synthi) with a user interface that
challenges conventional wisdom in sound design.
We believe that it will inspire users to explore the
sonic universe and travel to previously undiscov-
ered audible realms.
Features:
3 highly accurate VCOs that track
admirably over 8 octaves
+-1 octave switch for the VCO1
Sync switch for the VCO2
Noise generator with "colour" filter
Resonant VCF
Ring modulator
Spring reverb
ASR/AD looping envelope generator
Joystick controller
Two external signal inputs
Input amplifier with adjustable gain
3 VCAs
Sample & Hold circuit with an individual clock
Output signal filter
Mechanical CV/audio signal level indicator
2xCV inputs and Gate input
MIDI In and MIDI Thru
Built-in speakers
What's included:
SYNTRX synthesizer
Universal 12VDC wall wart adapter
User manual
10 patch note stencils

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYNTRX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Erica Synths SYNTRX

  • Page 1 Synthesizer! engineers from the Riga Technical University to develop a synthesizer (no part of the schematics Since its beginnings, Erica Synths has promoted was cloned from Synthi) with a user interface that experimental electronic music and has developed challenges conventional wisdom in sound design.
  • Page 2 THE “MODULES” The SYNTRX is somewhat similar to the modular synthesizer – here you can modulate any available “module” with another, and possible connections are almost limitless. The mixer/splitter matrix allows the mixing of up to 16 signals to one output and likewise – because all inputs and outputs are buffered - split one signal to up to 16 destinations.
  • Page 3 For example, two oscillators running at audio rates or an oscillator and SYNTRX patches. The internal signal levels in the SYNTRX are modular microphone patched into one of the Inputs on SYNTRX. Depending on the input signal frequency level, meaning, the normal unattenuated audio signal is 10Vptp. CV relationship, the output is a complex set of component tones, being typically metallic, bell-like sounds.
  • Page 4 PATCH MATRIX The SYNTRX has a digitally controlled analogue PATCH MATRIX. It’s a mixer/buffered multiple matrix, so when designing patches, you can mix up to 16 inputs to a single output without losing signal strength, or alternatively, you can send one signal to up to 16 outputs simultaneously. Moreover, each patch- point has three levels of attenuation –...
  • Page 5 PATCH MATRIX IN USE SIGNAL INPUTS CONTROL INPUTS The PATCH MATRIX has 256 possible patch points, each with three levels of attenuation and has a memory of 254 patches. TO BUILD A PATCH, navigate the matrix via X and Y encoders and select a patchpoint. The left encoder allows you to make attenuated connections.
  • Page 6 SIGNAL INPUTS CONTROL INPUTS regular synthesizer. Without patch designed the SYNTRX will not make any sound. When connecting the modules, you basically go in circles in and out of Output Ch1 the patch matrix. Here are some examples.
  • Page 7 BUILDING PATCHES OUTPUT OUTPUT AMPLIFIER 1 AMPLIFIER 1 OUTPUT TRAPEZOID TRAPEZOID AMPLIFIER 1 FILTER FILTER FILTER SIGNAL INPUTS CONTROL INPUTS SIGNAL INPUTS CONTROL INPUTS SIGNAL INPUTS CONTROL INPUTS Output Ch1 Output Ch1 Output Ch1 Output Ch2 Output Ch2 Output Ch2 OSCILLATOR 1 Oscillator 1 OSCILLATOR 1...
  • Page 8: Midi Configuration

    GATE IN CV2 IN CV1 IN Flip the switch to turn the SYNTRX on. The SYNTRX is full This is the external audio Input2. (Trapezoid). Ensure that the Trapezoid is in the manual, analogue synthesizer, therefore, when switched on, it takes non-looping, mode.
  • Page 9: Safety Instructions

    Please follow the instructions for the use of above +50° C or below -20° C. If you have trans- manufactured and confront RoHS without the the Erica Synths Bassline DB-01 below, be- ported the instrument in extremely low temper- use of lead, mercury, cadmium or chrome.
