Summary of Contents for Erica Synths GraphicVco
- Page 1 USER MANUAL...
-
Page 2: Specifications

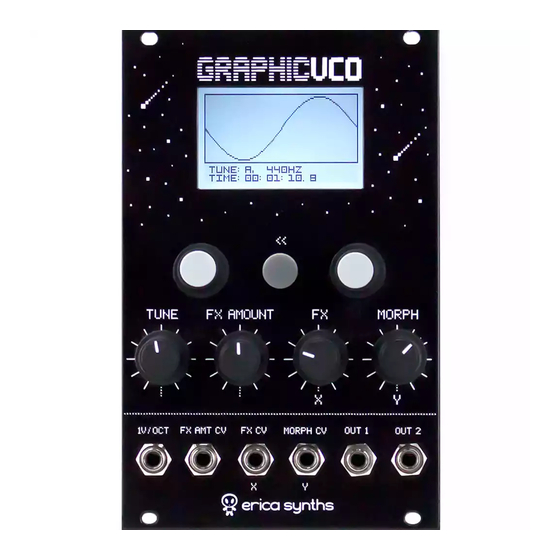

FEATURES THANK YOU FOR PURCHASING ERICA SYNTHS GRAPHIC VCO! WE > Versatile waveform design BELIEVE, THIS WILL BE ONE OF > Morphing between two selected waves YOUR FAVOURITE MODULES IN YOUR > Wavetable design EURORACK SYSTEM. > Wavetable matrix design > Versatile waveform alteration – FM, phase distortion, ring modulation, wavefold, wavewrap, bitcrush > Configurable suboscillator output The Graphic VCO allows you to draw your own > Skiff-friendly design waveforms, arrange them in wavetables and wavetable banks, morph between two selected... - Page 3 THE LCD gives visual feedback on the main functions of the module. THE LEFT ENCODER allows to access main functions in the menus. THE RIGHT ENCODER allows to access secondary functions in the menus. BACK button allows to return to the menu above ADJUST MASTER TUNE of the VCO. Tune range is 16Hz - 4kHz, larger range can be achieved with CV applied to 1V/oct input. For FINE TUNE push and hold the right encoder, and rotate the left one to adjust the tune between +-50 cents. The Fine Tune function works in the main screen and the oscilloscope screen only! ADJUST FX (depending on selected function) amount manually. If FX AMT CV is patched, this knob becomes FX amount CV attenuator. DEPENDING ON FX ADJUSTS THE FX selected, this knob PARAMETER , for example, FM frequency, if FM is selected. If FX CV is patched, this knob becomes FX CV attenuator. In Wavetable Matrix mode use this knob to morph thru waves in horizontal direction.
-
Page 4: The Main Menu
> THE MAIN MENU < > WAVE DESIGN MENU < BASIC MODE WAVE DESIGN is This is the MAIN WAVE This is MODE SELECT menu. and Morphing between waves A and DESIGN menu. It will Selected mode appears as a B. In this mode you can use encoders change depending on the text below the icons to draw two waves – A and B (or mode selected select ones from the list) and morph This is OSCILLOSCOPE and... - Page 5 Once you have clear screen, you can Once waveforms are loaded, you can PLAY THEM BACK EDIT draw one period of the wave and just or simultaneously listen to the result. To them. Rotate left or right encoder to do so, use the left encoder to select select edit icon and click to advance the principal waveform, you wish to to wave edit mode. start with, from the icons above and click to confirm selection. Available principal waveforms are pulse, triangle, sine, ramp, sawtooth and logarithmic sine. Example shows sine waveform selected.
- Page 6 PEN SKETCH The wave with the corresponding In the mode you just spectrum of harmonics will appear use both encoders to draw the wave on the screen. You also can alter form scratch. The left encoder moves the wave by adjusting harmonics. drawing cursor up and down, the Use the left encoder to navigate thru right – right. Push the right encoder to...
- Page 7 > WAVETABLE MENU < > WAVETABLE MATRIX MENU < WAVETEBLE MENU In Wavetable Matrix mode you have you can your wavetables and waves displayed select wavetables of 16 waves from as a matrix, where rows represent the list of BANKS and play them back, wavetables (wavetables appear in the while morphing thru waves using order as set in MANAGE menu) and MORPH knob or Morph CV.
-
Page 8: Drum Mode
> DRUM MODE < > FX MENU < DRUM MODE In FX menu you can apply several you can use effects on the waves being played the Graphic VCO as a percussion back. FXes are master settings and synthesizer, where the percussion they are applied on the resulting sounds are built based on wavetables wave before the output. FXes (except... - Page 9 INTERNAL IF THE EXTERNAL MODULATOR Let’s start with the MODULATION OSCILLATOR (OSC) IS SELECTED (IN) , you can apply First, you have selection of the the modulation CV (LFO, envelope waveforms (WAVE). Rotate the right generator or any other modulation encoder to browse the waveforms.
- Page 10 > SUBOSCILLATOR CONFIGURATION MENU < FOLD AND WRAP FX provides you distinct wavefolder or wavewrapper. In Suboscillator configuration menu Rotate the right encoder to select you can altrer suboscillator settings. between wavefolder (FOLD) The suboscillator is assigned to wavewrapper (WRAP). Push the right the OUT2. No FX (except frequency encoder to access GAIN adjustment modulation) is applied on the and OFFSET adjustment if you use an...
- Page 11 > OSCILLOSCOPE MENU < > SNAPSHOTS MENU < OSCILLOSCOPE MENU Once you are happy how your designed The is waves or wavetables with suboscillator designed to monitor signal status configuration and FXes applied during performance. sound you can save a SNAPSHOT – a It shows a waveform being played combination of all your settings for a back at the moment including mor- specific sound, which can be instantly phing between waves and FXes...
-
Page 12: Device Configuration Menu
> MANAGE < > DEVICE CONFIGURATION MENU < MANAGE MENU DEVICE CONFIGURATION In the allows you to MENU you can adjust system and rearrange wavetables, edit them and hardware settings. create new ones. Rotate the left encoder to access Rotate the left encoder to browse various configuration settings through the wavetables and rotate the right encoder to browse through the waves within the wavetable. -
Page 13: Firmware Update
> FIRMWARE UPDATE < IN/OUT CONFIGURATION In the MENU you can configure CV inputs To have the module functionality by adjusting their gain, and bias. Use up to date, we recommend you the left encoder to select the input time by time check announcements or setting and right one to adjust the about firmware updates for the amount of the setting. -
Page 14: Safety Instructions
Items for return, exchange and/or warranty repair Do not expose the module to temperatures above have to be sent to: +50° C or below -20° C. Erica Synths, Andrejostas Str. 43, Riga, Latvia, LV-1045 Transport the instrument carefully, never let it User manual by Girts Ozolins@Erica Synths. drop or fall over. Warranty does not apply to Design by Inese Verina-Lubina and Anna Matisone. modules with visual damages. Copying, distribution or any commercial use in any way is The module has to be shipped in the original prohibited and needs the written permission packaging only. Any module shipped to us for by Erica Synths.
