PICO

VCF1

Thank you for purchasing Erica Synths Pico Series module!

With Pico Series we challenged ourselves – can we make ANY

superior functionality synth module 3HP wide and affordable?

Erica Pico VCF1 is a younger brother of Erica Black Polivoks

VCF, designed on the similar topology using rare Russian opamps.

As result you get a filter for great acid basslines, screaming

resonance sweeps and deep wobbles.

+12mA, -11mA

3HP

35mm

Table of Contents

Need help?

Do you have a question about the pico Series and is the answer not in the manual?

Page 1 VCF1 Thank you for purchasing Erica Synths Pico Series module! With Pico Series we challenged ourselves – can we make ANY superior functionality synth module 3HP wide and affordable? Erica Pico VCF1 is a younger brother of Erica Black Polivoks VCF, designed on the similar topology using rare Russian opamps.

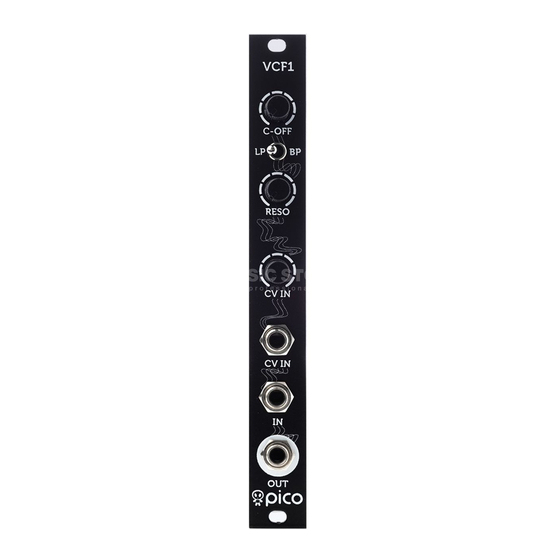

Page 2 PICO VCF1 VCF1 Use this knob to adjust VCF cutoff manually C-OFF Choose between LP and BP modes Use this knob to adjust VCF Resonance manually RESO This knob adjusts cutoff CV level CV IN Patch cutoff CV signal here CV IN Patch audio signal here This is VCF output...
Page 3 Erica Synths. Water is lethal for most of the electric devices, unless they are made waterproof. This Erica Synths module is NOT intended for use in a humid or wet environment. No liquids or other conducting substances must get into the module.

Vcf1
