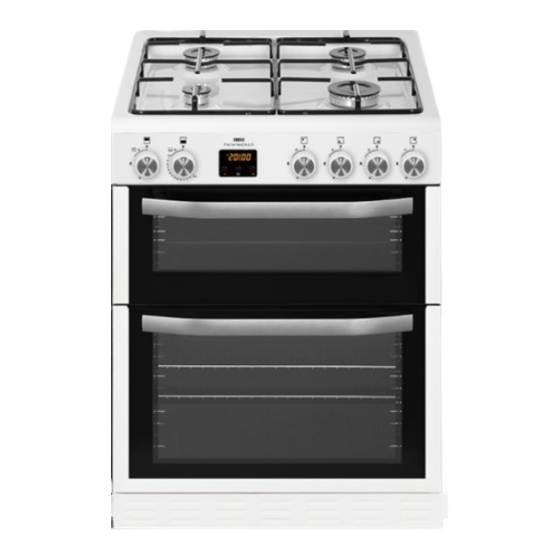

Gas Twin Cavity
Freestanding Oven
NWMID63GW
NWMID63GB
NWMID63GS
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Newworld NWMID63GW

Summary of Contents for Newworld NWMID63GW

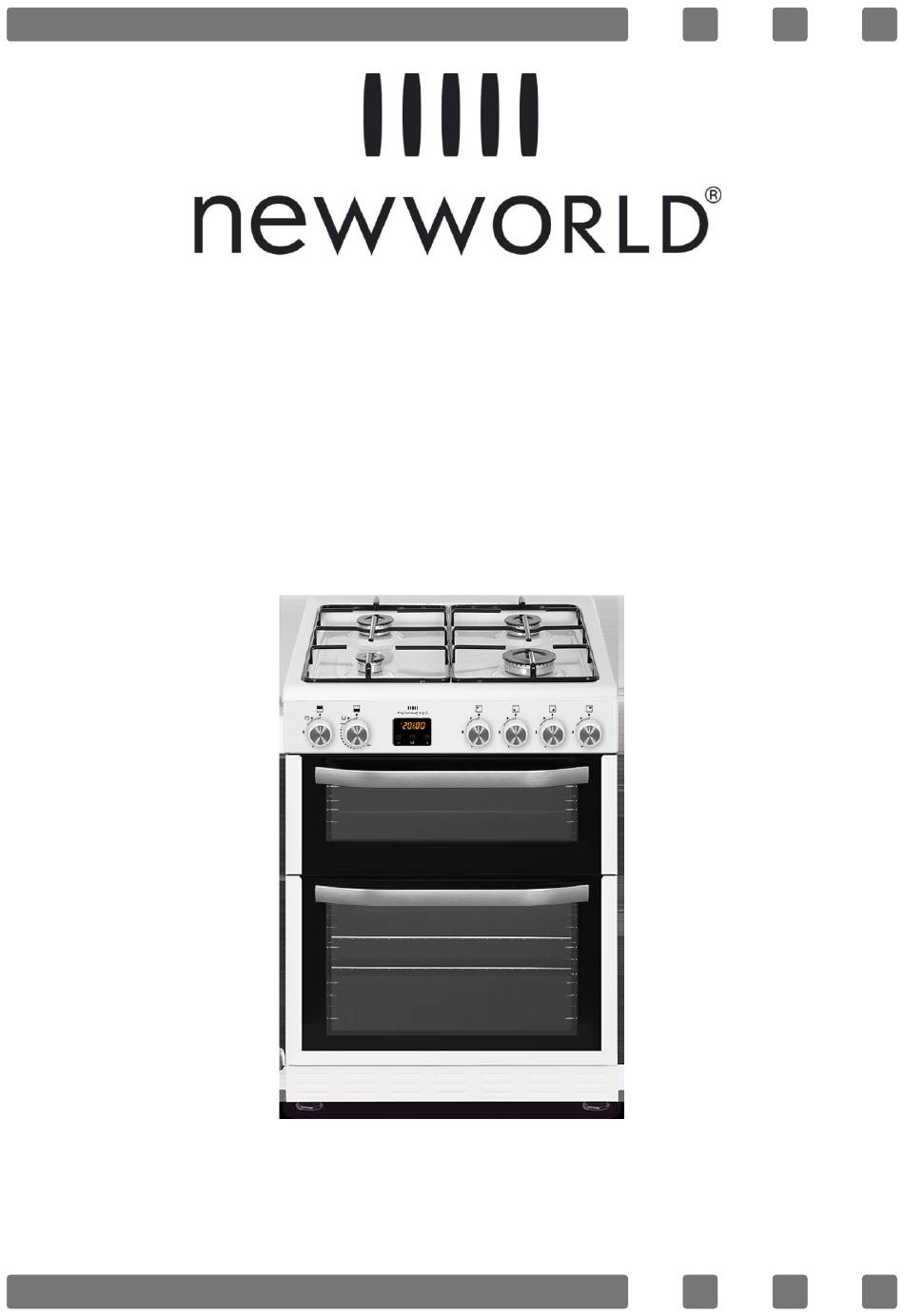

  • Page 1 Gas Twin Cavity Freestanding Oven NWMID63GW NWMID63GB NWMID63GS USER MANUAL...
  • Page 2 You’ll soon be enjoying your new Freestanding Gas Cooker It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. “THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH REGULATIONS ENFORCE AND ONLY USED IN A WELL VENTILATED SPACE.

  • Page 3: Table Of Contents

    Contents Important warnings Electrical connection Installation Chain lashing instructions Introduction of the appliance Accessories Technical features of your oven Control panel 3 Button Minute minder Using oven section Using the grill Using the hob Pot recommendation Cooking time table Maintenance and cleaning Cleaning and maintenance of the oven's door Rack positions Changing the oven lamp...

  • Page 4: Important Warnings

    IMPORTANT WARNINGS 1. Installation and repair should always be performed by “AUTHORISED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorised persons. 2. Please read the operating instructions carefully. 3. The oven should be used according to operating instructions.
  • Page 5 13. NEVER try to put out the fire with water. Only shut down the device circuit and then cover the flame with a cover or a fire blanket. 14. Children under 8 years of age should be kept away, if they cannot be monitored continuously. 15.
  • Page 6 23. The appliance is not suitable for use with an external timer or a separate remote control system. 24. Do not heat closed cans and glass jars. The pressure may lead jars to explode. 25. Oven handle is not a towel drier. Do not hang towels, etc.
  • Page 7 35. Do not put objects that children may reach on the appliance. 36. It is important to place the wire grill and tray properly on the wire racks and/or correctly place the tray on the rack. Place the grill or tray between two rails and make sure it is balanced before putting food on it.
  • Page 8 43. Do not hit glass surfaces of vitro-ceramic cookers with a hard metal, resistance can get damaged. It may cause an electric shock. 44. User should not handle the oven by himself. 45. Use shall be careful when cleaning gas burners. It may cause personal injuries.
  • Page 9 54. To prevent overheating, the appliance should not be installed behind of a decorative cover. 55. Turn off the appliance before removing the safeguards. After cleaning, install the safeguards according to instructions. 56. Cable fixing point shall be protected. 57. WARNING: Don’t use oven and grill burners at same time.
  • Page 10 Electrical Safety 1. Plug the appliance in a grounded socket protected by a fuse conforming to the values specified in the technical specifications chart. 2. Have an authorised electrician set grounding equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations.
  • Page 11 11. Make sure that there is no liquid or humidity in the outlet where the product plug is installed. 12. The rear surface of the oven also heats up when the oven is operated. Electrical connections shall not touch the rear surface, otherwise the connections may be damaged.
  • Page 12 20. Fixed connections shall be connected to a power supply enabling omnipolar disconnection. For appliances with over voltage category below III, disconnection device shall be connected to fixed power supply according to wiring code. Gas Safety 1. This appliance is not connected to burning products evacuation apparatus.This appliance must be connected and installed according to the installation regulations in force.
  • Page 13 6. The mechanism cannot be run for longer than 15 seconds. If the burner is not on after 15 seconds, stop the mechanism and wait for at least one minute before trying to ignite the burner again. 7. All kinds of operations to be performed on gas installation must be performed by authorised and competent people.
  • Page 14 What To Do When Gas Odour Is Detected 1. Do not use naked flame, and do not smoke. 2. Do not operate any electrical switch. (For example: lamp switch or doorbell) 3. Do not use telephone or mobile phone. 4. Open the doors and windows. 5.
  • Page 15 Intended Use 1. This product is designed for home use. Commercial use of the appliance is not permitted. 2. This appliance may only be used for cooking purposes. It shall not be used for other purposes like heating a room. 3.

  • Page 16: Electrical Connection

    Electrical Connection Provision for Ventilation The appliance housing used must provide adequate ventilation. For built-in installation, a minimum ventilation space of 45mm must exist between the rear of the appliance and the back of the housing or an adjacent wall. If a tall housing is to be installed flush with the ceiling, a 20cm²...

  • Page 17: Installation

    Installation Dear Installer Before you start your installation, please complete the details below. Installer’s Name Installer’s Company ArtNo.050-0011 - Installer information table Installer’s Telephone Number Appliance Serial Number Should your customer have a problem relating to your installation they will be able to contact you easily.
  • Page 18 In the UK: In your own interest and that of safety, it is law that all gas appliances be installed by competent persons. CORGI registered installers undertake to work to safe and satisfactory standards. Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution. his appliance should not be installed in a boat or caravan.
  • Page 19 INSTALLATION OF YOUR OVEN Check if the electrical installation is proper to bring the appliance in operating condition. If electricity installation is not suitable, call an electrician and plumber to arrange the utilities as necessary. Manufacturer shall not be held responsible for damages caused by operations performed by unauthorized persons.

  • Page 20: Chain Lashing Instructions

    6.5mm min. 6.5mm min. WARNING: The kitchen furniture near the appliance must be heat resistant. WARNING: Do not install the appliance beside refrigerators or coolers. Heat radiated by the appliance increases the energy consumption of cooling devices. WARNING: Do not use the door and/or handle to carry or move the appliance. Chain Lashing Illustration Before using the appliance, in order to ensure safe use, be sure to fix the appliance to the wall...
  • Page 21 Gas Connection WARNING: Before starting any work related with gas installation, turn off gas supply. Risk of explosion. WARNING: In the UK, the Gas cooker must be installed by a registered GAS SAFE engineer. The electrical installation should be in accordance with BS 7671.
  • Page 22 Natural gas connection: 1. Gasket 2. Adapter c, __ _ 3. Gas (safety) hose 4. Valve with 90° outlet 5. Connection piece 6. Gas supply pipe WARNING: The gas hose must not be clamped, bent or trapped or come into contact with hot parts of the product. There is the risk of explosion due to damaged gas hose.
  • Page 23 Gas hose passage way Connect the appliance to the gas piping tap in shortest possible route and in a way that ensure no gas leakage will occur. In order to carry on a tightness and sealing safety check ensure that the knobs on the control panel are closed and the gas cylindir is open.
  • Page 24 Reduced gas flow rate setting for hob taps 1. Ignite the burner that is to be adjusted and turn the knob to the reduced position. 2. Remove the knob from the gas tap. 3. Use an appropriately sized screwdriver to adjust the flow rate adjustment screw.
  • Page 25 Nozzle change operation 1. Please use driver with special head for removed and install nozzle as. (figure 5) 2. Please remove nozzle (figure 6) from burner with special nozzle driver and install new nozzle. (figure 7) Figure 5 Figure 6 Figure 7...
  • Page 26 Removal of the upper burner: With the help of a screw driver, remove the screw as shown in figure 11. As shown in figure 12, remove the burner from its place by pulling it to yourself. As shown in figure 13, remove the injector in the bearing with a socket wrench.

  • Page 27: Introduction Of The Appliance

    INTRODUCTION OF THE APPLIANCE 1. Control panel 2. Top oven 3. Main oven 4. Rapid burner 5. Semi rapid burner 6. Semi rapid burner 7. Auxiliary burner...

  • Page 28: Accessories

    Accessories Baking tray Used for pastry (cookie, biscuit etc.), frozen foods. Grill tray insert Foods to stick while cooking such as steak are placed on in tray grill. Thus contact of food with tray and sticking are prevented. Wire grill Used for roasting or placing foods to be baked, roasted and frozen into desired rack.

  • Page 29: Technical Features Of Your Oven

    Technical Features Of Your Oven 60x60 Specification Main Outside width 600 mm Outside depth 630 mm Outside height 900 mm Lower inside width Upper inside width 460 mm Lower inside depth Upper inside depth 400 mm Lower inside height Upper inside height 330 mm 180 mm Lamp power...
  • Page 30 60x60 Double Four G20,20 mbar G30,28-30 mbar Burner G25,25 mbar G31,37 mbar Specifications Gas Natural Injector 1,40 0,96 Gas flow 0,333 m³/h urner Power 3,50 3,50 Injector 1,15 0,85 Rapid Gas flow 0,276 m³/h Burner Power 2,90 2,90 Injector 0,97 0,65 Semi-Rapid Gas flow...

  • Page 31: Control Panel

    Control Panel 5. Left front burner 1. Top grill cavity control thermostat 6. Right front burner 2. Main oven control thermostat 7. Right rear burner 3. 3 button minute minder 4. Left rear burner Thermostat: Used for determining the cooking temperature of the dish to be cooked in the oven.

  • Page 32: Button Minute Minder

    3 button Minute Minder Clock Icon Minute Minder Icon TIME OF DAY ADJUSTMENT Press to the “ ” button. The “ ” icon between the hours and minutes will start to flash. Using the “ ” and “ ” buttons, you can adjust the current time of day. Long presses of those buttons will enable fast adjustments.

  • Page 33: Using Oven Section

    USING OVEN SECTION Using Oven Burners 1. Your oven is equipped with burners that operate with gas, appropriate knob should be used in order to ignite the burners. Your cooker has automatic under knob ignition. To ignite the burner press and turn the knob.

  • Page 34: Using The Grill

    Using The Grill 1. When you place the grill on the top rack, the food on the grill shall not touch the grill. 2. You can preheat for 5 minutes while grilling. 3. Food shall be in the center of the grill to provide maximum air flow through the oven.

  • Page 35: Using The Hob

    Using The Hob Using gas burners Flame cut-off safety device (FFD) , operates instantly when safety mechanism activates due to overflown liquid over upper hobs. 1. The valves controlling the gas burners have the above mentioned flame failure device. When flame of the cooker is extinguished, control valve cuts off the gas automatically.

  • Page 36: Pot Recommendation

    Pot Recommendation Use flat bottomed saucepans which fully contact with the heat as much as you can, so that you can use the energy more productively. Pot Diameter 50*60 60*60 Aux burner 12-18 cm 12-18 cm Semi Rapid 18-20 cm 18-20 cm 22-26 cm 22-26 cm Rapid WOK burner...

  • Page 37: Cooking Time Table

    COOKING TIME TABLE WARNING: Oven must be preheated for 10 minutes before placing the food in it. (Refer to Gas Mark comparison page 31) Cooking Temperature Rack Cooking Foods Function (°C) Position Duration (min.) Cake (Tray/Mold) Static / Static+fan 170-180 35-45 Small cakes Static / Turbo+fan...

  • Page 38: Maintenance And Cleaning

    MAINTENANCE AND CLEANING 1. Disconnect the plug supplying electricity for the oven from the socket. 2. While oven is operating or shortly after it starts operating, it is extremely hot. You must avoid touching from heating elements. 3. Never clean the interior part, panel, trays and all other parts of the oven by the tools like hard brush, cleaning mesh or knife.

  • Page 39: Cleaning And Maintenance Of The Oven's Door

    Cleaning And Maintenance Of The Oven’s Door Drop-down door glass Remove the profile by pressing the plastic latches on both left and right sides as shown in figure 24 and pulling the profile towards yourself as shown in figure 25. Then remove the inner-glass as shown in figure 26. If required, middle glass can be removed in the same way.

  • Page 40: Rack Positions

    Rack Positions It is important to place the wire grill into the oven properly. Do not allow wire rack to Rack 4 touch rear wall of the oven. Rack positions Rack 3 are shown in the next figure. You may place Rack 2 a deep tray or a standard tray in the lower Rack 1...

  • Page 41: Changing The Oven Lamp

    Changing The Oven Lamp WARNING: To avoid electric shock, ensure that the appliance circuit is open before changing the lamp. (having circuit open means power is off) First disconnect the power of appliance and ensure that appliance is cold. Remove the glass protection by turning as indicated in the figure. If you have difficulty in turning, then using plastic gloves will help you in turning.

  • Page 42: Using The Grill Deflector Sheet

    Using The Grill Deflector Sheet * 1. A safety panel is designed to protect control panel and the buttons when the oven is in Grill mode (figure 31) 2. Please use this safety panel in order to avoid the heat to damage control panel and the buttons when the oven is Grill mode.

  • Page 43: Troubleshooting

    TROUBLESHOOTING You may solve the problems you may encounter with your product by checking the following points before calling the technical service. Check Points In case you experience a problem about the oven, first check the table below and try out the suggestions. Problem Possible cause What to do...
  • Page 44 Problem Possible cause What to do Water dripping. Water or steam may generate under Steam coming out from a crack on certain conditions depending on Let the oven cool down and than oven door. the food being cooked. This is not wipe dry with a dishcloth.

  • Page 45: Handling Rules

    HANDLING RULES 1. Do not use the door and/or handle to carry or move the appliance. 2. Carry out the movement and transportation in the original packaging. 3. Pay maximum attention to the appliance while loading/unloading and handling. 4. Make sure that the packaging is securely closed during handling and transportation.

  • Page 46: Help And Assistance

    Help and assistance If you require any technical guidance or find that your Freestanding Cooker is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 3052263.
  • Page 47 Declaration of conformance to product standards This appliance conforms to all relavant standards applicable to domestic appliances sold in the UK Disposal This appliance/fitting is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
  • Page 48 Activate your 24 month guarantee Thank you for choosing New World. Your new product is guaranteed against faults and breakdowns for 24 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates www.newworldassist.co.uk Or call 0333 3052263 for your New World Guarantee.
