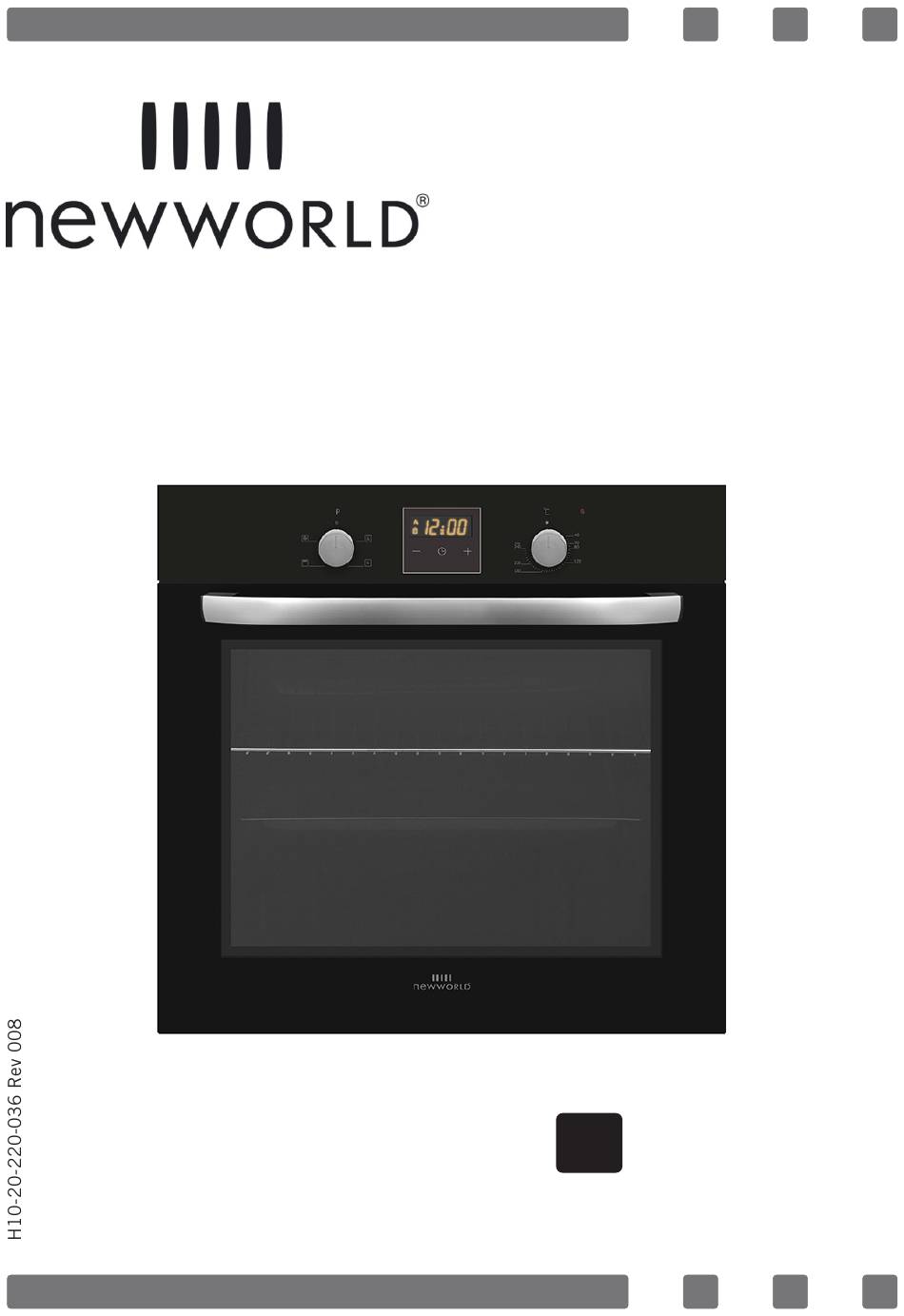

  • Page 1 60cm BUILT-IN Oven NWFOT60W NWFOT60B NWFOT60X USER MANUAL...
  • Page 2 You’ll soon be enjoying your new Built in Oven. It all begins here, with your instructions. Don’t worry, there’s nothing too technical coming up. Just simple, step-by-step guidance to get you up and running quickly. Sound good? Then let’s get started. “THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH REGULATIONS ENFORCE AND ONLY USED IN A WELL VENTILATED SPACE.

  • Page 3: Table Of Contents

    Contents Important warnings Electrical connection Introducing the appliance Accessories Technical specifications Installation of appliance Control panel Using the oven Using the grill Program types Cooking recommendations Cooking table Baking with pizza stone Maintenance and cleaning Steam cleaning Cleaning and mounting oven door Cleaning oven glass Rack positions Replacing oven lamp...

  • Page 4: Important Warnings

    IMPORTANT WARNINGS 1. Installation and repair should always be performed by “AUTHORIZED SERVICE”. Manufacturer shall not be held responsible for operations performed by unauthorized persons. 2. Please read this operating instructions carefully. Only by this way you can use the appliance safely and in a correct manner.
  • Page 5 12. Ensure that the oven door is completely closed after putting food inside the oven. 13. NEVER try to put out the fire with water. Only shut down the device circuit and then cover the flame with a cover or a fire blanket. 14.
  • Page 6 21. Put curtains, tulles, paper or any flammable (ignitable) material away from the appliance before starting to use the appliance. Do not put ignitable or flammable materials on or in the appliance. 22. Keep the ventilation channels open. 23. The appliance is not suitable for use with an external timer or a separate remote control system.
  • Page 7 33. Do not use the appliance with its front door glass removed or broken. 34. Place the baking paper together with the food into a pre-heated oven by putting it inside a cooker or on an oven accessory. (tray, wire grill etc.) 35.
  • Page 8 41. Do not use abrasive cleaners or sharp metal scrapers to clean the glass as the scratches that may occur on the surface of the door glass may cause the glass to break. 42. User should not handle the oven by himself. 43.
  • Page 9 Electrical Safety 1. Plug the appliance in a grounded socket protected by a fuse conforming to the values specified in the technical specifications chart. 2. Have an authorized electrician set grounding equipment. Our company shall not be responsible for the damages that shall be incurred due to using the product without grounding according to local regulations.
  • Page 10 11. The rear surface of the oven also heats up when the oven is operated. Electrical connections shall not touch the rear surface, otherwise the connections may be damaged. 12. Do not tighten the connecting cables to the oven door and do not run them over hot surfaces. If the cord melts, this may cause the oven to short circuit and even a fire.
  • Page 11 19. Fixed connections shall be connected to a power supply enabling omnipolar disconnection. For appliances with over voltage category below III, disconnection device shall be connected to fixed power supply according to wiring code. Intended Use 1. This product has been designed for domestic use. Commercial use is not permitted.

  • Page 12: Electrical Connection

    Electrical Connection This oven must be installed and connected to its place correctly according to manufacturer instructions and by an authorized service. Appliance must be installed in an oven enclosure providing high ventilation. Electrical connections of the appliance must be made only via sockets having earth system furnished in compliance with rules.

  • Page 13: Introducing The Appliance

    INTRODUCING THE APPLIANCE 1. Control panel 4. Oven door 2. In tray wire grill 5. Lamp 3. Standard tray...

  • Page 14: Accessories

    Accessories Baking tray Used for pastry (cookie, biscuit etc.), frozen foods. Grill tray insert Foods to stick while cooking such as steak are placed on in tray grill. Thus contact of food with tray and sticking are prevented. Wire grill Used for roasting or placing foods to be baked, roasted and frozen into desired rack.

  • Page 15: Technical Specifications

    Technical Specifications Specifications 60 cm Built-in oven (MFA1-6..) Lamp power 15-25 W 40-240 / Max °C Thermostat Lower heater 1200 W Upper heater 1000 W Turbo heater 1800 W Grill heater Small grill 1000 W Big grill 2000 W Supply voltage 220V-240 V 50/60 Hz.
  • Page 16 WARNING: The rules about electrical local standards must be adhered to during product installation. WARNING: Check for any damage on the product before installing it. Do not have product installed if it's damaged. Damaged products pose danger for your safety. Important Warnings for Installation: Cooling fan shall take extra steam out and prevent outer surfaces of appliance from...
  • Page 17 60 cm Built-In Oven Installation And Mounting Place of use for product must be located before starting installation. Product mustn't be installed in places which are under the effect of strong air flow. Carry the product with minimum two people. Do not drag the product so that floor isn't damaged.
  • Page 18 Supply cord mustn't be under the oven, squeeze in between oven and furniture or bend. Fix the oven to the furniture by using the screws provided with the product. Screws must be mounted as shown in figure 5 by passing them through plastics attached to frame of the product.
  • Page 19 Figure 2 Figure 3...
  • Page 20 Figure 4...

  • Page 21: Control Panel

    Figure 5 CONTROL PANEL 1. Function control 2. 3 button timer 3. Thermostat control WARNING: The control panel above is only for illustration purposes. Consider the control panel on your device.
  • Page 22 Thermostat Control: Helps set cooking temperature of the food to be cooked in the oven. You desired temperature by turning the control after placing the food into the oven. Check cooking table related cooking temperatures of different foods. WARNING: The control panel above is only for illustration purposes. Consider the control panel on your device.

  • Page 23: Using The Oven

    Minus button Plus button Time of day adjustment button SCREEN SYMBOLS Oven status indication • On: Cooking or ready for cooking. • Off: No cooking. Minute minder status indication • On: Minute minder alarm active. • Flashing: Minute minder adjustment mode, adjustment possible by buttons or current minute minder alarm completed.
  • Page 24 It is an electronic timing module enabling your food you have put in the oven to be ready for service at any time you like. The only thing you need to do is to programme the cooking time of the food and also the time when you would like your food to be ready. It is also possible to use a minute-programmed alarm clock independent from the oven.
  • Page 25 CANCELLING THE ALARM BUZZER SOUND Once the adjusted minute minder duration is elapsed, the buzzer alarm will start to sound, accompanied by the flashing symbol on the screen. Any button press will stop the alarm sound and this indication. If no button is pressed, the alarm sound will end automatically after 5 minutes, but the flashing symbol will go on.
  • Page 26 END OF AUTO COOKİNG When the cooking is finished automatically, the icon starts to flash. Alarm may be turned off by pressing any key. To disable the key lock, press the key for 2 seconds. Oven is taken to the manual mode by pressing the key.
  • Page 27 USING THE OVEN Initial Use Of Oven Here are the things you must do at first use of your oven after making its necessary connections as per instructions: 1. Remove labels or accessories attached inside the oven. If any, take out the protective folio on front side of the appliance.

  • Page 28: Using The Grill

    Using The Grill 1. When you place the grill on the top rack, the food on the grill shall not touch the grill. 2. You can preheat for 5 minutes while grilling. If necessary, you may turn the food upside down. 3.

  • Page 29: Program Types

    PROGRAM TYPES Program Control: program types help you select the best program for the best cooking results. Tables and information listed below for your reference and guidence. Cooking Program types: Turbo heater and fan Grill Grill and fan Grill: Grill cooker is used for grilling meat like foods such as steak, sausage and fish.

  • Page 30: Cooking Recommendations

    COOKING RECOMMENDATIONS You can find in the following table the information of food types which we tested and identified their cooking values in our labs. Cooking times can vary depending on the network voltage, quality of material to be cooked, quantity and temperature. Dishes to cook by using these values might not appeal to your taste.

  • Page 31: Cooking Table

    Cooking Table MFA1-6..: Cooking Cooking Cooking Cooking Food function temperature (°C) rack time (min.) Cake Static / Static+fan 170-180 35-45 Small cake Static / Turbo+fan 170-180 25-30 Static / Static+fan 180-200 35-45 Pastry Static 180-190 20-25 Cookie Static 170-180 20-25 Apple pie Static / Turbo+fan...

  • Page 32: Baking With Pizza Stone

    Baking With Pizza Stone When baking with pizza stone, place pizza stone over wire rack and pre-heat the oven in pizza mode (turbo + lower) at 230 °C for 30 minutes. Once pre-heating is completed, without removing pizza stone put pizza over it with the peel (do not place frozen pizza) and bake at 180 °C for 20-25 minutes.

  • Page 33: Maintenance And Cleaning

    MAINTENANCE AND CLEANING 1. Remove the power plug from electrical socket. 2. Do not clean inner parts, panel, trays and other parts of the product with hard tools such as bristle brush, wire wool or knife. Do not use abrasive, scratching materials or detergent.

  • Page 34: Cleaning And Mounting Oven Door

    Cleaning And Mounting Oven Door Figure 8 Figure 9 Figure 8.1 Figure 8.2 Figure 9.1 Figure 9.2 Open the door fully Set the hinge lock Later, close the For easier removal by pulling the to the widest angle opened oven door of oven door, when oven door toward as in figure 8.2.

  • Page 35: Cleaning Oven Glass

    Cleaning Of The Oven Glass Your product may differ. Follow the appropriate step for your product. 1. Press the plastic latches on the left and right sides as shown in Figure 10 and lift the the profile by pulling it towards you as shown in Figure 11.

  • Page 36: Rack Positions

    Rack Positions It is important to place the wire grill into the oven properly. Do not allow wire rack to Rack 4 touch rear wall of the oven. Rack positions Rack 3 are shown in the next figure. You may place Rack 2 a deep tray or a standard tray in the lower Rack 1...

  • Page 37: Replacing Oven Lamp

    Replacing Oven Lamp WARNING: To avoid electric shock, ensure that the appliance circuit is open before changing the lamp. (having circuit open means power is off) First disconnect the power of appliance and ensure that appliance is cold. Remove the glass protection by turning as indicated in the figure on the left side.

  • Page 38: Troubleshooting

    TROUBLESHOOTING You may solve the problems you may encounter with your product by checking the following points before calling the technical service. Check Points In case you experience a problem about the oven, first check the table below and try out the suggestions. Problem Possible Cause What to Do...
  • Page 39 Problem Possible Cause What to Do Water dripping. Water or steam may generate under Steam coming out from a crack on certain conditions depending on Let the oven cool down and than oven door. the food being cooked. This is wipe dry with a cloth.

  • Page 40: Handling Rules

    HANDLING RULES 1. Do not use the door and/or handle to carry or move the appliance. 2. Carry out the movement and transportation in the original packaging. 3. Pay maximum attention to the appliance while loading/unloading and handling. 4. Make sure that the packaging is securely closed during handling and transportation.

  • Page 41: Declaration Of Conformance And Disposal

    Declaration of conformance to product standards This appliance conforms to all relavant standards applicable to domestic appliances sold in the UK Disposal This appliance/fitting is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

  • Page 42: Help And Assistance

    Help and assistance If you require any technical guidance or find that your BI Oven is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.newworldassist.co.uk. Thank you for choosing New World. Your new product is guaranteed against faults and breakdowns for 3 years.
  • Page 43 Activate your 24 month guarantee Thank you for choosing New World. Your new product is guaranteed against faults and breakdowns for 24 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates www.newworldassist.co.uk Or call 0333 3052263 for your New World Guarantee.
  • Page 44 Contact: www.newworldassist.co.uk Helpline: 0333 3052263...
