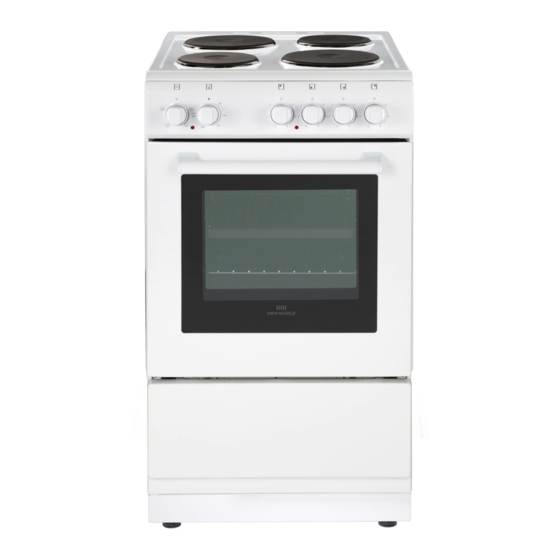

Electrical freestanding oven

Advertisement

NW 50ES WHI/444443914
NW 50ES BLK/444443915
OPERATING AND INSTALLATION
INSTRUCTIONS OF ELECTRICAL
FREESTANDING
OVEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NW 50ES WHI 444443914 and is the answer not in the manual?

Questions and answers

Summary of Contents for Newworld NW 50ES WHI 444443914

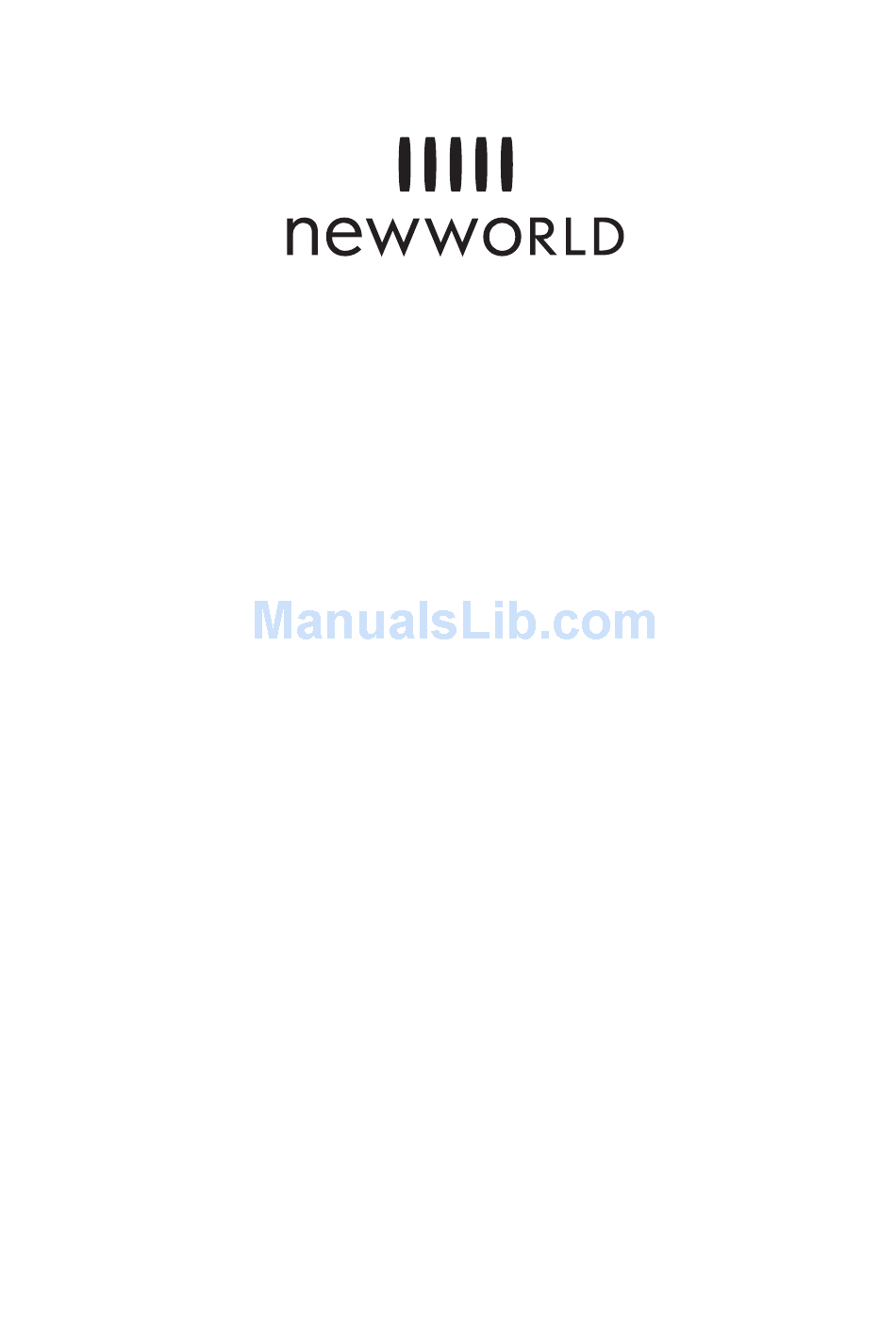

  • Page 1 NW 50ES WHI/444443914 NW 50ES BLK/444443915 OPERATING AND INSTALLATION INSTRUCTIONS OF ELECTRICAL FREESTANDING OVEN...
  • Page 2 Dear Customer, Thank you for purchasing this Cooking Appliance. The safety precautions and recommendations in these instructions are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance. Please keep this booklet in a safe place.
  • Page 3: Table Of Contents

    CONTENTS : 1. LAYOUT OF YOUR COOKER 2. SAFETY WARNINGS 3. INSTALLING AND USING YOUR COOKER 4. USING YOUR COOKER 5. CLEANING AND MAINTENANCE 6. SERVICE AND TRANSPORT...
  • Page 4: Layout Of Your Cooker

    PART 1 : LAYOUT OF YOUR COOKER List of components: 1- Cooktop 2- Control Panel 3- Oven Door Handle 4- Supply Leg 5- Oven Door 6- Oven Tray 7- Wire Grid 8- Front Resistance 9- Hotplate...
  • Page 5: Safety Warnings

    PART 2 : SAFETY WARNINGS PLEASE READ THE ENTIRE INSTRUCTION MANUAL CAREFULLY BEFORE USING YOUR APPLIANCE. MAKE SURE TO KEEP THE MANUAL SOMEWHERE SAFE IN CASE YOU NEED IT FOR FUTURE REFERENCE. THIS INSTRUCTION MANUAL HAS BEEN WRITTEN WITH OUR OTHER COOKER MODELS IN MIND, AS WELL AS YOUR MODEL, THEREFORE SOME OF THE FEATURES THAT YOU SEE EXPLAINED IN THIS MANUAL WILL NOT BE APPLICABLE TO YOUR COOKER.
  • Page 6 WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket. WARNING: Danger of fire: do not store items on the cooking surfaces.
  • Page 7 WARNING:In order to prevent tipping of the appliance, the stabilizing brackets must be installed. (For detail information please read the anti-tilting kit set guide.) During use, the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. During use, handles held for short periods in normal use can get hot.
  • Page 8 CAUTION: Accessible parts may be hot when the cooking or grilling is in use. Young children should be kept away. Your appliance is produced in accordance with all applicable local and international standards and regulations. Maintenance and repair work must be made only by authorized service technicians. Installation and repair work that is carried out by unauthorized technicians may endanger you.
  • Page 9 The surrounding materials of the appliance (cabinet) must be able to withstand a temperature of min 100°C. During usage When you first run your oven a certain smell will emanate from the insulation materials and the heater elements. For this reason, before using your oven, run it empty at maximum temperature for 45 minutes.
  • Page 10: Installing And Using Your Cooker

    PART 3. INSTALLING AND USING YOUR COOKER Please contact an authorized service to position your cooker for you. 3.1 Installing the cooker There are several factors to consider when choosing a place for your cooker. Follow our advice below in order to prevent any problems and dangerous situations from happening. Furniture can be placed in the surrounding area of the cooker, providing that the furniture's height does not exceed the height of the cooker panel.
  • Page 11 3.2 ELECTRIC CONNECTION AND SECURITY When it comes to connecting you appliance, please follow the instructions below carefully. - The earthing cable (the green and yellow wire) must be connected to the terminal. Make sure the insulated cable is connected to a power source during the connection of the cable. - If there is not any appropriate earthed electrical outlet that conforms with regulations then call an authorised service immediately.
  • Page 12 This appliance must be earthed. For this connection, ‘ Twin and Earth 6242Y’ type cable should be used. Product Power Voltage Supply Cable 3X2,5 mm² 5000-8600W 220V >=8600W 220V 3X4 mm² 3X2,5 mm² 5000-9000W 230V >=9000W 230V 3X4 mm² 3X2,5 mm² 5000-9500W 240V >=9500W...
  • Page 13 3.3 INSTALLING THE ANTI-TILTING BRACKET...
  • Page 14: Using Your Cooker

    4. USING YOUR COOKER 4.1 GENERAL LAYOUT AND TECHNICAL FEATURES 14.5cm HOTPLATE (x2) 1000 WATT (X2) 18.0cm HOTPLATE (x2) 1500 WATT (X2) LOWER HEATER 1000 WATT UPPER HEATER 1000 WATT GRILL 1600 WATT 4.2 CONTROL PANEL 4.3 USE OF HOTPLATES The hotplates on this electrical cooker are controlled by 7 power levels.
  • Page 15 The surface of each hotplate is covered with a heat resistant material. To toughen the heat resistant material before using it for cooking, turn the hotplate to power level 3 and let it operate for 5 minutes. When using the hotplates on the electrical cooker, please make sure you use saucepans that fit the size of the hotplate and that they have smooth, flat bases so you can use the cooker efficiently.
  • Page 16 4.4. UNDERSTANDING THE COOKER FUNCTIONS * The functions of your oven may be different due to the model of your product. The function section has been adapted to show ONLY the functions for this cooker model Static Cooking Function The static function uses the upper and lower heating elements to ensure even cooking. This is ideal for making pastries, cakes, baked pasta, lasagne and pizza.
  • Page 17 4. 4. 5 Accessories Used in Oven You can also use glass containers, cake cutters and other oven safe trays found in retail. If you aren't sure about the use of a certain cookware, follow the information given by the manufacturer concerning this issue.
  • Page 18 Oven Accessories * This instruction manual has been written with our other cooker models in mind, as well as your model, therefore some of the accessories of your cooker may be different to the accessories listed below. Wire grid The wire grid is used to grill or to place different containers and cookware in the oven.
  • Page 19 Heat Deflector Warning: When operating the grill for periods in excess of 15 minutes, always fit the heat deflector provided, avoiding exposure to exposure to excessive control knob temperature. Care should be taken when returning the grill door to the vertical closed position, avoiding hand contact with the deflector.
  • Page 20: Cleaning And Maintenance

    PART 5 : CLEANING AND MAINTENANCE 5. 1 CLEANING Before cleaning your cooker, make sure that all the control knobs are set to “0” and your cooker is cool to the touch. Unplug the appliance. Before you clean, check whether the cleaning equipment and detergents you use are appropriate for the oven, and what is recommended by the manufacturer.
  • Page 21: Service And Transport

    PART 6 : SERVICE AND TRANSPORT 6.1. TROUBLESHOOTING BEFORE CONTACTING A REPAIR SERVICE If the cooker is not working: 1. Make sure the cooker is plugged in and switched on. 2. Check other appliances to make sure there hasn't been a power cut. 3.
  • Page 22 Brand NW 50ES WHI Model NW 50ES BLK Type of Hob Electric Number of Cooking Zones Heating Technology-1 Hotplate Size-1 Ø14,5 Energy Consumption-1 Wh/kg 193,0 Heating Technology-2 Hotplate Size-2 Ø14,5 Energy Consumption-2 Wh/kg 193,0 Heating Technology-3 Hotplate Size-3 Ø18,0 Energy Consumption-3 Wh/kg 193,0 Heating Technology-4...
  • Page 23 Brand NW 50ES BLK Model NW 50ES WHI Type of Oven ELECTRIC Mass 38,6 Energy Efficiency Index - conventional 104,8 Energy Efficiency Index - fan forced Energy Class Energy consumption (electricity) kWh/cycle 0,81 - conventional Energy consumption (electricity) kWh/cycle - fan forced Number of cavities Heat Source ELECTRIC...
  • Page 24 The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this...
