MULTIFUNCTION OVEN
MODEL:NWCMBOBP
WARNING: Read the instructions before using the appliance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NWCMBOBP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newworld NWCMBOBP

Summary of Contents for Newworld NWCMBOBP

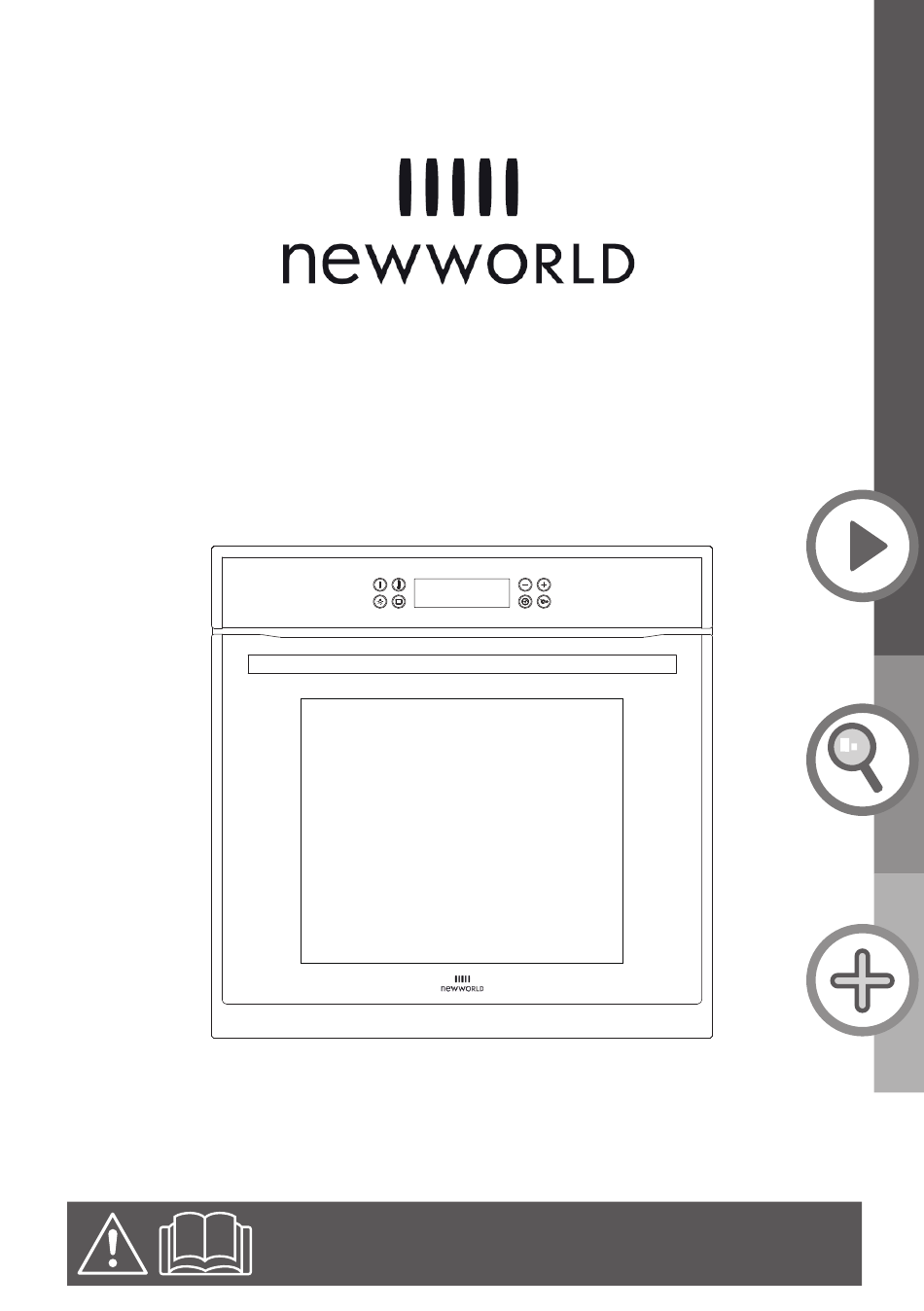

  • Page 1 MULTIFUNCTION OVEN MODEL:NWCMBOBP WARNING: Read the instructions before using the appliance.
  • Page 2 [02] x 1 [01] x 1 [03] x 1 [04] x 2 [05] x 1 (Set) installed [06] x 2 1 : 1 Supplied parts description [01] Oven [02] Handle for tray [03] Grill pan set [04] Oven Shelf [07] x 2 [05] Telescopic runner (Ø4mm x 25mm)

  • Page 3: Table Of Contents

    Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started… Your product Before you start Safety more detail… Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix...

  • Page 4: Your Product

    Your product Your product Note! This diagram may be slightly different from the layout of the appliance. Fig. Fig. 2.2 0:00 11 12 Key: Fig. 2.1 Key: Fig. 2.2 ON /OFF Clock A. Display Temperature Rapid Heat B. Control - Adjustment Duration (Auto) C.

  • Page 5: Before You Start

    Before you start Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners.

  • Page 6: Safety

    Safety INSTALLATION WARNINGS IMPORTANT: Prior to Installation ensure that the local supply conditions (electricity voltage and frequency) are compatible with the require- ments of your built-in oven. IMPORTANT: Carefully unpack and examine the appliance for any damage. If you think there is a defect, do not use the appliance and contact Product Support on 0333 305 2263.
  • Page 7 Safety IMPORTANT : Protect your built-in oven against atmospheric effects. Do not expose your oven to effects such as sun, rain, snow etc. IMPORTANT: The materials surrounding the appliance (cabinets) must be able to withstand a minimum temperature of 100°C. IMPORTANT: When using your oven for the first time your it may give off an un-usual odour from the heating elements and insulation...
  • Page 8 Safety appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervi- sion. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
  • Page 9 Safety IMPORTANT: When using the grill the oven door must be kept closed. IMPORTANT: Make sure the oven control knobs are all in the off position when not in use. IMPORTANT: If you do not intend to use your built-in oven for a long period of time turn off the electric supply to the oven.
  • Page 10 Safety IMPORTANT: Your appliance is produced in accordance with all applicable local and inter- national standards and regulations. IMPORTANT: Maintenance and repair work must only be performed by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians is dan- gerous and could invalidate your guarantee.
  • Page 11 Safety WARNING: Do not use harsh abrasive clean- ers or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE REC- OMMEND YOU ALWAYS USE OUR AUTHO- RISED SERVICE AGENTS AND ORIGINAL SPARE PARTS.

  • Page 12: Operation

    Operation Introduction Note: This multifunction oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. The various features offered by the oven are selected by means of selector knob "B"...
  • Page 13 Operation Product functions > The oven is controlled by a thermostat between 60ºC and 250ºC, depending on the temperature required. The thermostat pilot light turns on and off to indicate the temperature control during use. > The required cooking mode is selected using the multifunctional control button.
  • Page 14 Operation Cooking Table The oven control settings and cooking times given in the table below are intended to be used Top (T) AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a preferred result. ArtNo.050-0007 Centre (C) Oven shelf positions...
  • Page 15 Operation Once the cooker is connected and switched on, If the clock time needs to be reset or adjusted, the display will start to flash. The clock must be please follow the procedure below. set to the time of day before the oven will work. Changing the time Setting the time Step 1.
  • Page 16 Operation Using the oven Please read the following steps before using the oven. Step 6. Set the temperature - increase. Step 1. Switch on. 180c 9:03 Step 7. Set the temperature - decrease. Step 2. Function display will flash. 180c Step 3.
  • Page 17 Operation Change a function mode Change a function temperature Step 1. Press the Function button the display will flash. Step 1. Press temperature until display flashes. 180c 180c Step 2. Choose a function. Step 2. Set the temperature - increase. 180c 180c Step 3.
  • Page 18 Operation To stop the oven at a specific time of day Please set the oven function first. You have set the required temperature and function mode and you would like the oven to automatically stop. This features works by knowing the cooking duration. For example if the time is 13:30 and the food is required to bake for 45 minutes, the oven will stop working at 14:15.
  • Page 19 Operation To start and stop the oven automatically Please set the oven function first. The timer allows you to automatically start and stop by a combination of the length of the cooking time and the stop time. Giving you the flexibility to cook casseroles etc while you are out. You cannot set the actual start time. For example if the time is 13:30 and the food is required to bake for 45 minutes, the oven will stop working at 14:15.
  • Page 20 Operation To set the child lock Setting the minute minder he minute minder can only be used when the oven Step 1. In standby mode press the function and clock has no cook function selected. Step 1. 09.03 0:00 Press for 1 seconds. 9:00 Press for 1 second.
  • Page 21 Operation Using Rapid heat Rapid Heat allows you to preheat the oven quickly. Before using this function remove all oven trays. DO NOT put food in the oven when using the rapid heat function. This will effect your cooking process. All heating elements are used.
  • Page 22 Operation Setting a memory The memory function can be used to save a frequently used setting. Step 6. Set a frequently used temperature - decrease. Step 1. Switch on. 9:03 Step 2. Function display will flash. Step 7. Firmly press the rapid heat button until a tone is emitted.

  • Page 23: Care And Maintenance

    Care and maintenance Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Caution Do not use hot water, diluents, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc. for cleaning to not damage the enamel coating and plastic.
  • Page 24 Care and maintenance How to keep your oven in good condition Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that •...
  • Page 25 Care and maintenance How to remove the oven doors For a more thorough clean, you can remove the oven door. To remove the oven door use the following instructions: Open the lever A completely on the Open the door to the full extent. left hand hinges.
  • Page 26 Care and maintenance Removing the glass from the door Follow the procedure to remove the door. Place the door on a soft and clean surface. With both hands hold the door and push the buttons on either side of the oven door One the top cap has been removed you will have access to the glass.
  • Page 27 Care and maintenance Replacing the oven lamp Warning! Disconnect the appliance from the electricity supply, open the oven door and remove the oven shelves. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. 90’...

  • Page 28: Troubleshooting

    Troubleshooting Troubleshooting What should I do if the oven doesn’t heat up? Check to see if one of the following actions resolves the issue: • The oven may not be switched on. Switch the oven on. • The clock may not be set. Set the clock (see section “Setting the clock”). •...

  • Page 29: Recycling And Disposal

    Recycling and disposal Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste.

  • Page 30: Installation

    Installation Only a qualified person in compliance with the instructions provided must install the appliance. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property. Caution The power supply to the appliance must be cut off before any adjustments or maintenance work is carried out.
  • Page 31 Electrical connection This appliance must be installed by a qualified electrician to comply with the relevant Institution of Engineering and Technology (I.E.T.) regulations and also the local electricity supply company requirements. This appliance must not be connected to an ordinary domestic power point. The mains terminal is situated on the back of the oven.
  • Page 32 Fitting on a Power Supply Cable Opening the terminal board: Using a screwdriver ,prize the bolt · on the side tabs of the terminal board cover ; Using a screwdriver unhooking the · no.2 fixing hooks, pull open the cover of the terminal board. To install the cable, proceed as follows: 1.
  • Page 33 Fixing the oven Connect to mains power supply ensuring the cable is not bent. Lift oven into housing unit, do not lift the oven with the handle otherwise the glass door might shatter. Note: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 34 Adjusting the shelf position.
  • Page 35 Information for domestic ovens Symbol Value Unit Model identificatio NWCMBOB Type of oven Built-in electric oven Mass of the appliance 38.6 Number of cavities Heat source per cavity Electricity (electricity or gas) Volume per cavity Energy consumption 0.83 kWh/cycle electric cavity (electricity) required to heat a standardised load in a cavity of an electric heated oven...
  • Page 36 Help and assistance If you require any technical guidance or find that your washing machine is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 3052263*. To help give us give you a fast and efficient service please have the following information ready: You can find these on Model Ref.

  • Page 37: Guarantee

    Product support Help is always at hand Call us now and activate your 24 month guarantee Thank you for choosing New World. Your new product is guaranteed against faults and breakdowns for 24 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates.
  • Page 38 Contact: www.newworldassist.co.uk Helpline: 0333 305 2263 52292964...
