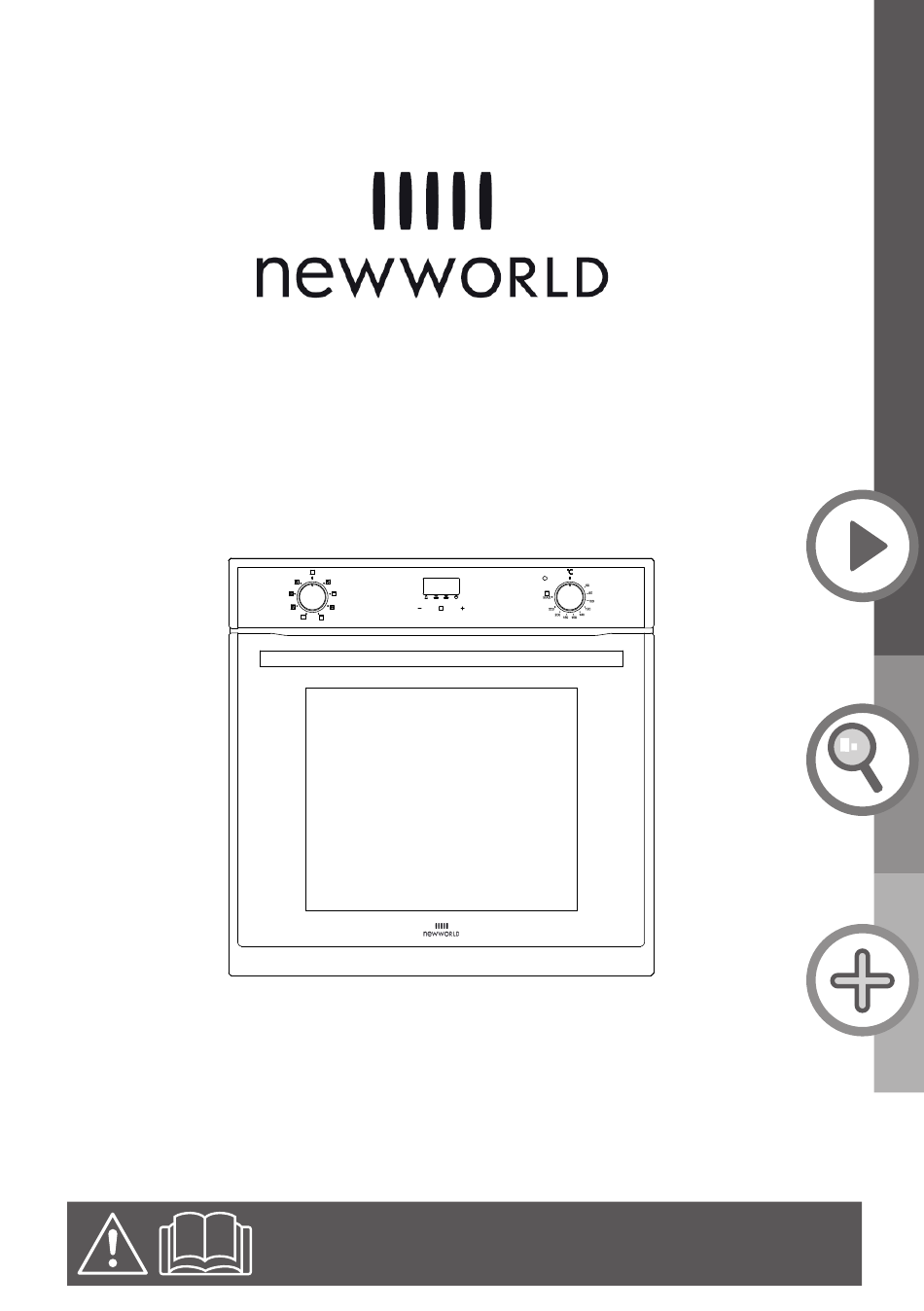

- Page 1 MULTIFUNCTION OVEN MODEL:NWCMBOB WARNING: Read the instructions before using the appliance.
- Page 2 [02] x 1 [01] x 1 [03] x 1 [04] x 1 [05] x 1 (Set) installed [06] x 2 Supplied parts description 1 : 1 [01] Oven [02] Handle for tray [03] Grill pan set [04] Oven Shelf [07] x 2 [05] Telescopic runner (Ø4mm x 25mm)
-
Page 3: Table Of Contents
Let's get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started… Your product Before you start Safety detail… more Operation Care and maintenance Troubleshooting Recycling and disposal Technical and legal information Appendix... -
Page 4: Your Product
Your product Your product Note! This diagram may be slightly different from the layout of the appliance. Control panel Cooking mode selection knob Cooking temperature selection knob Electronic programmer - allows you to programme the desired cooking by selecting the cooking time and the end cooking time. It can also be used as a timer Oven indication light Tray... -
Page 5: Before You Start
Before you start Things to check before you start To avoid the risks that are always present when you use an electrical appliance it is important that this appliance is installed correctly and that you read the safety instructions carefully to avoid misuse and hazards. Please keep this instruction booklet for future reference and pass it on to any future owners. -
Page 6: Safety
Safety INSTALLATION WARNINGS IMPORTANT: Prior to Installation ensure that the local supply conditions (electricity voltage and frequency) are compatible with the require- ments of your built-in oven. IMPORTANT: Carefully unpack and examine the appliance for any damage. If you think there is a defect, do not use the appliance and contact Product Support on 0333 305 2263. - Page 7 Safety IMPORTANT : Protect your built-in oven against atmospheric effects. Do not expose your oven to effects such as sun, rain, snow etc. IMPORTANT: The materials surrounding the appliance (cabinets) must be able to withstand a minimum temperature of 100°C. IMPORTANT: When using your oven for the first time it may give off an un-usual odour from the heating elements and insulation materials.
- Page 8 Safety appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervi- sion. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.
- Page 9 Safety IMPORTANT: When using the grill the oven door must be kept closed. IMPORTANT: Make sure the oven control knobs are all in the off position when not in use. IMPORTANT: If you do not intend to use your built-in oven for a long period of time turn off the electric supply to the oven.
- Page 10 Safety IMPORTANT: Your appliance is produced in accordance with all applicable local and inter- national standards and regulations. IMPORTANT: Maintenance and repair work must only be performed by authorised service technicians. Installation and repair work that is carried out by unauthorised technicians is dan- gerous and could invalidate your guarantee.
- Page 11 Safety WARNING: Do not use harsh abrasive clean- ers or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE REC- OMMEND YOU ALWAYS USE OUR AUTHO- RISED SERVICE AGENTS AND ORIGINAL SPARE PARTS.
-
Page 12: Operation
Operation Introduction Note: This multifunction oven combines the advantages of traditional convection ovens with those of the more modern fan assisted models in a single appliance. It is an extremely versatile appliance that allows you to choose easily and safely between different cooking modes. The various features offered by the oven are selected by means of selector knob "B"... - Page 13 Operation Product functions > The oven is controlled by a thermostat between 60ºC and 250ºC, depending on the temperature required. The thermostat pilot light turns on and off to indicate the temperature control during use. > The required cooking mode is selected using the multifunctional control button.
- Page 14 Operation The information given in the following charts is intended only as a guide. Select the lowest temperature quoted and check the food at the end of the shortest duration quoted. CONVENTIONAL Cakes/Biscuits Temperature °C Shelf Position Cooking Time (Recommended) in min.
- Page 15 Operation CONVENTIONAL Food Recommended Temperature °C Time in min. shelf level from the bottom Roast beef, approx. 1 kg 190 – 210 100 – 120 Beef fillet, approx. 1 kg 200 – 220 45 – 55 Venison, approx. 1 kg 190 –...
- Page 16 Operation FAN MODE Cakes / biscuits Temperature Shelf Position Cooking Time in min. (ºC) (Recommended) from the bottom Cake Mixture Desserts in Moulds Sponge cake 150-170 60-70 Marble, nut cake (tin) 150-170 60-80 Fresh fruit cake (tray) 150-170 35-45 Flan base 150-170 25-30 Biscuits (tray)
- Page 17 Operation Food to be Recom- GRILL FAN GRILL grilled mended shelf level from the bottom Temperature Total Temperature Total setting setting grilling grilling Time in Time in min. min. Thin cuts Steak 3 or 4 maximum 10-16 maximum 20-25 Kebabs maximum 25-30 maximum...
- Page 18 Operation 3-key timer procedure cooking mode Adjust the clock after switch on Once it connected with electrical power, the display will show “12:00” with the square symbol above “ ”. Press the + or - button will increase or decrease the number until it reaches the right time.
- Page 19 Operation Semi-automatic setting Setting the required time frame for baking (10 hours maximum) • Press the function button repeatedly until the square symbol above “ ”, and set the required time using the + and - buttons. • Adjusting the baking method (thermostat, oven operation). •...
- Page 20 Operation Cooling ventilation • In order to cool down the exterior of the appliance, this model is equipped with a cooling fan, which comes on automatically when the oven is hot. • When the fan is on, a normal flow of air can be felt exiting between the oven door and the control panel Practical cooking advice •...
- Page 21 Operation Using the fan assisted grill Use the grill in the same way as the standard grill, always ensure the oven door is closed. This mode is recommend for quick browning on the outside but keeping the juices in. Ideal for chops and burgers. Using the fan oven mode The rear circular element and the fan come on and the heat is dispersed by forced convection.
-
Page 22: Care And Maintenance
Care and maintenance Care and maintenance Warning Always switch off the electricity supply before performing maintenance work. In the event of a fault, FUSE contact customer services. Caution Do not use hot water, diluents, petrol, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, chemical cloth, etc. for cleaning to not damage the enamel coating and plastic. - Page 23 Care and maintenance How to keep your oven in good condition Before cleaning your oven, or performing maintenance, disconnect it from the power supply. To extend the life of your oven, it must be cleaned frequently, keeping in mind that •...
- Page 24 Care and maintenance How to remove the oven doors For a more thorough clean, you can remove the oven door. To remove the oven door use the following instructions: Open the lever A completely on the Open the door to the full extent. left hand hinges.
- Page 25 Care and maintenance Removing the glass from the door Follow the procedure to remove the door. Place the door on a soft and clean surface. With both hands hold the door and push the buttons on either side of the oven door One the top cap has been removed you will have access to the glass.
- Page 26 Care and maintenance Replacing the oven lamp Warning! Disconnect the appliance from the electricity supply, open the oven door and remove the oven shelves. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. 90’...
-
Page 27: Troubleshooting
Troubleshooting Troubleshooting What should I do if the oven doesn’t heat up? Check to see if one of the following actions resolves the issue: • The oven may not be switched on. Switch the oven on. • The clock may not be set. Set the clock (see section “Setting the clock”). •... -
Page 28: Recycling And Disposal
Recycling and disposal Technical and legal information Recycling and disposal Environmental protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. The symbol on the product or its packaging indicates that this product cannot be treated as normal household waste. - Page 29 Installation Only a qualified person in compliance with the instructions provided must install the appliance. The manufacturer declines all responsibility for improper installation, which may harm persons and animals and damage property. Caution The power supply to the appliance must be cut off before any adjustments or maintenance work is carried out.
- Page 30 Electrical connection This appliance must be installed by a qualified electrician to comply with the relevant Institution of Engineering and Technology (I.E.T.) regulations and also the local electricity supply company requirements. This appliance must not be connected to an ordinary domestic power point. The mains terminal is situated on the back of the oven.
- Page 31 · · 1. Open the terminal board 2. Remove the wire clamp screw and the three contact screws L-N - 3. Fasten the wires beneath the screw heads using the following color scheme : Blue (N) Brown (L) Yellow-Green 4. Fasten the supply cable in place with the clamp and close the cover of the terminal board.
- Page 32 Fixing the oven Connect to mains power supply ensuring the cable is not bent. Lift oven into housing unit, do not lift the oven with the handle otherwise the glass door might shatter. Note: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Page 33 Adjusting the shelf position.
- Page 34 Information for domestic ovens Symbol Value Unit Model identification NWCMBOB Type of oven Built-in electric oven Mass of the appliance 37.8 Number of cavities Heat source per cavity Electricity (electricity or gas) Volume per cavity Energy consumption 0.74 kWh/cycle electric cavity...
- Page 35 Help and assistance If you require any technical guidance or find that your washing machine is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions or online at www.newworldassist.co.uk If you still require further assistance, call one of our experts on 0333 3052263*. To help give us give you a fast and efficient service please have the following information ready: You can find these on Model Ref.
- Page 36 Product support Help is always at hand Call us now and activate your 24 month guarantee Thank you for choosing New World. Your new product is guaranteed against faults and breakdowns for 24 months. Don’t forget to register it with us today so we can provide you with our best possible after-sales service and useful updates.
- Page 37 Contact: www.newworldassist.co.uk Helpline: 0333 305 2263 52292964...
