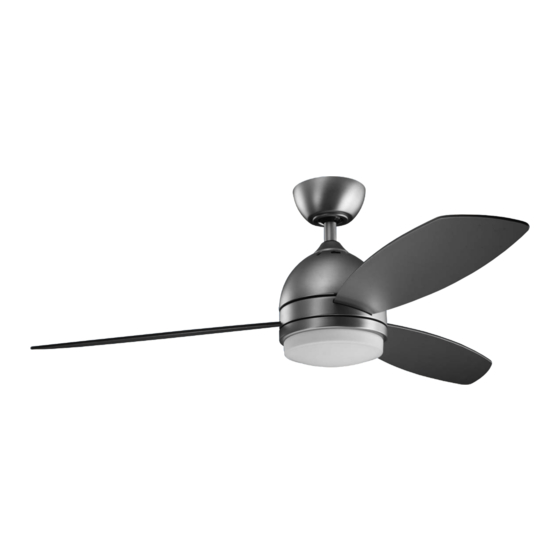

- Page 1 52” Vassar™LED Includes our new Wall Remote Control System Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST, Monday - Friday...
-
Page 2: Safety Rules
1. SAFETY RULES 9. To avoid personal injury or damage to the 1. To reduce the risk of electric shock, insure electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan. -
Page 3: Tools And Materials Required
52" Vassar 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (3) Canopy & Ceiling mounting bracket Ball/downrod assembly Coupling cover Fan motor assembly... -
Page 4: Mounting Options
4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure. -
Page 5: Hanging The Fan
52" Vassar 5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power before you begin. Ceiling canopy To properly install your ceiling fan, follow the steps below. Canopy cover Step 1. Remove the decorative canopy Fig. 5 bottom cover from the canopy by turning the cover counter clockwise. - Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Downrod tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9. Lift the motor assembly into position Canopy cover and place the hanger ball into the ceiling mounting bracket.
-
Page 7: Installation Of Safety Support
52" Vassar 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install Hanger bracket it as follows. Safety cable Step 1. Attach the provided wood screw and Attach safety cable to ceiling joist with washers to the ceiling joist next to the mounting... -
Page 8: Finishing The Installation
Connect the white wire from the fan to the white Outlet box wire marked "TO MOTOR N" on the receiver. Connect the blue wire from the fan to the blue White (neutral) wire marked "FOR LIGHT" on the receiver. Black (hot) Secure all the wire connections with the plastic Green or bare copper (ground) -
Page 9: Attaching The Fan Blades
52" Vassar 9. ATTACHING THE FAN BLADES Insert the blade through the blade slot in the motor housing. Align the holes in blade and blade bracket, making sure the holes are also aligned and secure with the screws, fiber washers and blade support plates provided. Repeat process with other blades. -
Page 10: Installing The Led Light Kit And Glass Shade
11. INSTALLING THE LED LIGHT KIT AND GLASS SHADE NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Loosen the three mounting screws on the inside of the LED light kit. (Fig.18) Wire connectors Step 2. -
Page 11: Installing The Batteries
52" Vassar 12. INSTALLING THE BATTERIES Remove the face plate of the Wall Switch by lifting at the top and then insert the supplied 12V battery. Duracell MN21/Eveready A23/GP LIGHT 23A all 12V. Replace the switch face plate. ON ECE FAN OFF 1 2 3 4 To prevent possible damage to the... - Page 12 14. INSTALLING THE BASIC FUNCTION WALL CONTROL SYSTEM WALL Outlet box PLATE Switch Wall plate Select a location to install the Basic Function Wall Control System Transmitter and Wall Plate. Install the wall plate using an existing wall switch outlet box. Make sure the electrical power is TURNED OFF at the main panel before continuing.
- Page 13 52" Vassar 15. OPERATING INSTRUCTIONS The Black Slide Switch on the side of the switch housing controls the direction of the blades "Forward and Reverse". Warm weather - Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 26. This allows you to set your air conditioner on a warmer setting without affecting your comfort.
-
Page 14: Troubleshooting
16. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
