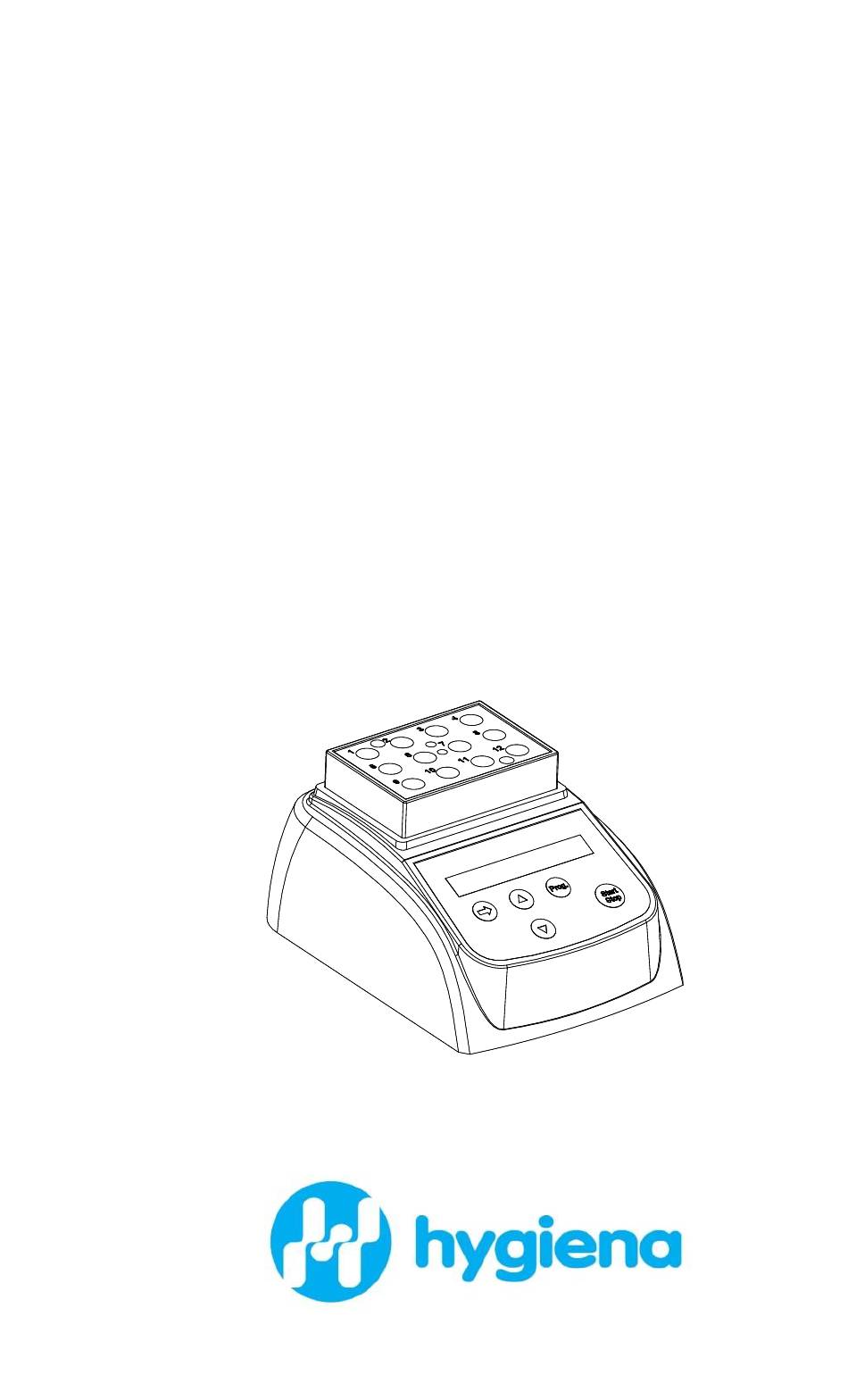

- Page 1 INCUBATOR Operations Manual Version 1.0...
- Page 2 Foreword Thank you for purchasing our Products: INCUBATOR, This Manual for users contains function and operation of the Inst rument. In order to use the instrument properly, please read this manual carefully before using the Instrument. Opening Check Please check the Instrument and Appendix with the packing list when you first open the instrument packing case.
-
Page 3: Table Of Contents
3. Safety precautions……………..………………………..5 4. Operation guide..…………………………………………….6 4.1 Control elements……….…………………………………..6 4.2 Create a new program……..…………………………...6 4.3 Min or Sec….…….………………………………..……..6 4.4 Run and Stop…………………………………………….…7 4.5 Temperature calibration…………………………………..8 5.Maintenance and cleaning…………………………………10 6. Troubleshooting……………………………......10 Annex 1 Wiring Diagram for Incubator …………………...11 Packing list…………………………………………………..12... -
Page 4: Introduction
This Incubator designed for workstations in training and rese arch laboratories in the fields of bioscience, medicine and ch emistry. Before starting up this incubator for the first time, please rea d the rest of this operations manual. 1.1 Delivery package... -
Page 5: Structure Description
1.2 Structure Description Block Display Panel Power Switch Power connector... -
Page 6: Installing The Device
,and insert another connector of the adapter to mains p ower supply. 100-240V～ DC 12V 1.3.3 Power on the main switch. The incubator is ready to operate when the display becomes visible. 1.3.4 Put the test tube into the block. Tube... -
Page 7: Technical Data
2 Technical data Model INCUBATOR Power supply DC12V Power 35 W RT+5 ℃ ～ 80 ℃ Temperature range 1sec ～ 999sec or Timing range 1min ～ 999min Accuracy of the ≤± 0.5℃ temperature Display accuracy 0.1℃ (from 20 ℃ to 80 ℃) Heating time ≤12min... -
Page 8: Safety Precautions
3 Safety precautions This product is a normal and an indoor Instrument. Read the Manual carefully before operation, The expert o f wiring equipment can operate this Instrument. The operator should not open or repair the Instrument by hi mself, which will result in losing the qualification of repair gu arantee or occur accident. -
Page 9: Operation Guide
4. Operation guide 4.1 Control elements START/STOP----for start or stop the procedure PROG.-------------select various programs ----------------for setting the temperature and the time ----------------remove the cursor 4.2 Create a new program press “PROG.” key to select various programs, from P1 to P9 default. -
Page 10: Run And Stop
4.4 Run and Stop 4.4.1 Press “PROG.” key to select the program. 4.4.2 The instrument start to heat automatically according to the previ ous set temperature, it shows “NOTOK” at the display. When it reach t he target temperature, it shows “OK” at the display. Then pressing the P8 45.0 ℃... -
Page 11: Temperature Calibration
4.5 Temperature calibration The temperature of the instrument has been calibrated before it is sold out. But if there is deviation between the actual temperature and the displayed temperature due to some reasons, you can do as follows to correct the error. Notes: The Instrument uses double temperatures adjustment to ensure its veracity. - Page 12 4.5.3 Pressing “”and“” key simultaneously, practical temperature shows 20.5, and rise to 40.0 at once, at the same time the sign “*” flicker ceaselessly. When the practical temperature reach 40.0 Adj 40.0, the sign “ADJ” and “*” flicker ceaselessly together.
-
Page 13: Maintenance And Cleaning
5 Maintenance and cleaning The well in the block should be cleaned by the cloth stained with alcohol to assure good heat translation between the bl ock and the test tube and no pollution. If there are smutche s on the Instrument, clean them with cloth. Power off when cleaning the Instrument. -
Page 14: Annex 1 Wiring Diagram For Incubator
Annex 1 Wiring Diagram for Incubator 100-240V～ Adapter 12V 4A Mains switch Heater Sensor Main board Display panel... -
Page 15: Packing List
Packing List Item Type Incubator INCUBATOR Adapter 12V 4A Wrench Operations manual Certification... - Page 16 Hygiena 941 Avenida Acaso Camarillo, CA 93012 805-388-8007...
