Summary of Contents for Hygiena INCUBATOR

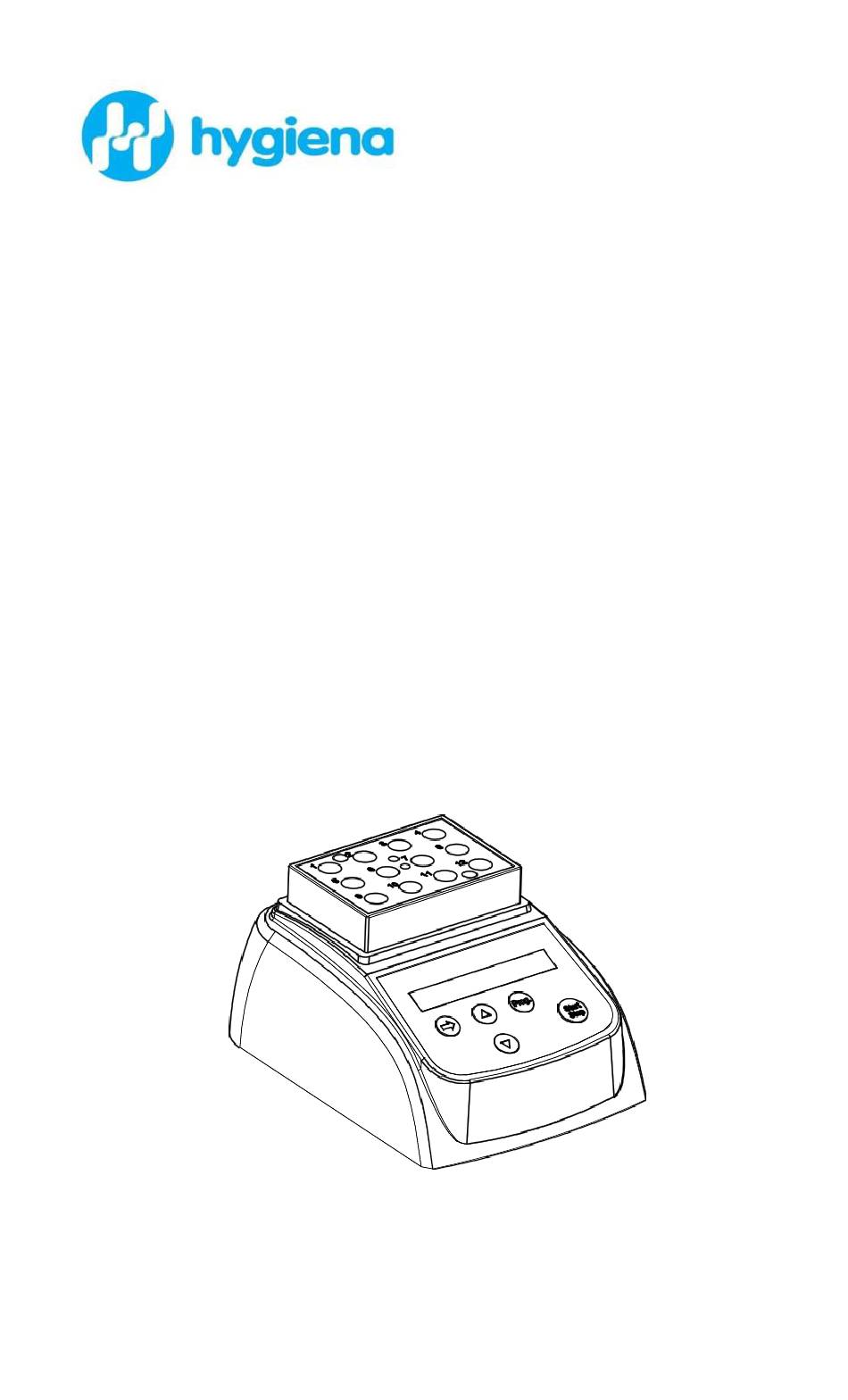

- Page 1 Operation Manual Small Format Digital Dry Block Incubator Catalog No. INCUBATOR Rev. C. April 2016...
- Page 2 Thank you for purchasing the Digital Dry Block incubator (catalog no. INCUBATOR) from Hygiena. Opening Check Please check the instrument when you first open the instrument packing case. If you find there is something wrong or missing with the instrument, contact Hygiena at www.Hygiena.com.
-
Page 3: Table Of Contents
Contents 1. Introduction ............... 1 1.1 What’s in the box? ............ 1 1.2 Incubator diagram ............2 1.3 Set up the incubator …..........3 2. Technical data ............. 4 3. Safety precautions ............5 4. Operation guide ............6 4.1 Control keys .............. -
Page 4: Introduction
1. Introduction This manual contains operational instructions, please read the entire manual thoroughly before using the incubator. 1.1 What is in the box? When you unpack the incubator, make sure you have the following parts: Item Type Incubator INCUBATOR Power adapter and cord... -
Page 5: Incubator Diagram
1.2 Incubator diagram Block Display Panel Power switch Power connector... -
Page 6: Set Up The Incubator
1.3 Set up the incubator 1.3.1 Place the incubator onto a level, horizontal surface. adapter 1.3.2 Connect the incubator to the power , connect the adapter to the power cord, and connect the power cord to a main power supply. -
Page 7: Technical Data
2.Technical data Model INCUBATOR Power supply DC12V Power 35 W RT+5 ℃ ~ 80 ℃ Temperature range 1sec ~ 999 sec or Timing range 1min ~ 999 min Accuracy of the ≤± 0.5℃ temperature Display accuracy 0.1℃ Heating time ≤12min... -
Page 8: Safety Precautions
ON the device, and push “O” to power OFF the device. The power connector is on the rear of the device, DC12V input, inside is “+”, outside is “-”. Power OFF when not in use. For extended non-use, remove the connector plug and cover incubator to shield from dust. -
Page 9: Operation Guide
4. Operation guide 4.1 Control keys: START/STOP ....start or stop the procedure Prog......select various programs ......for setting temperature and time ....... move the cursor 4.2 Create a new program Press the “Prog.” key to select various programs, from P1 to P9. For example, select P8, then press the key to move the cursor, press the ... -
Page 10: Select Minute Or Second For Timer
4.3 Select minute or second as unit of time for timer The timer unit of time can be set to either minute or second. To set the unit of time, press the key to enter setting interface, release, key for 2 seconds. P ress the to select min. or then hold the sec. -
Page 11: Temperature Calibration
4.4.3 When the second time reaches 0, the buzzer alarms and the display will read “PROGRAM END”. The second temperature will be maintained. Press any key to return, or press the START key to run again. 4.4.4 PROGRAM END Press any key P8 45.0 ℃... - Page 12 4.5.1 Calibration After the instrument is powered on, it will enter standby mode. Make sure both the ambient temperature in the room and the temperature displayed on the instrument are below 35 ℃. If the temperature is higher than 35 ℃, wait until the temperature is below 35 ℃.
- Page 13 “start” key to confirm. ℃ Adj 38.8 Press “Start” 4.5.5 At this point the incubator temperature will begin to rise automatically until it reaches 80.0℃, sign on the display will flicker. When the display temperature reaches 80.0℃, the signs ℃...
- Page 14 ”” 4.5.6 After 20 min, the thermometer temperature can be matched with the display ℃ Adj 79.0 temperature. Read the actual temperature of the thermometer (in this example) it is 79.0℃. Press the or key to amend the display value to 79.0, then press the “start”...
-
Page 15: Maintenance And Cleaning
5. Maintenance and cleaning Block wells should be cleaned with a cloth dampened with alcohol Power OFF the incubator when cleaning. Do not drop cleaning liquid directly into the well when cleaning. Do not use corrosive cleaning liquid. 6. Troubleshooting Instrument Errors... -
Page 16: Appendix
Appendix Wiring Diagram for INCUBATOR (For Reference Only) 100-240V～ Adapter 12V 4A Mains switch Heater Sensor Main board Display Panel Questions? Visit www.Hygiena.com for more information. 1-888-HYGIENA (Americas) +44 (0) 1923 818821 (International)
