Pre-installation Site Requirement
(Email the instrument specifications from BAX
100-240 VAC 10%, 50/60 Hz 1%, 15 Amp circuit; if this is uncertain, an Uninterruptible Power
Supply (UPS) will be needed – APC 2200 or equivalent recommended.
It is also recommended to have a surge-protected power strip with line filtering to protect the system
– APC SurgeArrest recommended.
3 outlets (monitor, computer, cycler/detector)
Benchtop able to support 54.5 kg (120 lbs)
Unpacking and Installation
1. Check the shipping containers for damage. If noted, take photos to document damage.
Open the box by prying out the black plastic pegs on each corner, remove grey corner caps,
and take off the sides of the box to remove the unit.
2. The instrument is heavy and may require two people to lift. Use a cart if needed to transport
into laboratory area. Place the BAX
the serial number matches the paperwork.
a. Leave 15 cm (6 in.) between the instrument and wall. Connect the instrument to the
CPU via USB cord and connect to outlet, set up CPU and monitor, and power on the
system. (More detailed instructions can be found in the BAX
i.
Note: There are four cables to connect:
•
Mouse (USB port)
•
Keyboard (USB port)
•
Communication cable (between the cycler and the computer, tan/white color)
•
Display cable between the monitor and the computer (DPI, HDMI, VGA)
www.hygiena.com

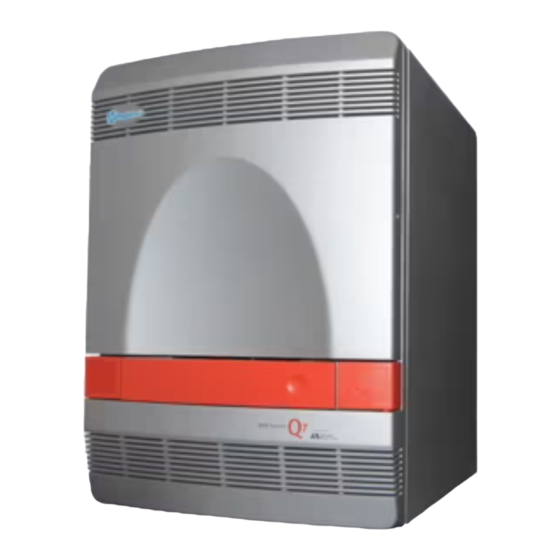

Guide to Installing a BAX
New Q7 & Swap
®
System Q7 on a stable bench/countertop. Confirm that
®
System Q7
®
User Guide prior to visit):
System Q7 User's Guide).
®
DIAG-TB-2157-REVA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hygiena BAX System Q7
Summary of Contents for Hygiena BAX System Q7
- Page 1 Note: There are four cables to connect: • Mouse (USB port) • Keyboard (USB port) • Communication cable (between the cycler and the computer, tan/white color) • Display cable between the monitor and the computer (DPI, HDMI, VGA) www.hygiena.com DIAG-TB-2157-REVA...
- Page 2 If it fails, it will give you an error. Record this or pull it from the Log File. Turn off the machine for 5 minutes and reboot, then run the test again. Complete the BAX Install Checklist and attach to the equipment record in CRM. www.hygiena.com DIAG-TB-2157-REVA...
- Page 3 Under the Diagnostics tab, select Calibration, select View Calibration Report. Note date of calibration. Under the Help tab, select About BAX System to obtain the current software version. ® Complete the BAX System Q7 Installation Checklist, save for your records and attach in an ® diagnostics.support@hygiena.com email to Hygiena at www.hygiena.com DIAG-TB-2157-REVA...
