Summary of Contents for Hygiena Scigiene DB625

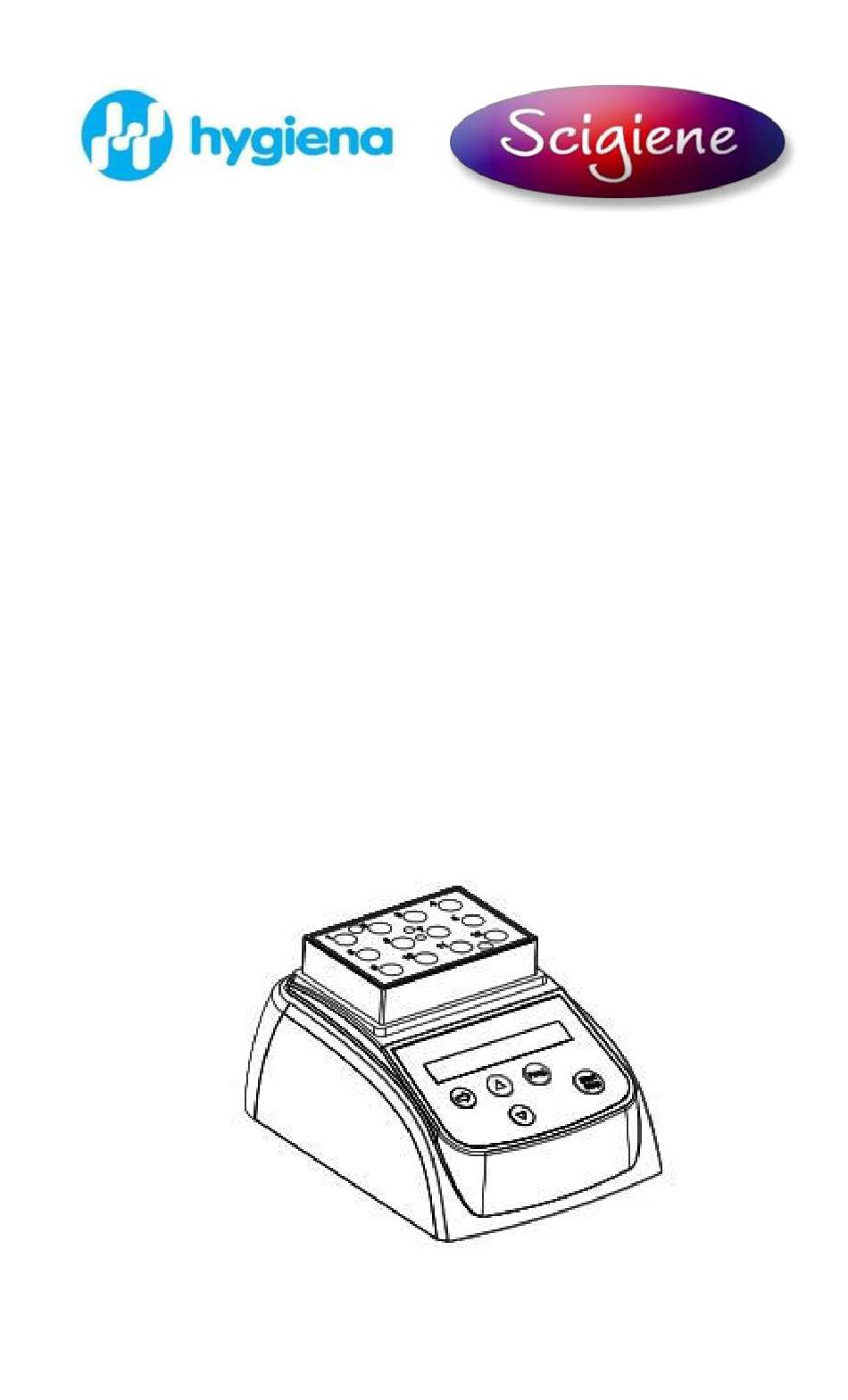

- Page 1 Operation Manual Small Format Digital Dry Block Incubator Part #: DB625...
- Page 2 Thank you for purchasing the Digital Dry Block incubator (catalog no. INCUBATOR) from Hygiena. Opening Check Please check the instrument when you first open the instrument packing case. If you find there is something wrong or missing with the instrument, contact Scigiene at www.scigiene.com.
-
Page 3: Table Of Contents
Contents 1. Introduction ..............1 1.1 What’s in the box?............. 1 1.2 Incubator diagram ............2 1.3 Set up the incubator ............3 2. Technical data ............... 4 3. Safety precautions ............5 4. Operation guide ............6 4.1 Control keys ..............6 4.2 Create a new program .......... -
Page 4: Introduction
1. Introduction This manual contains operational instructions, please read the entire manual thoroughly before using the incubator. 1.1 What is in the box? When you unpack the incubator, make sure you have the following parts: Item Type Incubator INCUBATOR Power adapter and cord 12V 4A Wrench Operation manual... -
Page 5: Incubator Diagram
1.2 Incubator diagram Block Display Panel Power switch connector... -
Page 6: Set Up The Incubator
1.3 Set up the incubator 1.3.1 Place the incubator onto a level, horizontal surface. adapter 1.3.2 Connect the incubator to the power , connect the adapter to the power cord, and connect the power cord to a main power supply. 100-240V～... -
Page 7: Technical Data
2. Technical data Model INCUBATOR Power supply DC12V Power 35 W RT+5℃ ~ 80℃ Temperature range 1sec ~ 999 sec or Timing range 1min ~ 999 min Accuracy of the ≤± 0.5℃ temperature 0.1℃ Display accuracy Heating time ≤12min (from 20 to 80 5℃... -
Page 8: Safety Precautions
If there is an issue with the instrument, contact Hygiena. The instrument should be operated in an environment with low temperature, little dust, no water and away from the sun or heat lamp. -
Page 9: Operation Guide
4. Operation guide 4.1 Control keys: START/STOP ....start or stop the procedure Prog......select various programs ...... for setting temperature and time ....... move the cursor 4.2 Create a new program Press the “Prog.” key to select various programs, from P1 to P9. For example, select P8, then press the key to move the ... -
Page 10: Select Minute Or Second For Timer
4.3 Select minute or second as unit of time for timer The timer unit of time can be set to either minute or second. To set the unit of time, press the key to enter setting interface, release, then hold ... -
Page 11: Temperature Calibration
4.4.3 When the second time reaches 0, the buzzer alarms and the display will read “PROGRAM END”. The second temperature will be maintained. Press any key to return, or press the START key to run again. 4.4.4 PROGRAM END Press any key P8 45.0 ℃... - Page 12 4.5.1 Calibration After the instrument is powered on, it will enter standby mode. Make sure both the ambient temperature in the room and the temperature displayed on the instrument are below 35 ℃. If the temperature is higher than 35 ℃, wait until the temperature is below 35 ℃.
- Page 13 4.5.3 After 20 min., Press the keys simultaneously, the display temperature (in this example) will show 20.5 ℃ , and then begin to rise to 40.0 ℃ automatically. During this time, the sign will flicker. When the display temperature reaches 40.0 ℃, the signs ADJ and will flicker together.
- Page 14 4.5.6 After 20 min, the thermometer temperature ” ” can be matched with the display ℃ temperature. Read the actual temperature 79.0 of the thermometer (in this example) it is 79.0℃. Press the key to amend the display value to 79.0, then press the “start”...
-
Page 15: Maintenance And Cleaning
No display connection. both sides. Power failure. Check the fuse Broken sensor “OPEN” in the or loose contact display with Contact Hygiena for of the module alarm service. “SHO” in the The sensor is display with Contact Hygiena for short alarm service. -
Page 16: Appendix
Appendix Wiring Diagram for INCUBATOR (For Reference Only) 240V Heater Sensor Main boar Display Panel Please contact us if you have questions.
