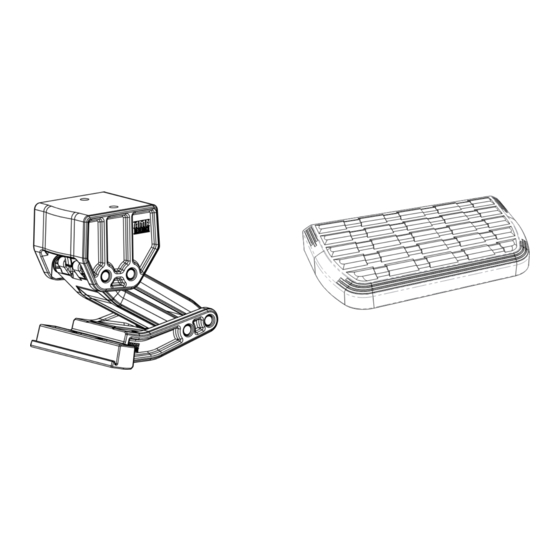

AMP Research BedStep AMP 75311-01A Manual

19-03783-90
20-03797-10
16-03907-90
Using a 16mm Socket with extension remove
the two body mount nuts and the bumper
bracket bolt. NOTE: Bolt may not be present if
aftermarket bumper is on vehicle.
1
Drop threaded plate into slot in frame. Slot is
located on both sides of the frame. The outer
slot is preffered but may not be accessable with
aftermarket bumpers or racks.
3
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST
Designed and manufactured by AMP Research
7,367,574; 7,380,807; 7,398,985; 7,413,204; 7,487,986. Other US and Worldwide patents pending. Made in USA © 2009 AMP Research
Three-year limited warranty. Professional installation is recommended.
www.amp-research.com
16-03908-90
. Patent Number 6,830,257; 6,641,158; 6,834,875; 6,938,909; 6,942,233; 7,007,961; 7,055,839; 7,163,221;
®
Jeep Wrangler JK
2007-2015
19-03341-90
19-02486-90
Using a 15mm wrench assemble steel bracket to
Linkage assembly. Torque bolts to 20 ft-lbs.
2
16mm
Set assembly into position and replace
hardware from step 1. A M10 bolt and washers
are supplied if bolt is not present. Do not tighten
4
/2
PART NUMbER:
AMP 75311-01A
Torque wrench
19-03563-90
13mm 15mm
11-03639-90
IM753 rev 02.24.5
16mm T25
15mm
15 &16mm
