STUART
Installation, Operation & Maintenance
Instructions
Please leave this instruction booklet with the owner as it contains
important warranty, maintenance and safety information
Read this manual carefully before commencing installation.
This manual covers the following products.

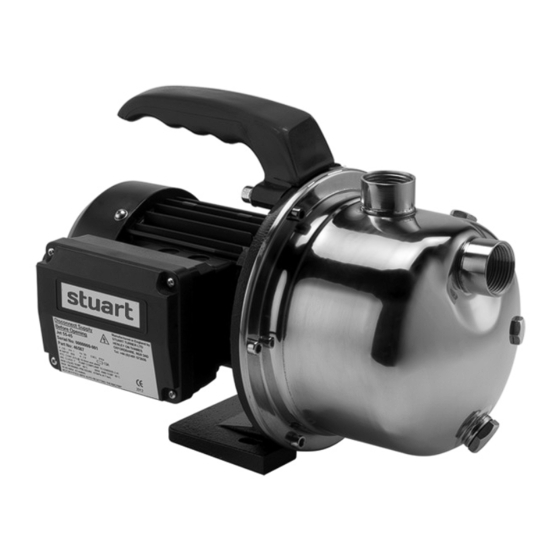

Jet 55–45
Pt. No. 46587
Jet 80–45
Pt. No. 46588
Advertisement
Table of Contents
Related Manuals for Stuart Turner Jet 55-45
Summary of Contents for Stuart Turner Jet 55-45
- Page 1 STUART Installation, Operation & Maintenance Instructions Please leave this instruction booklet with the owner as it contains important warranty, maintenance and safety information Read this manual carefully before commencing installation. This manual covers the following products. Jet 55–45 Jet 80–45 Pt.
-
Page 2: Table Of Contents
PRODUCT DESCRIPTION Electric motor driven, close coupled, single stage, end suction configuration and of centrifugal design with integral Jet injector. APPLICATION The Jet Pump range is designed to pump clean fresh water. The pumps can be used for applications such as water transfer and distribution, pressure boosting and irrigation. - Page 3 WARNINGS: This pump set must not be used for any other application without the written consent of Stuart Turner Limited and in particular, must not be connected directly to the mains water supply. This appliance can be used by children aged from ...
- Page 4 If the supply cord is to be changed or is damaged, it must be replaced with a special cord assembly available from Stuart Turner or one of their approved repairers. Please read installation details carefully as they are intended to ensure this product provides long, trouble free service.
-
Page 5: Checklist
CHECKLIST IMPORTANT: With the pump removed from its packaging check for any damage prior to installation. If any damage is found contact Stuart Turner Ltd within 24 hours of receipt. Fig. 1 Item Description Qty Item Description Pump Handle screws 19 mm x G 1 Hose union 5 mm Allen key Handle... -
Page 6: Important Facts - Read Before Commencing Installation
1 IMPORTANT FACTS: READ BEFORE COMMENCING PUMP INSTALLATION A Water storage capacity. 1.11 The cold water storage capacity must be sufficient to meet the flow rates required by the pumped equipment and any other water using fittings and appliances, which may be operated simultaneously. 1.12 Ensure the pump is primed as described in the priming section before starting, damage to the shaft seal will result otherwise. -
Page 7: Location
2 LOCATION – GENERAL Access: For emergencies and maintenance the pump must be 2.11 easily accessible. 2.12 Protection: The pump must be located in a dry position, frost free and protected from freezing, particularly when installed in a loft (not recommended). 2.13 Ventilation: Ensure an adequate air flow to cool the pump. - Page 8 2 LOCATION – PUMP MOUNTED BELOW WATER SOURCE Fig. 2 2.24 Water supply: Must be made via a tank connector offering a dedicated supply direct to the pump. Cont ... - 8 –...
- Page 9 LOCATION – PUMP MOUNTED ABOVE WATER SOURCE (SUCTION LIFT INSTALLATION) Ensure inlet area around strainer is free from debris Fig. 3 2.25 Self Priming: Jet 55–45 and 80–45 pumps are capable of self priming the suction hose assembly, providing a footvalve and strainer (not supplied) is always used for this type of installation.
-
Page 10: Electrical Installation
3 ELECTRICAL INSTALLATION / EARTHING 3.11 Regulations: The electrical installation must be carried out in accordance with the current national electrical regulations and installed by a qualified person. 3.12 Safety: In the interests of electrical safety a 30 mA residual current device (R.C.D. - Page 11 3.18 Wiring Diagram: The supply cord and internal wiring within the terminal box are routed and secured to ensure compliance with the electrical standard EN 60335–1. It is essential that any disturbance of this internal wiring is avoided and the factory routing and securing of all internal wiring is always maintained.
-
Page 12: Commissioning
4 COMMISSIONING 4.11 System Flushing: The pipework system should be flushed out prior to the pump being connected to ensure any contaminants/ chemical residues and foreign bodies are removed from elsewhere in the system. 4.12 Water Supply: Always ensure that water storage capacity is adequate to meet the demand. - Page 13 Plug Jet 55–45 and Jet 80–45 Fig. 5 4.17 For further technical support: Phone the Stuart Turner TechAssist team on +44 (0) 800 31 969 80. Our staff are trained to help and advise you over the phone. Cont ...
-
Page 14: Maintenance
5 MAINTENANCE 5.11 No routine maintenance is required but provision should be made for easy access to the pump to allow for repairs due to normal wear and tear. 5.12 Disconnect electrical supply before working on pump. 5.13 Turn off water supplies to the pump and release pressure by opening outlets before attempting maintenance. -
Page 15: Technical Specification
Weight – including fittings 6.9 Kg 9.1 Kg Stuart Turner reserve the right to amend the specification in line with its policy of continuous development of its products. *Note: Max working pressure is the maximum pressure that can be applied to the pump internal casing under any installation conditions. -
Page 16: Trouble Shooting
Check fuse (see fuse section). Check circuit breaker is set. Check wiring connections. Pump jammed. If motor ‘Buzzes’ switch off power and contact Stuart Turner. Integral motor Wait for thermotrip to auto-reset and thermotrip activated. check that duty point and run time is within specification (see technical specification). -
Page 17: Warranty
Proof of purchase should accompany the returned unit to avoid delay in investigation and dealing with your claim. You should obtain appropriate insurance cover for any loss or damage which is not covered by Stuart Turner Ltd in this provision. Please record here for your records. TYPE NO. - Page 18 NOTES - 18 –...
- Page 19 NOTES - 19 –...
- Page 20 Issue No. 4219/3–01 Pt. No. 19741...
