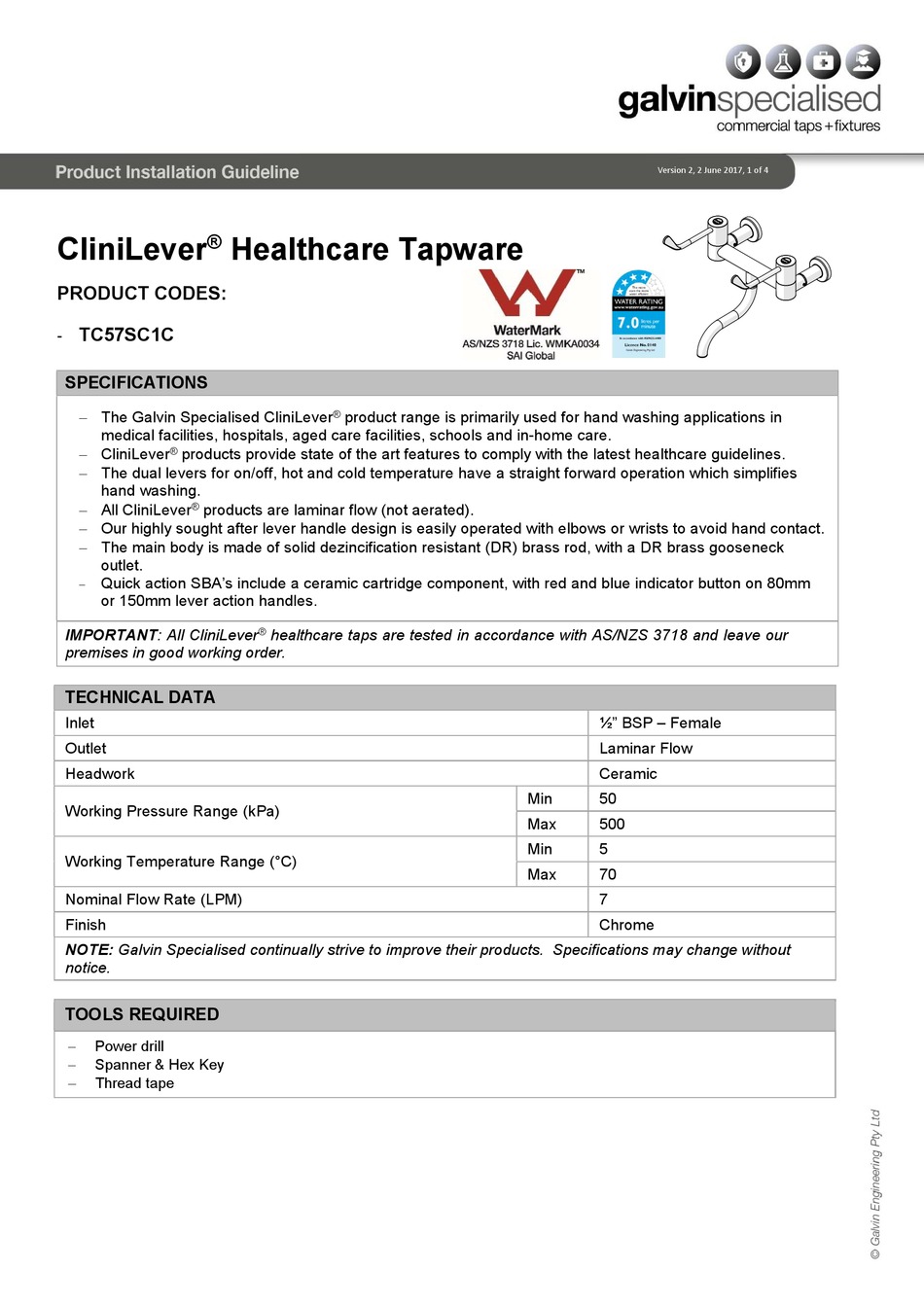

CliniLever
Healthcare Tapware
PRODUCT CODES:
TC57SC1C
-
SPECIFICATIONS
The Galvin Specialised CliniLever
medical facilities, hospitals, aged care facilities, schools and in-home care.
CliniLever
®
products provide state of the art features to comply with the latest healthcare guidelines.
The dual levers for on/off, hot and cold temperature have a straight forward operation which simplifies
hand washing.
All CliniLever
®
products are laminar flow (not aerated).
Our highly sought after lever handle design is easily operated with elbows or wrists to avoid hand contact.
The main body is made of solid dezincification resistant (DR) brass rod, with a DR brass gooseneck
outlet.
Quick action SBA's include a ceramic cartridge component, with red and blue indicator button on 80mm
or 150mm lever action handles.
IMPORTANT: All CliniLever
premises in good working order.
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Specialised continually strive to improve their products. Specifications may change without
notice.
TOOLS REQUIRED
Power drill
Spanner & Hex Key
Thread tape
®
product range is primarily used for hand washing applications in
®
healthcare taps are tested in accordance with AS/NZS 3718 and leave our
Version 2, 2 June 2017, 1 of 4
½" BSP – Female
Laminar Flow
Ceramic
Min
50
Max
500
Min
5
Max
70
7
Chrome
