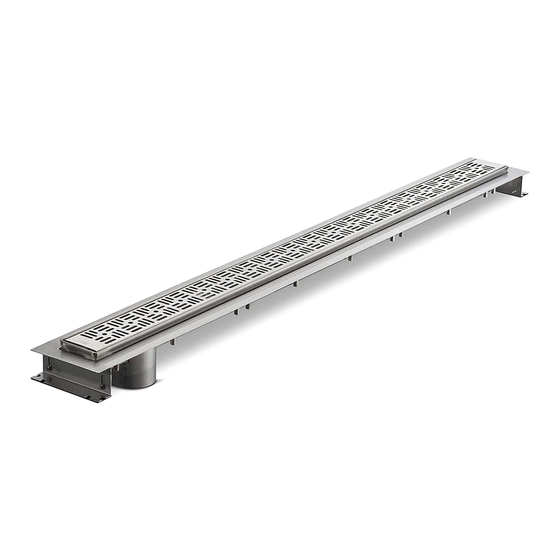

Linear shower drain connector

Advertisement

Quick Links

ZS880
®

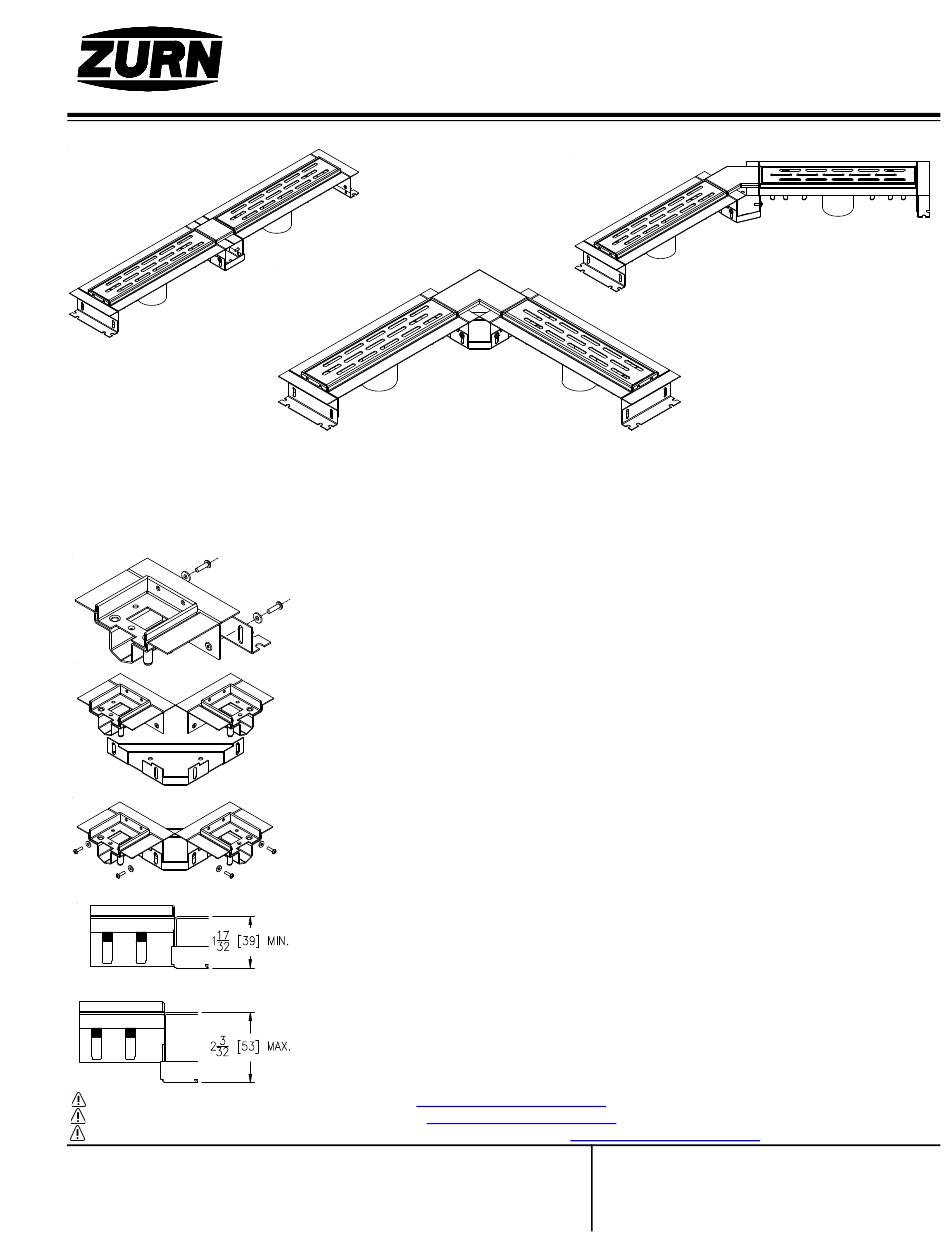

LINEAR SHOWER DRAIN CONNECTOR INSTALLATION INSTRUCTIONS
Dimensional Data (inches and [ mm ]) are Subject to Manufacturing Tolerances and Change Without Notice
ZS880-CS
Installing and Adjusting the Anchoring Legs
Each shower drain is provided standard with two preassembled anchoring legs, one on each end of the channel.
The connecting anchoring leg replaces two of the preassembled anchoring legs where the channels are set to connect.
WARNING: Cancer and Reproductive Harm -
ADVERTENCIA: Cáncer y daño reproductivo -
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction -
Zurn Industries, LLC
|
Light Commercial Plumbing Products
1801 Pittsburgh Avenue, Erie, PA U.S.A. 16502 · Ph. 855-663-9876, Fax 814-454-7929
In Canada
|
Zurn Industries Limited
3544 Nashua Drive, Mississauga, Ontario L4V 1L2 · Ph. 905-405-8272, Fax 905-405-1292
www.zurn.com
ZS880-C90
STEP 1: Remove the
preassembled anchoring legs
at the ends of channels that
are being connected.
STEP 2: Install the connecting
anchoring leg.
STEP 3: Install the washers
and screws into the channel
end caps.
STEP 4: Adjust the height of
the anchoring leg.
STEP 5: Tighten screws to
secure the leg in place.
www.P65Warnings.ca.gov
www.P65Warnings.ca.gov
The anchor leg that is removed will no longer be
needed.
The anchoring leg is to be installed on the inside of
both connecting channel end caps.
Loosley install the screws, allowing the anchoring
leg to slide up and down freely against the channel
end caps. Note: The screws are installed from
underneath the shower channel.
Set the location of the anchor leg to correspond
with the required subfloor thickness height mea-
suring from the bottom underside of the anchor leg
to the top surface of the membrane flange on the
channel. Each slotted anchor leg has a vertical
adjustment range of 9/16 [14].
www.P65Warnings.ca.gov
Rev.
A
Date:
4/24/2018
C.N. No.
139950
Form #
FT1015
ZS880-C45
Sheet 1 of 2
