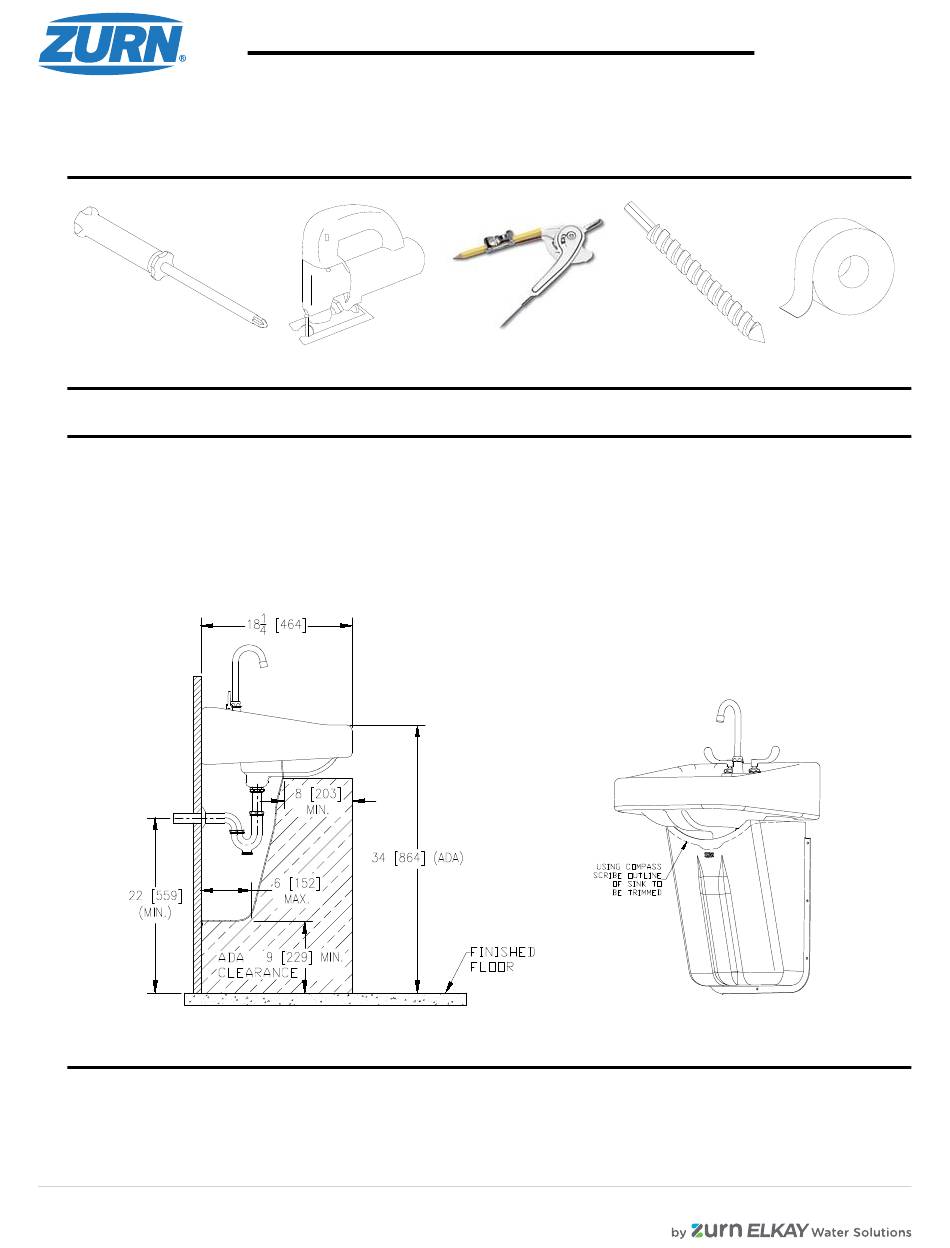

ZURN Z6900-VG Manual

TOOLS NEEDED
PHILLIPS
SCREWDRIVER
*
INSTALLATION INSTRUCTIONS
1. PLACE THE LAVATORY SHIELD UNDER SINK FLUSH WITH WALL AS HIGH AS POSSIBLE AND TEMPORARIL FIX TO
WALL WITH TAPE (DUCT, MASKING, PACKAGING, ETC.)
2. USING COMPASS PROVIDED CAREFULLY SCRIBE THE OUTLINE OF THE UNDERSIDE OF THE SINK ONTO THE
LAVATORY SHIELD KEEPING THE COMPASS VERTICAL AT ALL TIMES.
3. REMOVE LAVATORY SHIELD FROM WALL AND CUT OUT THE SCRIBED LINE USING JIG SAW.
4. ONCE PROPER FIT OF SHIELD TO UNDERSIDE OF SINK HAS BEEN ACCOMPLISHED PLACE SHIELD FLUSH WITH
WALL AND SINK THEN MARK HOLES FOR FASTENING.
5. DRILL 3/16" HOLES FOR SUPPLIED ANCHORS AND SECURE SHIELD INTO PLACE.
REPLACEMENT PARTS
MOUNTING HARDWARE ASSEMBLY (G68021) INCLUDING:
• #6x1" OVAL HEAD SCREWS
• 3/16" DRY WALL ANCHORS
• COMPASS
Rev. C | Date: 11/28/22 | C.N. No. 144945 | Prod./Dwg. No. CF1629
Patent zurn.com/patents
US 1.855.ONE.ZURN CANADA 1.877.892.5216
ZURN.COM
AQUASPEC FAUCETS
MODEL - Z6900-VG
VANDAL-GUARD LAVATORY SHIELD
JIG SAW
7X
7X
1X
COMPASS SUPPLIED 3/16" DRILL BIT TAPE
