Wiring
Having correctly identified the wiring from your existing light fitting, pull the mains wire through the hole and connect to the
quick fit connection block inside the product in the following way:
PUSH DOWN
SUPPLY
INSERT CABLE
SWITCHED LIVE
EARTH (GREEN/YELLOW)
NEUTRAL
Technical data
Supply
220-240 V~, 50 Hz
Voltage:
Bulb
6W LED module (SMD) CCT, 3000/4000/6000K
Type:
Non-replaceable light source
Conformity with all relevant UKCA Directive requirements.
Conformity with all relevant EC Directive requirements.
This product is Class 1, must be connected to earth.
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or local store for recycling advice.
This product is rated at IP44.
44
IP
Care and Safety
We recommend cleaning with a soft dry cloth. Do not use solvents or abrasive cleaners as these could damage the finish.
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
This LED's are protected by a PC shade. The shade part must be replaced immediately should it
become cracked or damaged. This fitting must not be used without the PC shade in place.
Replace Cracked Shade
For further information, please visit https://www.lighting-info.co.uk/73716
V4 17/03/2023
UK Manufacturer: BH17 7BY
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
Check that...
LIGHT FITTING
You have correctly identified the wires
The connections are tight
BROWN (L)
No loose strands have been left out of
GREEN/YELLOW
the connection block.
BLUE (N)
Reseal the approved outdoor rated
external terminal block
This product contains a light source of energy efficiency class D.
Non-replaceable control gear
Instruction manual

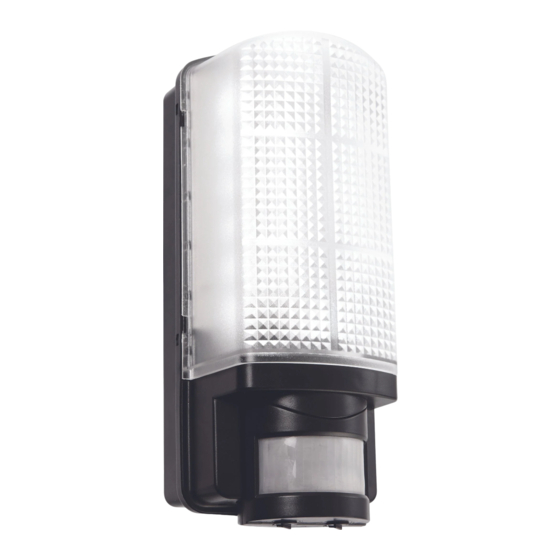

Motion LED PIR 1LT Wall
73716, 73717
