3.Keep the cutting device (1) sharp. Have a worn or damaged cutting device replaced with a
new one of the same type by a qualified specialist.

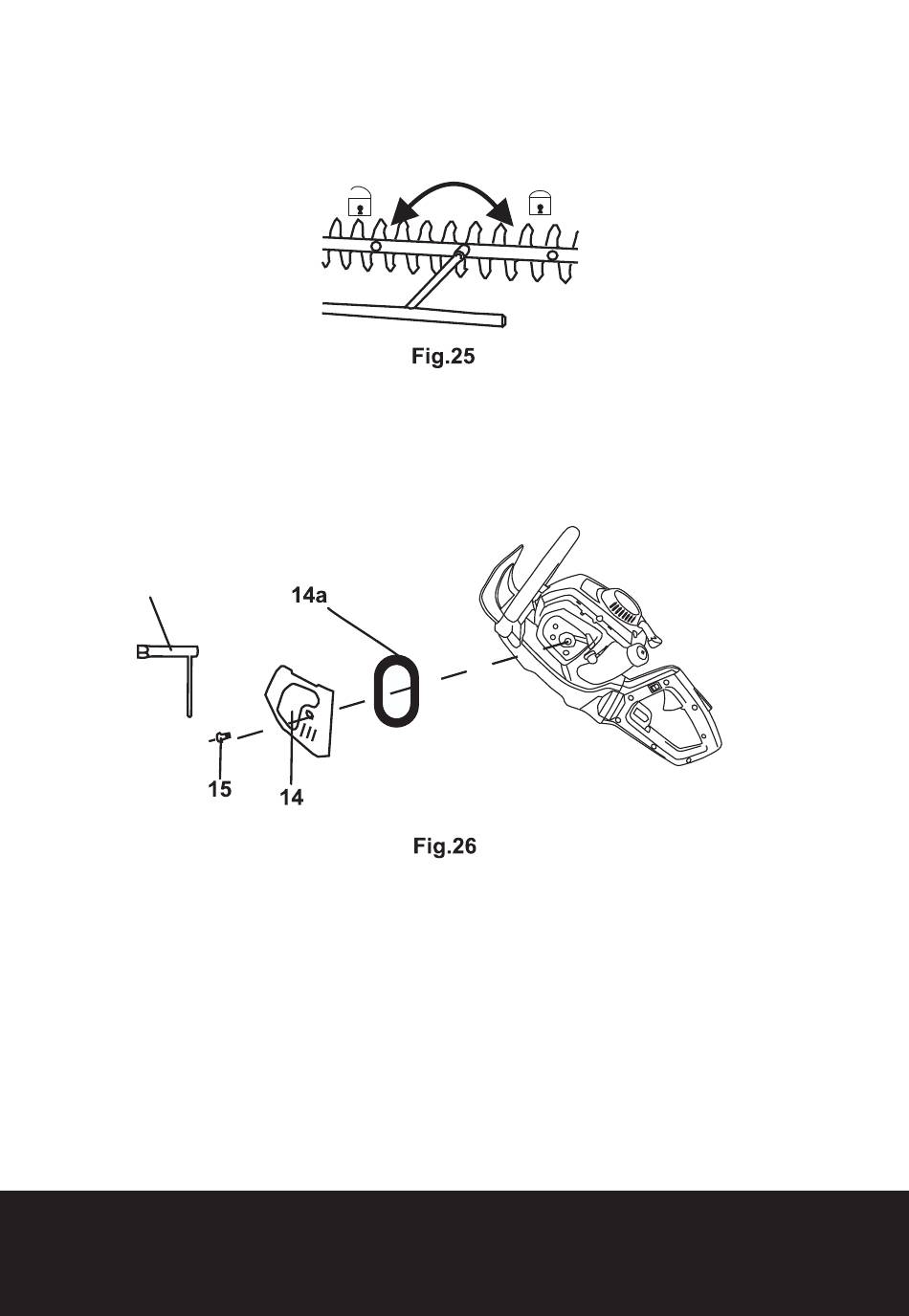

4.Tighten loose nuts on the cutting device (1) with a proper wrench with 5 N.m min, 7 N.m max.
to ensure safe operation of your product (Fig. 25).

AIR FILTER

1.Inspect the air filter (15a) regularly. Replace it with a new one if necessary.
2.Open the air filter case by loosening the fixing screw (15) with the multi tool (24).
3.Remove the screw, cover (14) and take the filter (14a) out (Fig. 26).
24
4.Tap the filter on a stable surface to remove dust. Use compressed air (max. 3 bar) to remove
stubborn dust.
5.Apply a small amount of air filter oil on the filter to increase the performance of the filter.
Wring out surplus oil and put the filter into the case.
6.Put the air filter cover (14) back in place and fix it with the screw (15).
