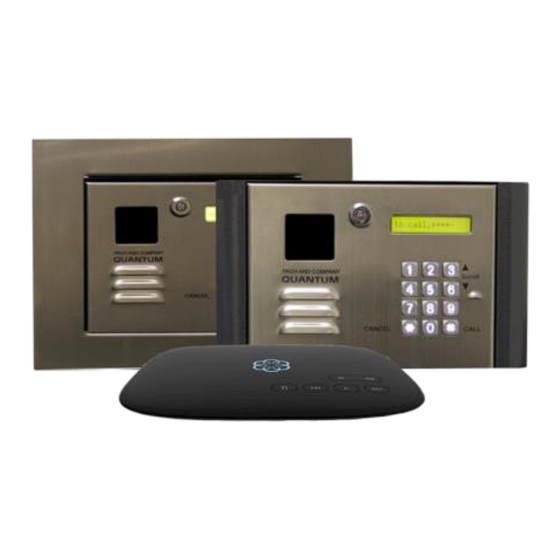

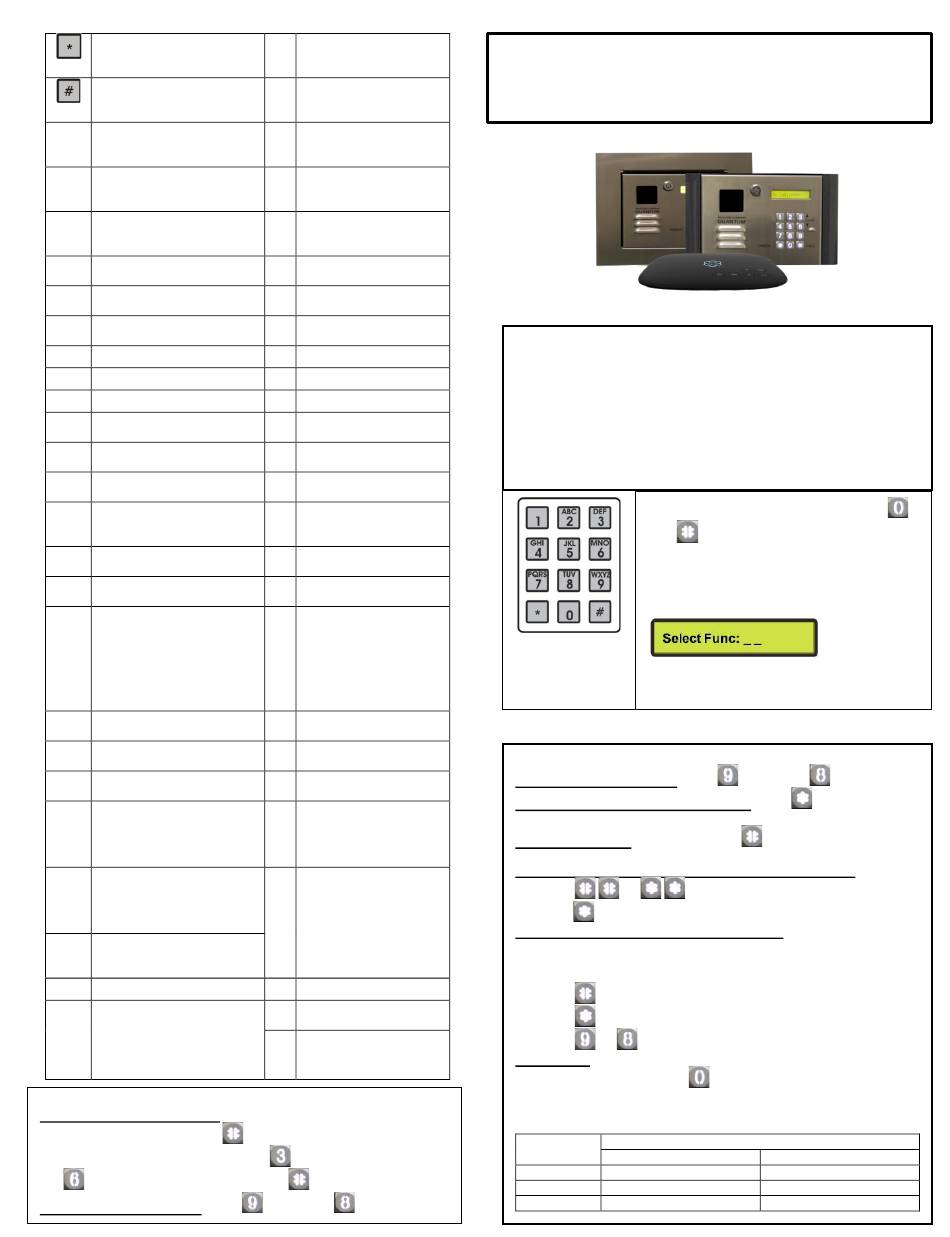

PACH & COMPANY QUANTUM PAC-Q5VOIPFF Quick Manual

Exit program, cancel call
Save program
00 Change master code (0000
is default)
01 Add new forwarding
tenant's directory
Edit existing tenant's
02
directory
Delete existing tenant's
03
directory
04 Clear all forwarding
tenant's directory
05 Call Forwarding
06 New access code
07 Delete access code
08 Clear all access code
09 Access code digit (4-8
digit). Default is 4-digit
10 Add new card
11 Delete card
12 Clear all card
13 Set time
14 Set date
15 Initializing event recording
16 AUS= auto unlock schedule
(0-9 schedule)
17 TMZ= time zone. 20 TMZ,
00-20.
18 HLD= holiday zone. 20
HLD, 1-20
20 AUXIN1
0= disable (default)
1= enable control by relay 1
open interval
2= relay 1 control by AUXIN1
21 AUXIN2
0= disable (default)
1= enable control by relay 2
open interval
2= relay 2 control by AUXIN2
22 Do not disturb
0= disable (default), 1=
enable
23 Lock-out Count
24 Alarm
0= disable
1= local beep for 60 seconds
2= disable system for 60
seconds with no beep
3= call directory (0-9)
OPERATION
TO CALL FROM THE SYSTEM
1. INTERCOM MODE PRESS
2. CALL FORWARDING MODE, press
to scroll name from Z-A then press
Opening the door remotely press
25 Keypad beep
0= disable (default)
1=enable
26 Door beep
0= disable
1= enable (default)
27 Talk time (060-240
second). Default=60
second
28 Unlock relay1 time
(12-99 second).
Default= 12 second
29 Unlock relay2 time
(12-99 second).
Default= 12 second
30 Call Forwarding
0= disable 1= enable
31 Call forwarding time
05-60 second
32 Forwarding directory
0-9
33 Temporary code
34 Special code
35 Temporary card
36 Special card
37 Initiate premise call
0=**, 1=## (default)
38 System acknowledge
(0-9). Default= 3
39 Remote access
0= disable
1=enable (default)
40 DTMF relay 1 (1-9).
Default=9
41 DTMF relay 2 (1-9).
Default=8
42 Relay 2 Mode
1= door control (default)
2= relay 2 trigger
simultaneously as relay 1
3= enable if function code
24 is enable
4= turn relay 2 on and off
On=7, Off=6
43 DND: do not disturb
time zone (0-9)
44 Disable Time zone relay
1, 2 or both
45 Relay 1 and 2 unlock
timer
46 Firmware version
48 PBX enable. Default=
disable
49 Edit Access code
50 Erase the memory to
factory default
51 Welcome screen
to scroll name from A-Z or
to call name selected.
(relay 1) or (relay 2)
QUANTUM Q5VOIP SERIES
PACH AND COMPANY INC.
• Missing Parts, contact Pach and Company 1-888-678-
7224
• Defective system under manufacturer warranty,
call 1-888-678-7224 for advance replacement
• 24 Months warranty for complete system
• 6 Months warranty for Printed Circuit Board
• Manuals, management software, catalog are on CD or
download at www.pach-co.com
Log on to programming: Press
and
the welcome message will stop
scrolling (repeat if screen still scrolls)
enter 4-digit "MASTER CODE" (0000
is default), the screen will show:
Select the "Function Code" from the
table
OPERATION
Opening the door remotely press
Opening the door with the access code press
will stop scrolling) then press a valid 4-digit access code.
Extending talk time tenant must press
time out warning beep.
Calling into the system from premise location (Intercom)
1. Press or
press to communicate with the person
Calling into the system from remote location:
Enable function code 39
1. Call the system phone number, hear one beep if the system
answering the call.
2. Press then 4-digit master code, hear one short beep
3. Press to establish two way communication
4. Press or to release the door.
Call waiting: function code 38 must be set 1-9 and function code 39
can be set either 1 or 0, press
calls
See Function Code 37
Relay 1
Open cycle ##9/**9
Open hold ##8/**8
Close ##7/**7
QUICK GUIDE
simultaneously then release,
(relay 1) or (relay 2)
(display screen
from the phone after the
depending on function code 37, then
on your phone to transfer between
Premise
Relay 2
##5/**9
##4/**4
##3/**3
