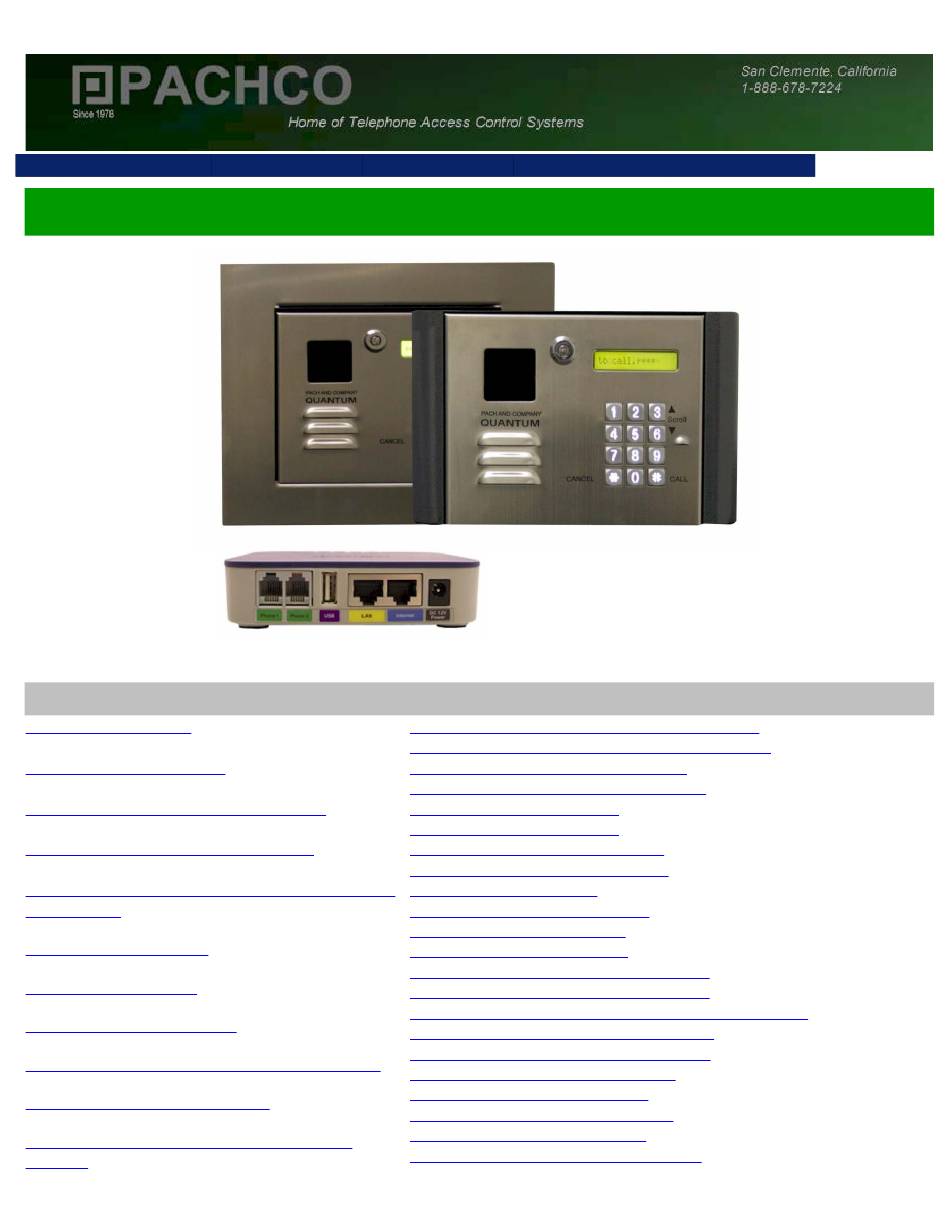

Page 1 Table of Contents Products Sales Support Company UPS Tracking QUANTUM Q5VOIP/Q5VOIPFF TABLE OF CONTENTS Limitation of Liability Function Code 15: Initializing Event Recording Function Code 16: Auto Unlock Schedule (AUS) Products Limited Warranty Function Code 17: Time Zone (TMZ) Function Code 18: Holiday Zone (HLD)
Page 2 Table of Contents Function Code 38: System Acknowledge Function Code 39: Disable and Enable Remote Access CHAPTER 4 PROGRAMMING Function Code 40: DTMF Relay 1 Function Code 41: DTMF Relay 2 Log-in to Programming Mode Function Code 42: Relay 2 Mode Function Code 00: Change Master Code Function Code 43: Do Not Disturb Zone Function Code 01: Add New Tenant Directory...
Page 3 Table of Contents must be return to Pach and Company within 15 days after receiving the advanced replacement otherwise you will be billed the full amount. Parts: Two (2) year, does not cover parts needed to re-install the product by the installer Labor: Two (2) year, does not cover installation labor Cards, Fobs and Transmitters warranted for 90 days LIMITED WARRANTY LIMITS AND EXCLUSIONS...
Page 4 Pach & Company thanks and congratulates you on the purchase of your Quantum Q5VOIP/Q5VOIPFF Telephone Entry Access Control Systems. The manual is designed to guide you through the proper programming and use of the Quantum Q5VOIP/Q5VOIPFF. It is important for you to read and follow the manual completely.
Page 5 Table of Contents CHAPTER 2 Installation and Wiring Diagram Follow the wiring diagram carefully. Improper installation will void the warranty. Please call technical support in case you have any difficulties during the installation. Click the selection below for different applications General Wiring Diagram Power Wiring Diagram Door Strike Wiring Diagram...
Page 6 Table of Contents 1. TEL IN 1 and TEL IN 2 Connect as on the diagram above (CAT.5 Two Conductor Wires) PHONE CO (TR) Connect to second QVOIP 2. RELAY 1 and RELAY 2 DRY CONTACT Use separate power for the door strikes. (18 Gauge Two Conductor Wires) 3.
Page 7 Table of Contents 5. DOORS SENSOR DOORS1 and GND, DOORS2 and GND. Must have door sensor switch. (20 Gauge Two conductors Wires) 6. RS485 PORT Communication for slave units up to 8 (USCR, UCRM or USKP). 18 Gauge Two conductors shielded wires. 7.
Page 8 Table of Contents Figure 2.2 Power Wiring Diagram 2.3 Door Strike Wiring Diagram file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202012/online_manual/q5voip_manual.htm[3/17/2016 12:29:03 PM]...
Page 9 Table of Contents Figure 2.3 Door Strike Wiring Diagram 2.4 Input Device and Door Sensor Wiring Diagram file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202012/online_manual/q5voip_manual.htm[3/17/2016 12:29:03 PM]...
Page 10 Table of Contents Figure 2.4 Input Device and Door Sensor Wiring Diagram 2.5 Satellite System Wiring Diagram Figure 2.5 Satellite System Wiring Diagram Assuming all wiring has been done properly according to chapter 2 then turn the system s power on as shown on figure 2.1 number 10.
Page 11 Table of Contents The Q5VOIP/Q5VOIPFF buttons are lighted. Below are the correlation table for each key. = 1 _ . , ? : ; ! @ + - * / = # < > A B C a b c 2 D E F d e f 3 G H I g h i 4 J K L j k l 5...
Page 12 Table of Contents Enter directory number 0-9 (directory is in single digit and cannot be changed) then # Chapter 3 for keypad layout Enter name up to 16 characters (name can be a person real name, apartment number, etc., directory will be sorted in alphabetical order) then press # Enter the tenant phone number up to 16-digit...
Page 13 Table of Contents Chapter 3 for keypad layout Enter the a new tenant phone number up to 16-digit then press # or press without entering anything to keep the existing number. Return to step 3 to edit another tenant directory Function Code 03 - Delete Tenant Directory Log-in to programming Enter 03 then #...
Page 14 Table of Contents Function Code 05 - Call Forwarding Use function code 30 to enable Function Code 06 - Add New Access Code An access code is a keyless entry code to unlock the door. An access code can be programmed in 4, 5 ,6,7, or 8 digits, see function code 09 to change the access code s number of digits.
Page 15 Table of Contents 0= no more additional time zone then press # and return to step 3 to program another access code 1= add additional time zone then press # and return to step 6 * = exit programming Function Code 07 - Delete Access Code Log-in to programming Enter 07 then # Enter code to be deleted then press #...
Page 16 3. Enter 4, 5, 6, 7 or 8 (default setting is 4 digit) then press # Function Code 10 - Add New Card or Transmitter A maximum of 100 cards or transmitters can be programmed into the Quantum Q5VOIP/Q5VOIPFF. Log-in to programming...
Page 17 Table of Contents Enter satellite system ID 0-7 (enter 0 if no satellite connected to the Q5VOIP/Q5VOIPFF) then press # Enter 0= no more additional time zone then press # and return to step 3 to add program another card 1= add additional time zone then press # and return to step 6 * = exit programming...
Page 18 Table of Contents * to cancel Function Code 13 - Set Time Log-in to programming Enter 13 then # Enter HH= in military time MM= minute the press # Function Code 14 - Set Date Log-in to programming Enter 14 then # Enter YYYY/MM/DD YYYY= year MM= Month...
Page 19 Table of Contents The events are stored in the RAM buffer. The Event RAM buffer can hold 2000 events. The Events are stored as first in first out (FIFO). This function code will clear the event buffer. Log-in to programming Enter 15 then # Enter 1 then # to clear event buffer * to cancel deletion...
Page 20 Table of Contents Enter close time in military then press # Enter 0= Sunday, 1= Monday, 2= Tuesday, 3= Wednesday, 4= Thursday, 5= Friday, 6= Saturday then press # 8. Enter 1= Relay 1 (door 1) 2= Relay 2 (door 2) 3= Both relay 1 and 2 then press # Return to step 3 to enter another AUS...
Page 21 Table of Contents 1= add new time zone then press # Enter start time in military then press # Enter end time in military then press # Enter 0= Sunday, 1= Monday, 2= Tuesday, 3= Wednesday, 4= Thursday, 5= Friday, 6= Saturday then press # Return to step 3 to program more time zone Function Code 18 - Holiday Zone (HLD)
Page 22 Table of Contents 5. Enter month and date (i.e. 0704 for U.S.A Independence Day) then press # Return to step 3 to add more holiday zones. Function Code 20 - AUXIN1 AUXIN1 is used for input device such as postal lock, infrared sensor, exit button, etc..AUXIN1 is associated with relay 1 Log-in to programming Enter 20 then # 3.
Page 23 Table of Contents 3. Entert 0= disable, 1= enable then press # Function Code 23 Lock-out Count The system will be disabled in about 60 seconds after pressing invalid access code or swiping invalid card as specified on the Lock-out Count. Log-in to programming 2.
Page 24 Table of Contents 3. Enter 0= off, 1= On (default) then press # Function Code 26 Door Beep Turn the door beep On or Off Log-in to programming 2. Enter 26 then # 3. Enter 0= off, 1= On (default) then press # Function Code 27 Talk Time The amount of time the visitor can talk to the tenant.
Page 25 Table of Contents Function Code 29 Unlock Relay 2 Time The amount of time for relay 2 to trigger. Log-in to programming Enter 29 then # 3. Enter 01-99 (second) then press # Function Code 30 Enable Automatic Call Forwarding Log-in to programming 2.
Page 26 Table of Contents Log-in to programming 2. Enter 32 then # 3. Enter 0-9 then press # Function Code 33 Temporary Code The code will be expired after being used a certain amount of times specified (1-10 times) in the programming, Up to 10 temporary codes can be programmed.
Page 27 Table of Contents 8. Enter time zone set 1-3 then press # 9. Enter 00 hours) - 20 see function code 17 then press # 10. Enter Sat id 0-7 then press # (enter 0 if no satellite connected to the Q5VOIP/Q5VOIPFF) Enter 0= no more additional time zone then press # and return to...
Page 28 Table of Contents Chapter 3 for keypad layout 6. Enter name then press # 7. Enter 1= relay 1(door 1), 2= relay 2 (door 2) or 3= both relay then press # 8. Enter time zone 1-3 then press # 9.
Page 29 Table of Contents 3. Enter 0= delete 1= add then press # 4. Enter card 01-10 then press # 5. Present the card or fob in front of the black window, the system will register the card or fob 8-digit number printed then press # Chapter 3 for keypad layout...
Page 30 Table of Contents The card can be use to unlock hold (open hold) and use same code again to lock (close) door or gate. Up to 10 special cards can be programmed. Log-in to programming Enter 36 then # 3. Enter 0= delete 1= add then press # 4.
Page 31 Table of Contents 11. Enter 0= no more additional time zone then press # and return to step 3 to program another temporary code 1= add additional time zone then press # and return to step 8 * = exit programming Function Code 37 Initiate Premise Call Call into the system from the premise (intercom mode).
Page 32 Table of Contents 2. Enter 39 then # 3. Press 0= disable remote access 1= enable remote access (default) then press # Function Code 40 DTMF Relay 1 By default the DTMF remote opening relay 1 (door 1) key number is set to 9 means pressing 9 will remotely trigger relay 1 (door 1).
Page 33 Table of Contents function code 24), 4= turn relay 2 on/off remotely (DTMF key7/6) Log-in to programming 2. Enter 42 then # 3. Enter 1= door control, 2=trigger simultaneously as relay 1, 3= alarm mode (see function code 24), 4= turn relay 2 on/off remotely (DTMF key 7/6), then press # Function Code 43 Do Not Disturb Time Zone If you do not want to be disturbed from someone calling you from the system during certain hours of the days, you can...
Page 34 Table of Contents Return to step 3 to program another time zone Function Code 44 Disable Time Zone Relay The system's relay can be disabled during certain time but the system is still in full operation. Maximum 10 disable time zones.
Page 35 Table of Contents Function Code 45 Relay 1 and 2 Unlock Timer Relay 1 and 2 can be unlock using count down timer 01-98 hours or 00=lock or 99= unlimited unlock hold. Log-in to programming 2. Enter 45 then # 3.
Page 36 Table of Contents 4. Enter the number to access dial tone to dial an outside line, generally 9 is the default number for most PBX system, then press # 5. Select delay time for the PBX system to access dial tone, generally 2-3 second delay is plenty of time, then press # Function Code 49 Edit Existing Access Code, Temporary Code and Special Code Log-in to programming 2.
Page 37 5.4 Opening Door Using Card, Temporary Card, and Special Card The Quantum Q5VOIP/Q5VOIPFF has built-in card reader. The door can be access using UFOB, UCLAM or UISO. Card Standard Operation is used to open the door and door will be closed automatically, see function code 10 file:///C|/PACH%20&%20COMPANY/PACH-CO.COM/PACH-CO.COM%202012/online_manual/q5voip_manual.htm[3/17/2016 12:29:03 PM]...
Page 38 5.5 Opening Door Using Transmitter, Temporary Code Transmitter, and Special Code Transmitter The Quantum Q5VOIP/Q5VOIPFF has built-in Radio Frequency (RF) Receiver. The transmitter will work in 300 feet radius open air with the transmitter antenna fully extended. The distance may vary depending on the environment.
Page 39 Table of Contents 5.6 Extending Talk Time The talk time timer is set on function code 27. The warning beep will be heard one minute before the talk time is expired. It can be extended more another full cycle by pressing # 5.7 Call the System from Premise Location The system must be installed in Intercom and Call Forwarding Mode Wiring Diagram...
