USER MANUAL
KLM-IF70-3D3M

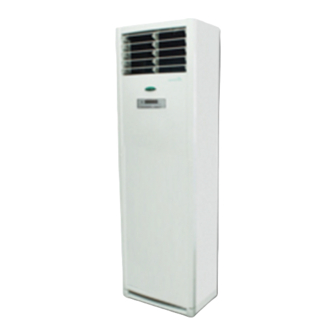

FLOOR-MOUNTED INVERTER AIR CONDITIONER
R
ead This Manual
Inside you will find many helpful hints on how
to use and maintain your air conditioner properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your air conditioner. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kolin KLM-IF70-3D3M
Summary of Contents for Kolin KLM-IF70-3D3M
- Page 1 USER MANUAL KLM-IF70-3D3M FLOOR-MOUNTED INVERTER AIR CONDITIONER ead This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventative care on your part can save you a great deal of time and money over the life of your air conditioner.
-
Page 2: Table Of Contents
CONTENTS SOCIABLE REMARK Sociable remark..........................2 SAFETY PRECAUTIONS Warning ............................3 Caution ............................4 Prior to operation ........................5 OPERATING INSTRUCTIONS Product overview ...........................6 Unit control panel ..........................7 Airflow direction control .........................10 Operation tips ..........................11 CARE AND MAINTENANCE Cleaning the indoor unit .......................12 Cleaning the air outlet ........................12 Cleaning the lower front panel and air filter .................13 TROUBLESHOOTING TIPS... -
Page 3: Sociable Remark
SOCIABLE REMARK When using this unit in the European countries, the following informations must be followed: DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary. It is prohibited to dispose of this appliance in domestic household waste. For disposal, there are several possibilities: A) The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to the user. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness is classified by the following indications. This symbol indicates the possibility of death or serious injury. -
Page 5: Caution
SAFETY PRECAUTIONS CAUTION When the air filter is to be Do not clean the air Ventilate the room well removed, do not touch the conditioner with water. when used together with a stove, etc. metal parts of the unit. It may cause an injury. An oxygen shortage Water may enter the unit and may occur. -
Page 6: Prior To Operation
SAFETY PRECAUTIONS Prior to operation 1. Contact an installation specialist for installation. 2. Make sure the unit is grounded efficiently. 3. Do not use a damaged or non-standard power cord. 4. Do not share the same outlet with other appliances. 5. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Product Overview Indoor unit Outdoor unit Air outlet Connection cable Operation panel Connection pipe Horizontal airflow control louver Cut-off valve Vertical airflow control louver Fan hood Front panel (upper and lower) Air inlet Drain pipe TEST RUN LOCK ASSITANT ADJUST ON/OFF... -
Page 8: Unit Control Panel
OPERATING INSTRUCTIONS Unit Control Panel Room Temp/Set Temp /Set Timer display TEST RUN TIMER ON TIMER OFF LOCK AUXILIARY ADJUST ON/OFF MODE FAN SPEED FUNCTION Indicators Swing operation display Auto operation display Sleep operation display Cooling operation display Turbo operation display On timer operation display TIMER ON Dry operation display... - Page 9 OPERATING INSTRUCTIONS TIMER ON TIMER OFF TIMER OFF TIMER ON...
- Page 10 OPERATING INSTRUCTIONS Once the desired feature is established, press the AUXILIARTY FUNCTION button again to register . NOTE: The above illustration is for explanation purpose only. The features are different depending on models. Relative indicator lights up under the different mode settings: Left/Right airflow: Enables you to set the desired horizontal airflow direction.
-
Page 11: Airflow Direction Control
OPERATING INSTRUCTIONS Airflow Direction Control Horizontal Airflow Direction(AUTO) The Left/Right(Horizontal Airflow) can be adjusted by using the remote control or unit control. Press the"AUXILIARY FUNCTION" button on the unit control panel, then press the ADJUST " "and " " button to select the " "feature and the ouvers will swing left and right. -
Page 12: Operation Tips
OPERATING INSTRUCTIONS Operation Tips Operation Tips The following events may occur during normal operation. 1. Protection of the air conditioner. Compressor protection The compressor can't restart for 3 minutes after it stops. Anti-cold air (Cooling and heating models only) The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one of the following three situations and the set temperature has not been reached. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE 8. Heating mode (For cooling and heating models only) The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit during heating operation. When the outdoor temperature falls, heat drawn in by the air conditioner decreases accordingly. -
Page 14: Cleaning The Lower Front Panel And Air Filter
CARE AND MAINTENANCE Cleaning the Lower front panel and Air Filter: If the air filter becomes clogged, the performance will decrease and electricity will be wasted. The air filter should be checked and cleaned about once every 2 weeks to maintain optimal performance of the air conditioner. -
Page 15: Troubleshooting Tips
TROUBLESHOOTING TIPS Before calling for service, please review the following list of common problems and solutions. Solutions Problem Possible Cause Wait for power restoring Power failure Air conditioner Switch on the main power switch The power supply is disconnected. does not operate at all Change the fuse The power fuse is blown. - Page 16 show on the LCD of the indoor unit when the unit is in the normal operation.The three icons imply the three function respectively. The icon implies the remote control function. implies the defrosting function. The icon implies the forced cooling function. The icon CAUTION: If the supply cord of this appliance is damaged, replacement work shall be performed by authorized...
- Page 17 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. QS001-BPU 16122200000018 KPII 20161219...
